Material: FR4-S1000-2 Number of layers: 10 layers Process: Immersion Gold Minimum drilling: 0.25mm Minimum line width: 0.1mm Minimum line space: 0.1mm Features: high-level PCB, impedance board, via plug holes are not allowed to redden
+86 0755-81772911

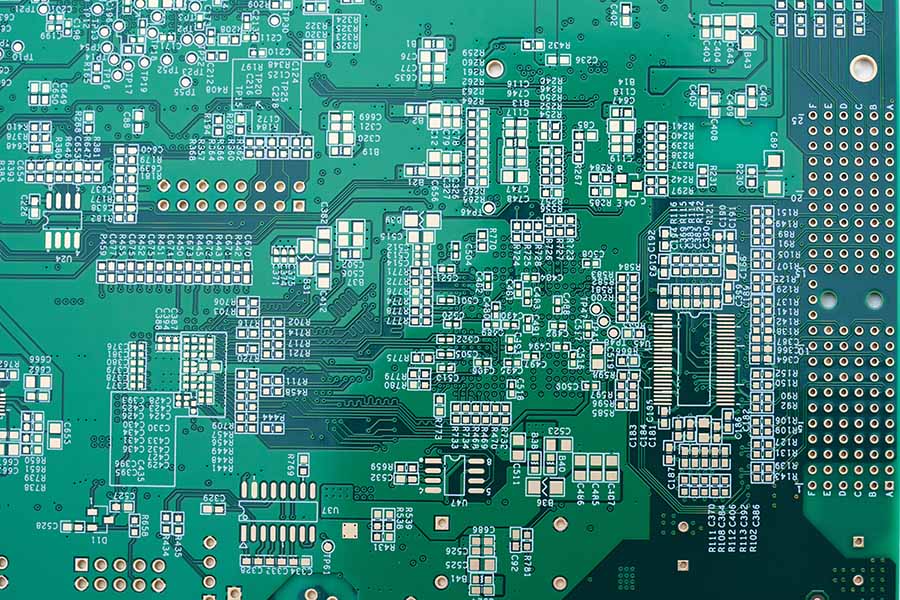

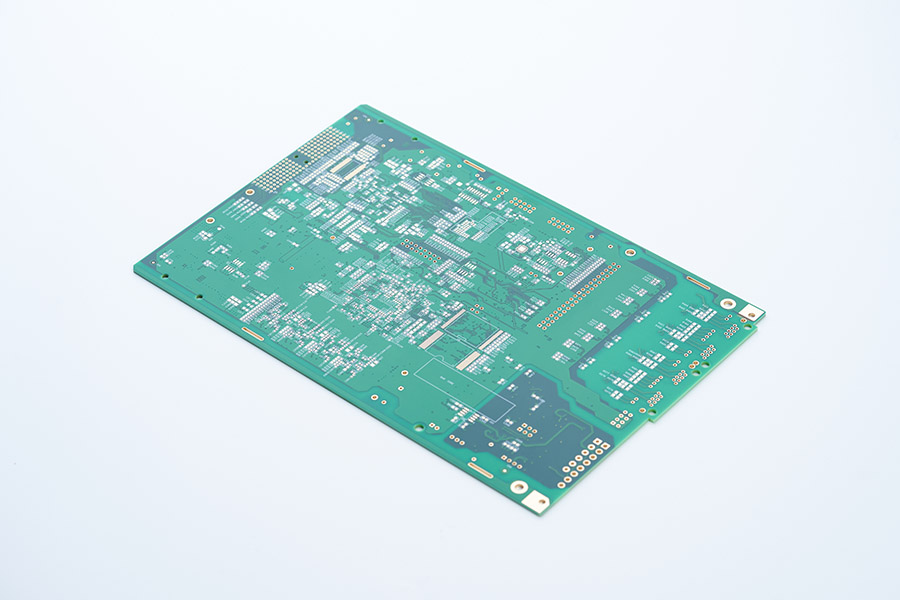

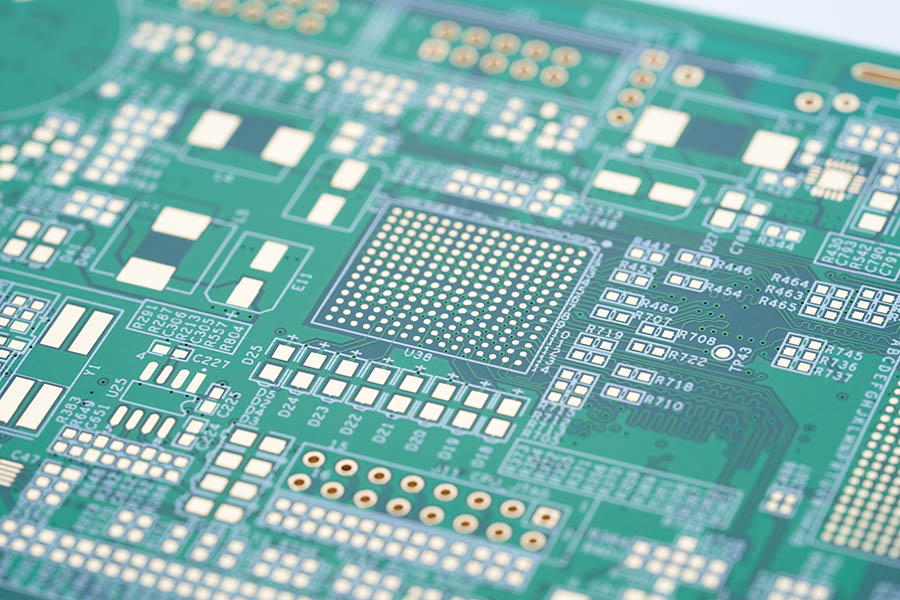

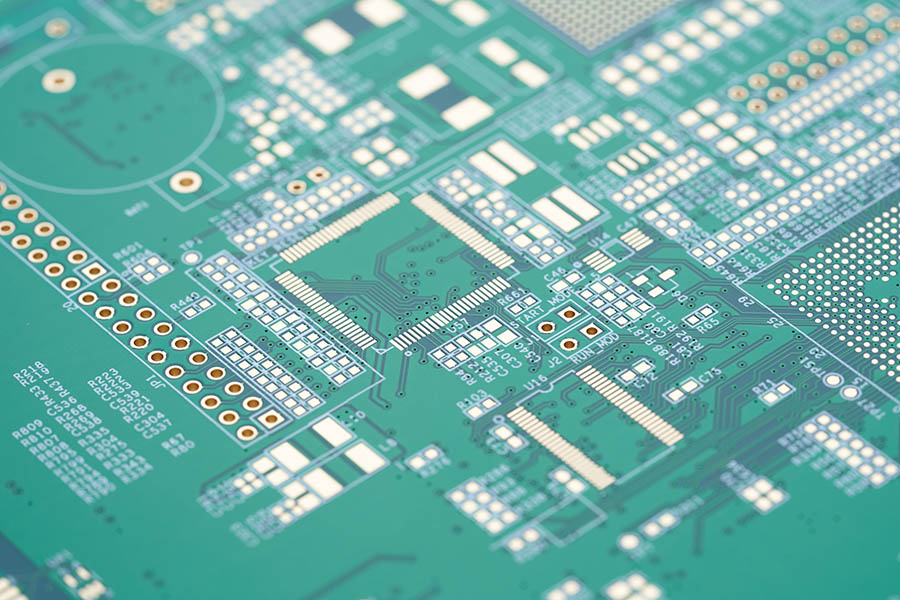

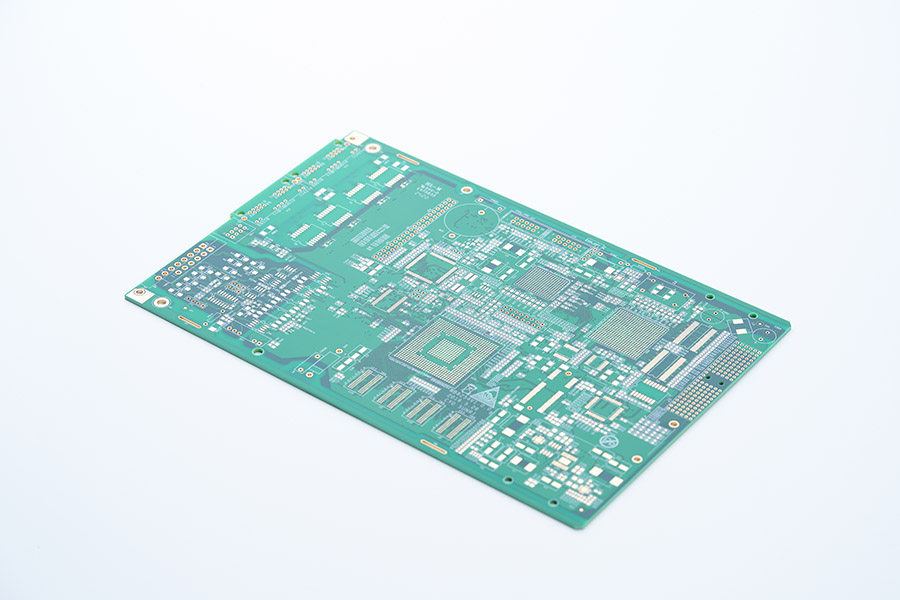

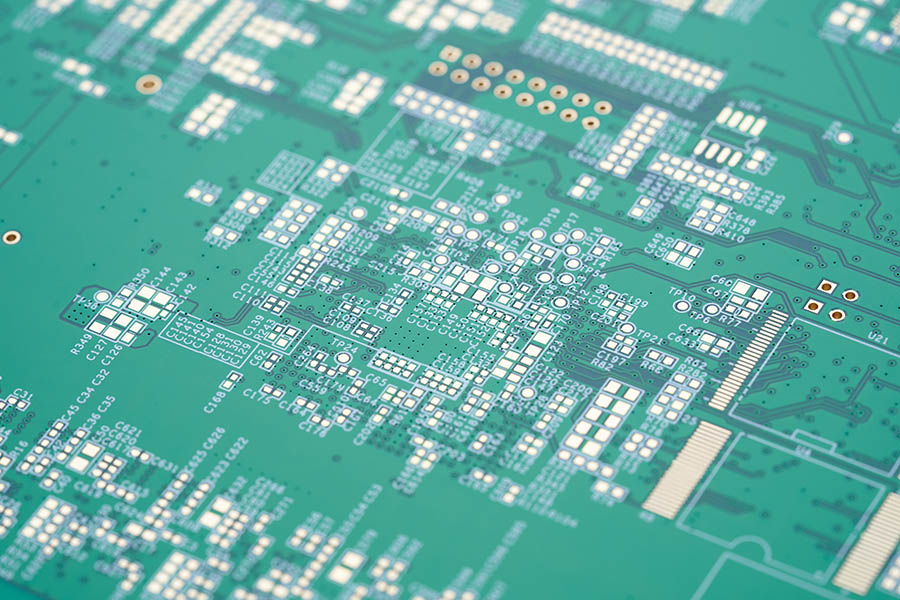

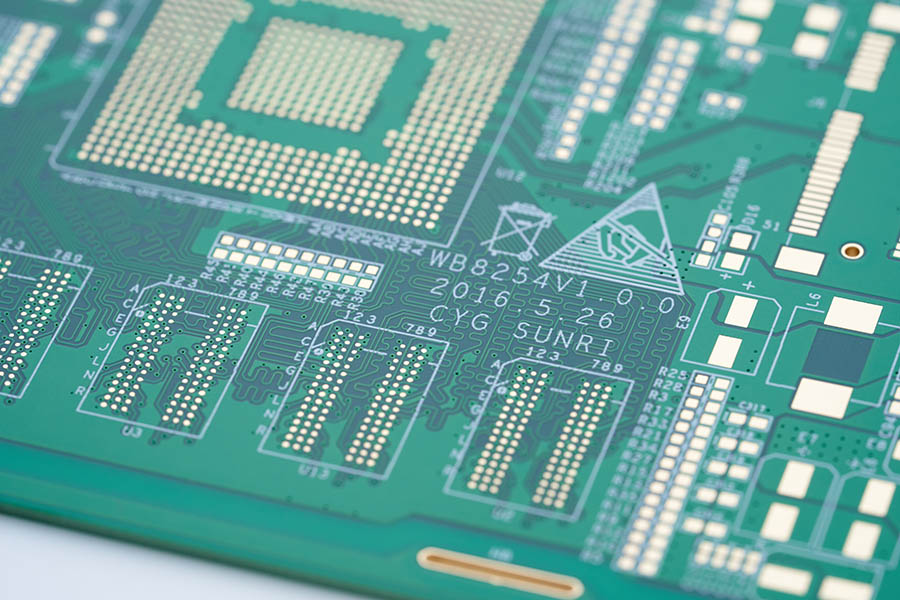

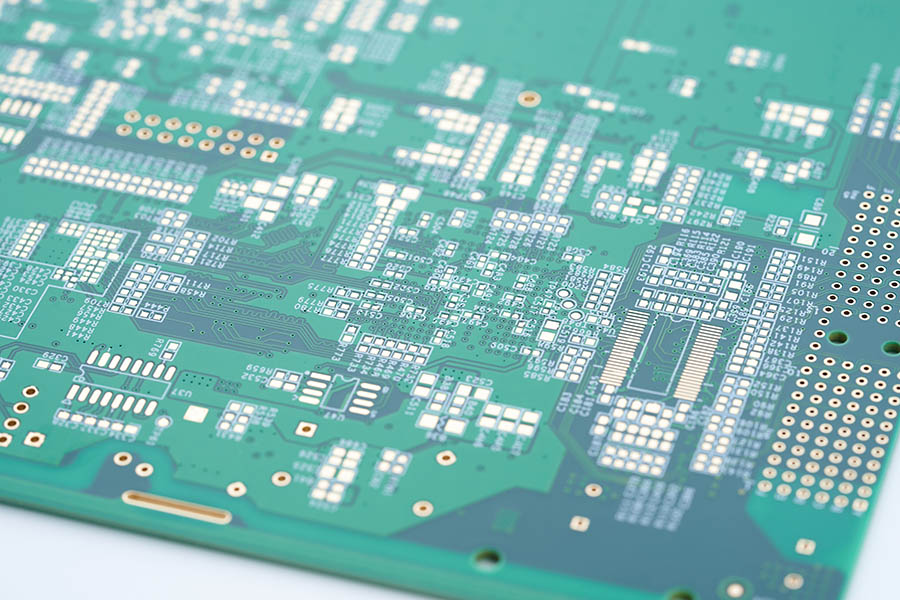

| 10-layer motherboard PCB | |||
| Substrate: | FR4 | Layers: | 10 layers |
| Dielectric constant: | 4.3 | Board thickness: | 1.6mm |
| Thickness of outer copper foil: | 1oz | hickness of inner copper foil: | 1oz |
| Surface treatment method: | Immersion gold | Minimum hole diameter: | 0.25mm |
| Minimum line width: | 0.1mm | Minimum line space: | 0.1mm |
| Application field | Industrial control motherboard | Features: | High-level PCB, impedance board, via plug holes are not allowed to redden |
![950a9c3058f04582bb87b28364012690_22[1].jpg](/upload/default/20210204/918bf4895bc4a2838d9f61e9f3ce3c56.jpg "950a9c3058f04582bb87b28364012690_22[1].jpg")
![950a9c3058f04582bb87b28364012690_20[1].jpg](/upload/default/20210204/4e135eb51bc9729213a08ebd5b755290.jpg "950a9c3058f04582bb87b28364012690_20[1].jpg")
![950a9c3058f04582bb87b28364012690_18[1].jpg](/upload/default/20210204/f459265e311adb90db75e8aec5b80334.jpg "950a9c3058f04582bb87b28364012690_18[1].jpg")
![950a9c3058f04582bb87b28364012690_16[1].jpg](/upload/default/20210204/2d48352093c4cc5d33a71612741b7e4e.jpg "950a9c3058f04582bb87b28364012690_16[1].jpg")
![950a9c3058f04582bb87b28364012690_14[1].jpg](/upload/default/20210204/ba7bb00dbb3517d016c6495407636904.jpg "950a9c3058f04582bb87b28364012690_14[1].jpg")
![950a9c3058f04582bb87b28364012690_12[1].jpg](/upload/default/20210204/b0e29874c4cf0b57c6e0d8696c8944db.jpg "950a9c3058f04582bb87b28364012690_12[1].jpg")
![950a9c3058f04582bb87b28364012690_10[1].jpg](/upload/default/20210204/916de2cba72e997b7b7d872a5de48b09.jpg "950a9c3058f04582bb87b28364012690_10[1].jpg")
![950a9c3058f04582bb87b28364012690_8[1].jpg](/upload/default/20210204/1768fec6a7edafae73ffe010026b65a9.jpg "950a9c3058f04582bb87b28364012690_8[1].jpg")
Widely used in: communications, consumer electronics, industrial control, security, automobiles, power supplies, smart home, medical, military and other industries.
