Material: FR4 Number of layers: Four layers Process: Immersion gold Minimum drilling: 0.25mm Minimum line width: 0.127mm Minimum line space: 0.127mm Features: Four-layer impedance board, non-inductive scratching is not accepted, strict appearance requirements
+86 0755-81772911

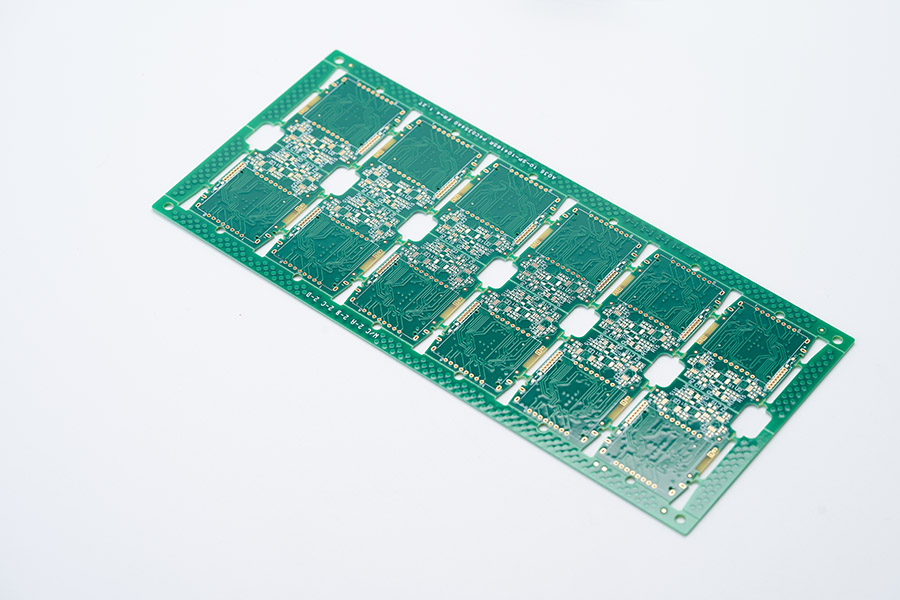

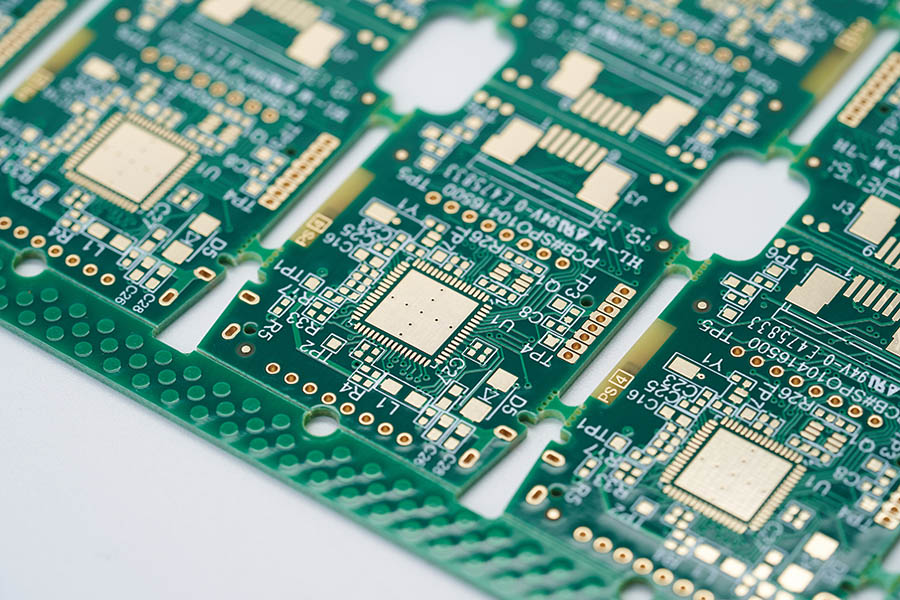

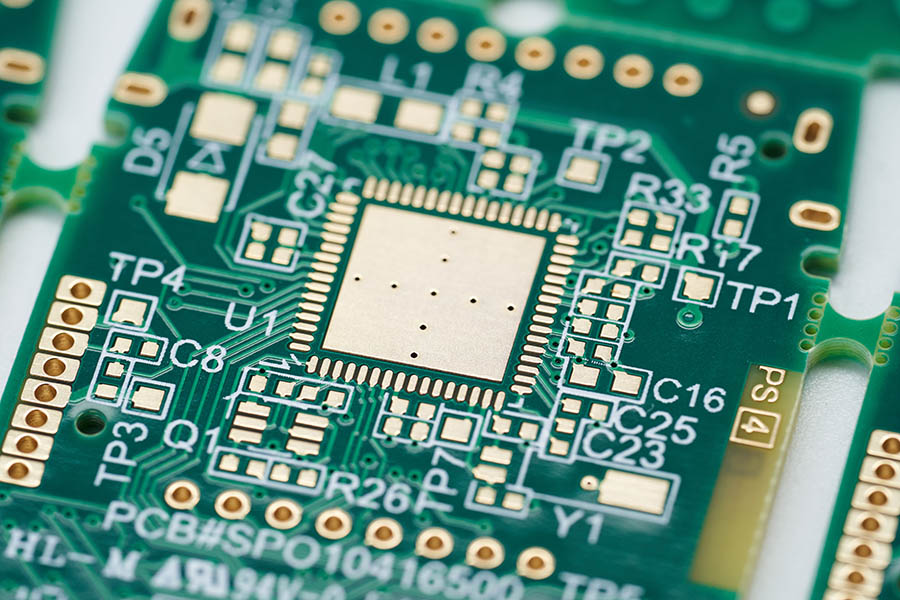

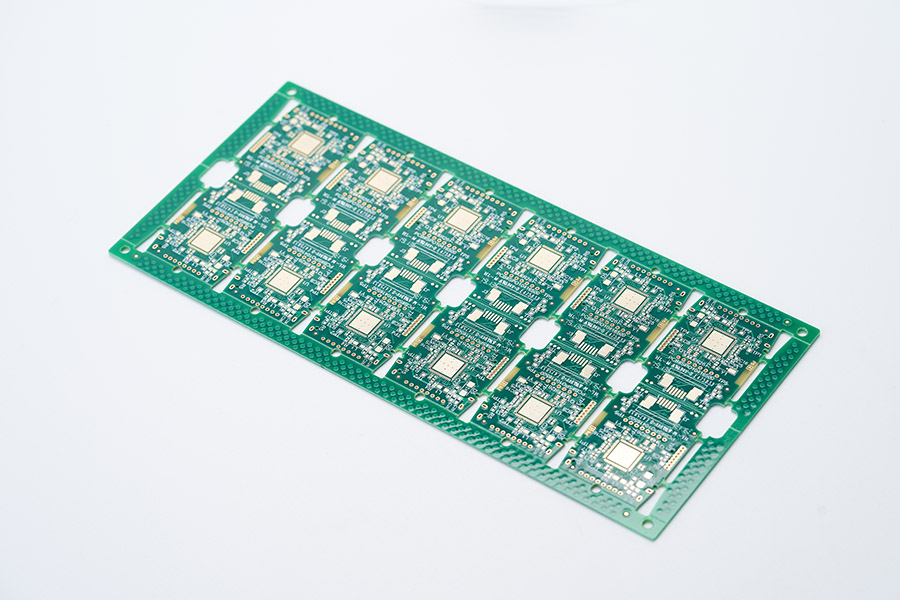

| Multilayer Immersion Gold Circuit Board | |||
| Substrate: | FR4 | Layers: | 4 layers |
| Dielectric constant: | 4.3 | Board thickness: | 1.6mm |
| Thickness of outer copper foil: | 1oz | hickness of inner copper foil: | 1oz |
| Surface treatment method: | Immersion gold | Minimum hole diameter: | 0.25mm |
| Minimum line width: | 0.127mm | Minimum line space: | 0.127mm |
| Application field | Industrial control | Features: | Four-layer impedance board, non-inductive scratching is not accepted, and strict appearance requirements |
![a87299f7f2c243a3aa9e20b0d28519b6_18[1].jpg](/upload/default/20210201/b96a891b058ba3a65f8fdc0a0a67d258.jpg "a87299f7f2c243a3aa9e20b0d28519b6_18[1].jpg")
![a87299f7f2c243a3aa9e20b0d28519b6_16[1].jpg](/upload/default/20210201/42b4996545b3067959537cd8a0e109ed.jpg "a87299f7f2c243a3aa9e20b0d28519b6_16[1].jpg")
![a87299f7f2c243a3aa9e20b0d28519b6_14[1].jpg](/upload/default/20210201/fc07ab37de3cd19eaba340e933de298d.jpg "a87299f7f2c243a3aa9e20b0d28519b6_14[1].jpg")
![a87299f7f2c243a3aa9e20b0d28519b6_12[1].jpg](/upload/default/20210201/be70cd81e2812343a8b64183420f754b.jpg "a87299f7f2c243a3aa9e20b0d28519b6_12[1].jpg")
![a87299f7f2c243a3aa9e20b0d28519b6_8[1].jpg](/upload/default/20210201/e9004d18d28e7c8a4b5ff9332be72e2f.jpg "a87299f7f2c243a3aa9e20b0d28519b6_8[1].jpg")
Widely used in: communications, consumer electronics, industrial control, security, automobiles, power supplies, smart home, medical, military and other industries.
