Material: FR4 Number of layers: four layers Process: Immersion Gold Minimum drilling: 0.2mm Minimum line width: 0.1mm Minimum line spacing: 0.1mm Features: Four-layer impedance board, gold finger, card slot tolerance +/-0.05mm, no inductive scratching is not accepted
+86 0755-81772911

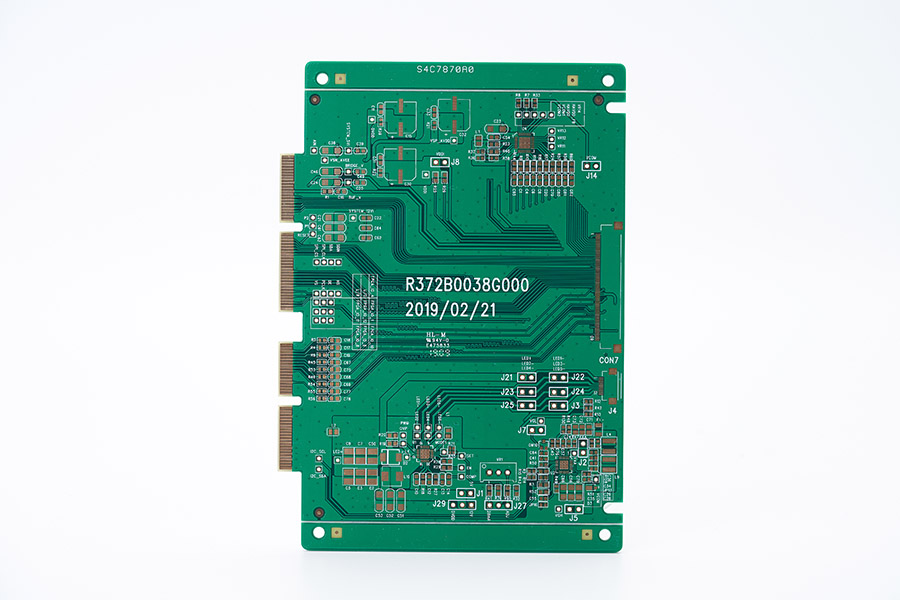

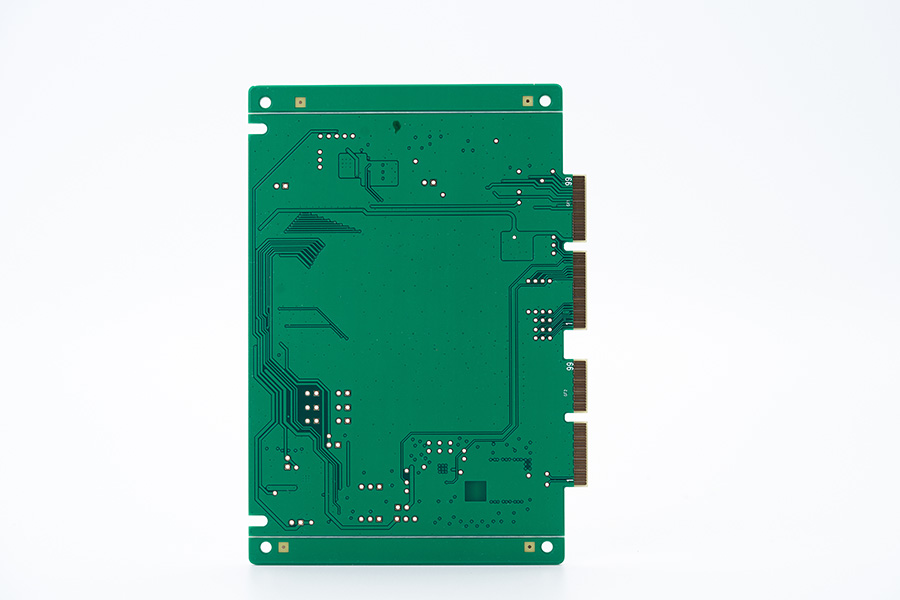

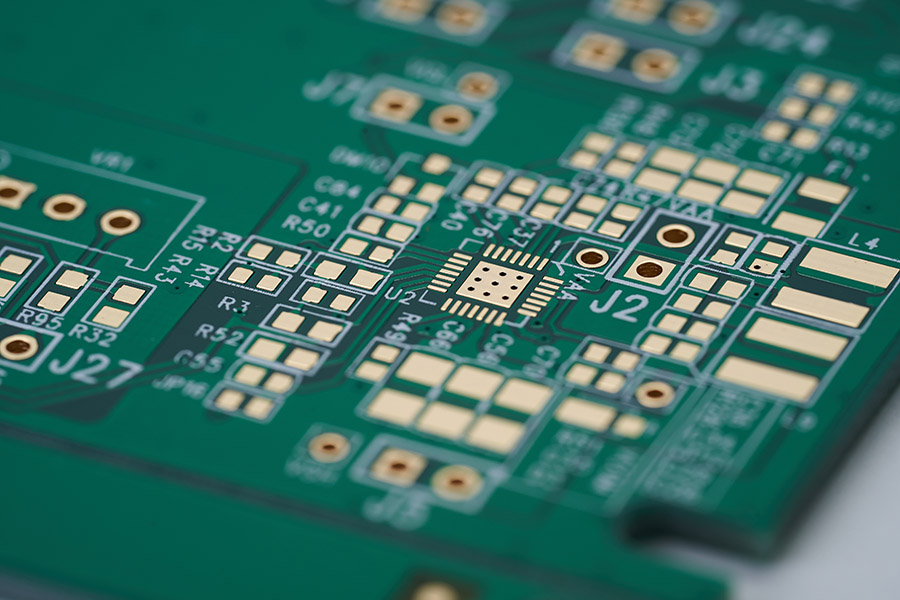

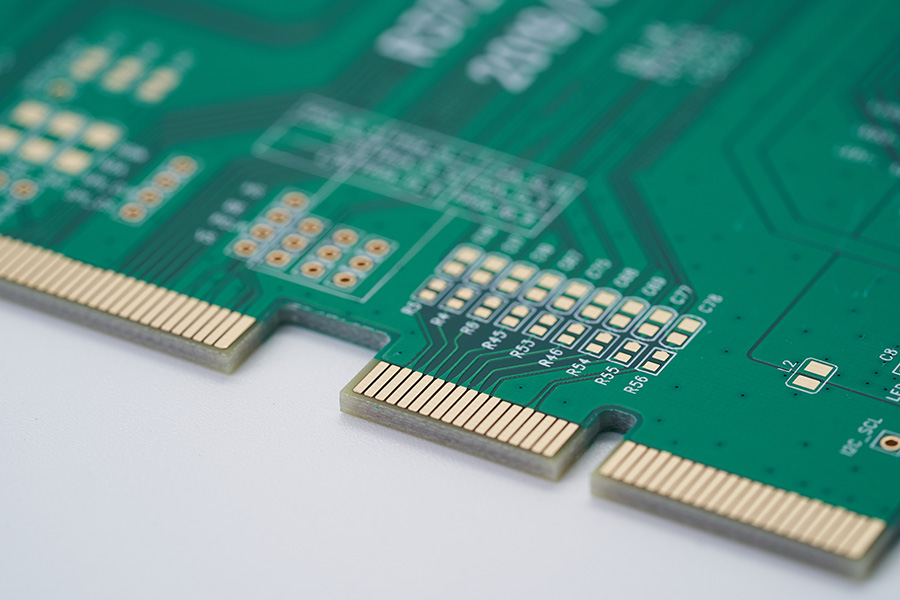

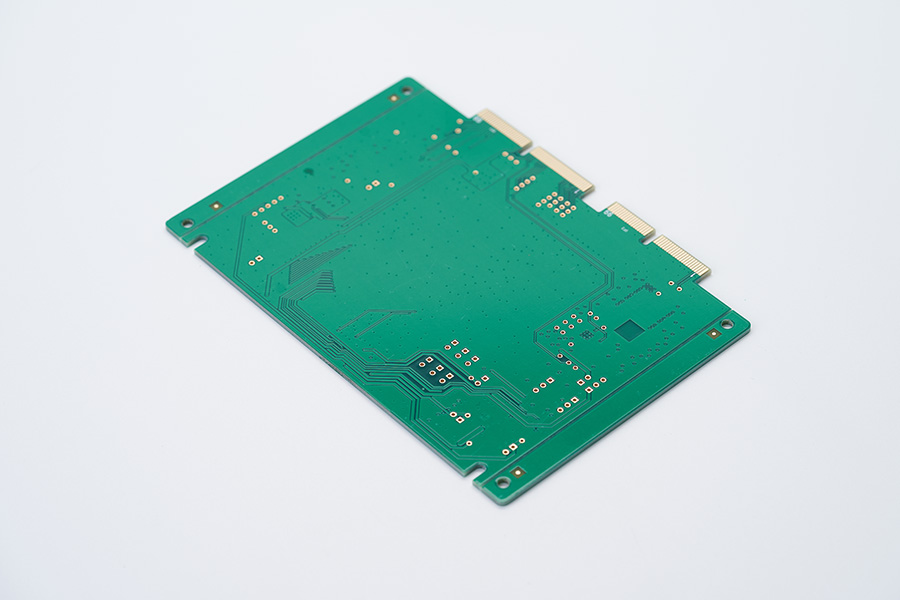

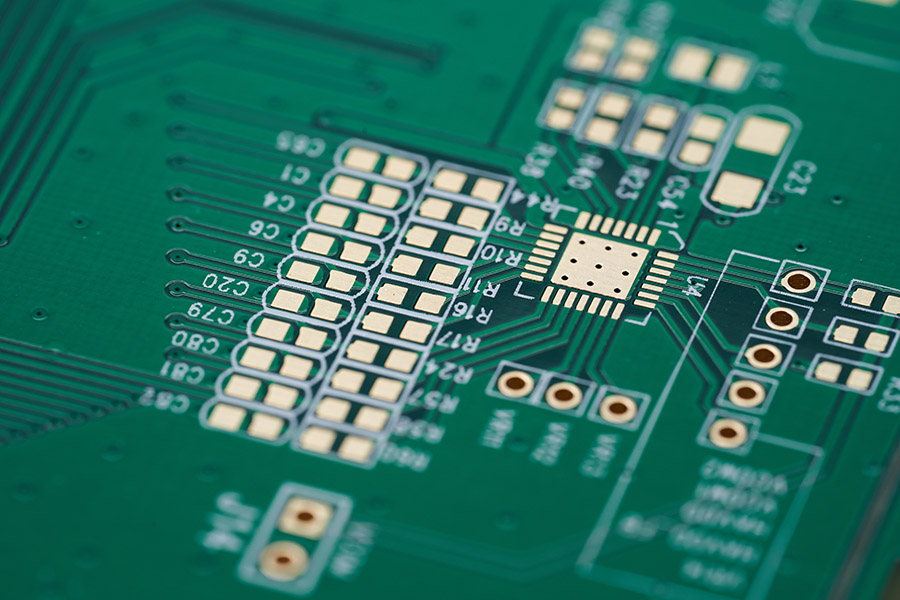

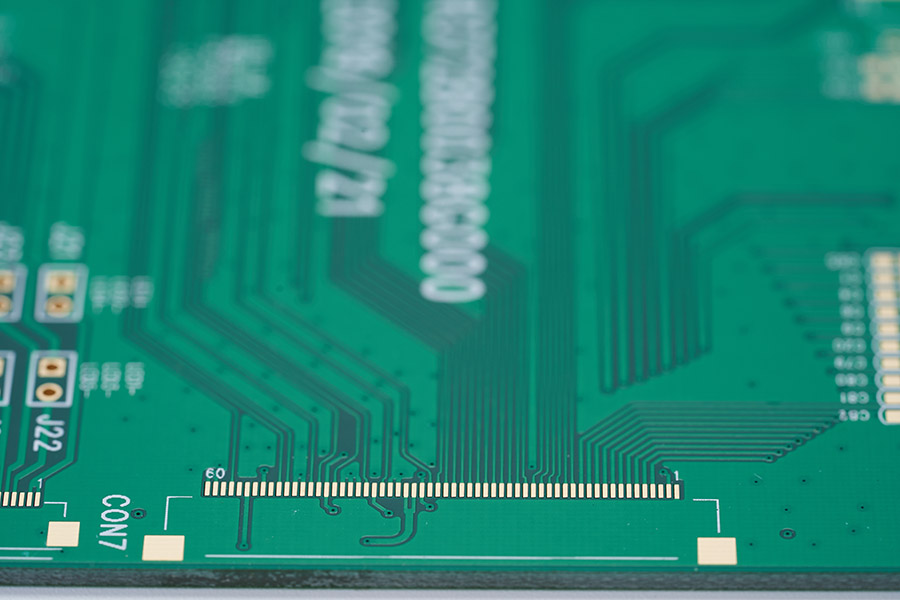

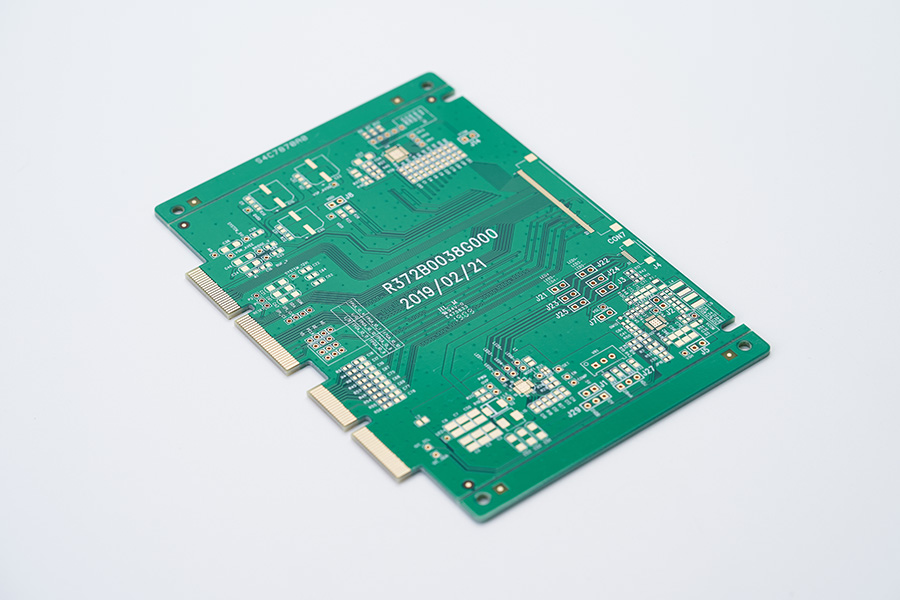

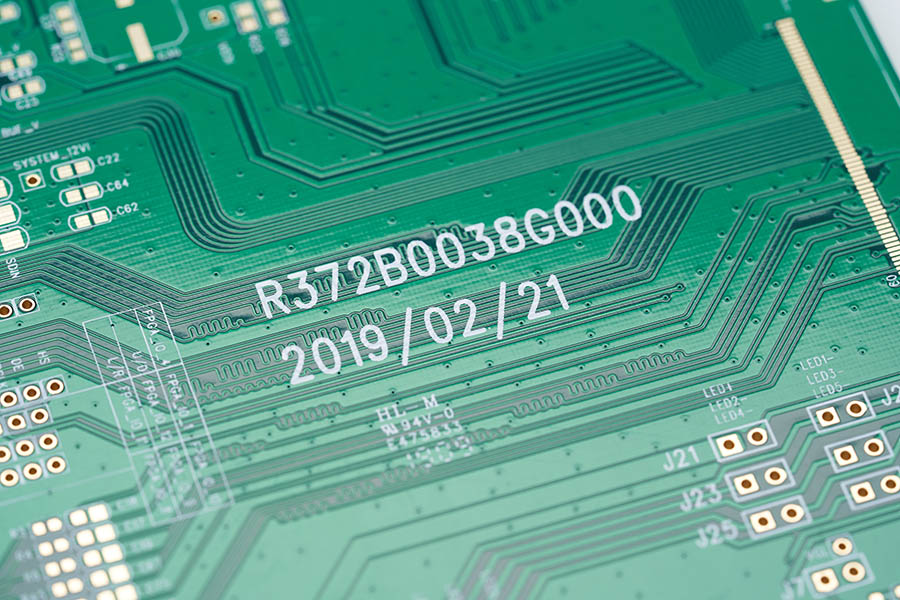

| Four-layer gold finger circuit board | |||
| Substrate: | FR4 | Layers: | 4 layers |
| Dielectric constant: | 4.3 | Board thickness: | 1.6mm |
| Thickness of outer copper foil: | 1oz | hickness of inner copper foil: | 1oz |
| Surface treatment method: | Immersion gold | Minimum hole diameter: | 0.2mm |
| Minimum line width: | 0.1mm | Minimum line space: | 0.1mm |
| Application field | Industrial control | Features: | Four-layer impedance board, gold finger, card slot tolerance +/-0.05mm, non-inductive scratching is not accepted |
![9ee6b15166b746b0bbb0ad439191eb9a_24[1].jpg](/upload/default/20210201/9017a8119fdd23be16d6ed61bbdc514c.jpg "9ee6b15166b746b0bbb0ad439191eb9a_24[1].jpg")
![9ee6b15166b746b0bbb0ad439191eb9a_22[1].jpg](/upload/default/20210201/55a63b24aad6df136d79690edeb56eb7.jpg "9ee6b15166b746b0bbb0ad439191eb9a_22[1].jpg")
![9ee6b15166b746b0bbb0ad439191eb9a_20[1].jpg](/upload/default/20210201/74871ab9ddd8a0c9515be7f314e52312.jpg "9ee6b15166b746b0bbb0ad439191eb9a_20[1].jpg")
![9ee6b15166b746b0bbb0ad439191eb9a_18[1].jpg](/upload/default/20210201/ad9efd5dfaead14c662d1913a39f60c9.jpg "9ee6b15166b746b0bbb0ad439191eb9a_18[1].jpg")
![9ee6b15166b746b0bbb0ad439191eb9a_16[1].jpg](/upload/default/20210201/a9bcb9369f13a6a769f4f2d6ed966703.jpg "9ee6b15166b746b0bbb0ad439191eb9a_16[1].jpg")
![9ee6b15166b746b0bbb0ad439191eb9a_14[1].jpg](/upload/default/20210201/f61ad2d9d53e877304605adf29e77d27.jpg "9ee6b15166b746b0bbb0ad439191eb9a_14[1].jpg")
![9ee6b15166b746b0bbb0ad439191eb9a_12[1].jpg](/upload/default/20210201/399483ca8c2009f66f7394ced2608cd1.jpg "9ee6b15166b746b0bbb0ad439191eb9a_12[1].jpg")
![9ee6b15166b746b0bbb0ad439191eb9a_10[1].jpg](/upload/default/20210201/f031fa6884dc976223fe5d20e2baddc4.jpg "9ee6b15166b746b0bbb0ad439191eb9a_10[1].jpg")
![9ee6b15166b746b0bbb0ad439191eb9a_8[1].jpg](/upload/default/20210201/6d68343294c49d0bf3348234e1a3a416.jpg "9ee6b15166b746b0bbb0ad439191eb9a_8[1].jpg")
Widely used in: communications, consumer electronics, industrial control, security, automobiles, power supplies, smart home, medical, military and other industries.
