Material: FR4-TG170 Number of layers: 8 layers Process: Immersion Gold Minimum Drilling: 0.2mm Minimum line width: 0.08mm Minimum line space: 0.08mm Features: resin plug hole, 3mil BGA clamping line, impedance board, gold finger board
+86 0755-81772911

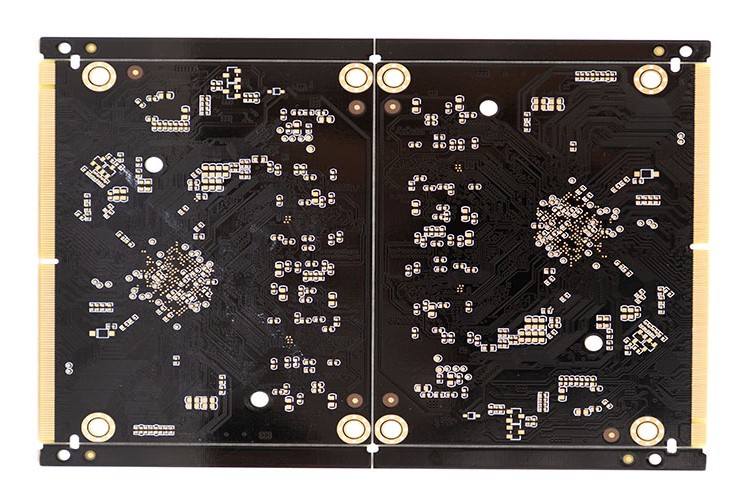

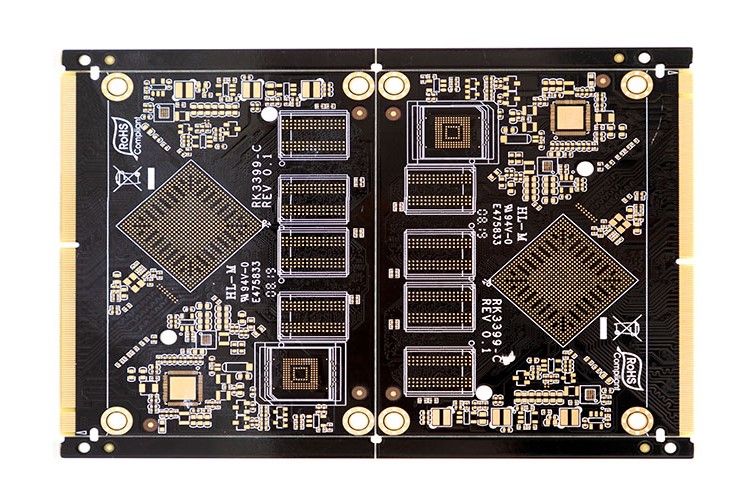

| High precision impedance PCB | |||
| Substrate: | FR4 | Layers: | 8 layers |
| Dielectric constant: | 4.3 | Board thickness: | 1.0mm |
| Thickness of outer copper foil: | 1oz | hickness of inner copper foil: | 1oz |
| Surface treatment method: | Immersion gold | Minimum hole diameter: | 0.2mm |
| Minimum line width: | 0.8mm | Minimum line space: | 0.8mm |
| Application field | financial equipment | Features: | Resin plug hole, BGA clamping line 3mil, impedance board, gold finger board |
![399c3ce2e3574f76815b951c89288a24_83[1].jpg](/upload/default/20210201/1f5a4b479f71eb5fc5aa46b5850f1c64.jpg "399c3ce2e3574f76815b951c89288a24_83[1].jpg")
![399c3ce2e3574f76815b951c89288a24_81[1].jpg](/upload/default/20210201/7d441045c7e491c623151e562e3d6005.jpg "399c3ce2e3574f76815b951c89288a24_81[1].jpg")
Widely used in: communications, consumer electronics, industrial control, security, automobiles, power supplies, smart home, medical, military and other industries.
