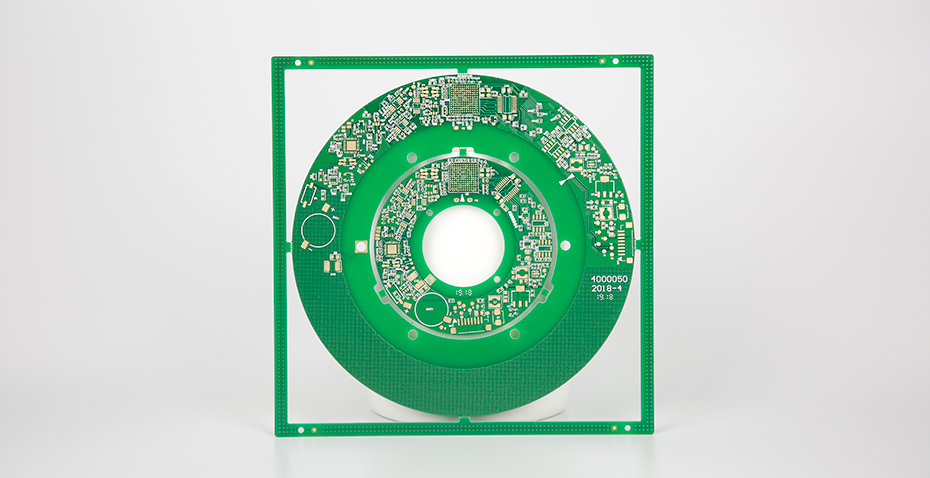

Countersink circuit board

Dielectric constant: 4.2 Thickness of outer copper foil: 1oz Inner layer copper foil thickness: 1oz Surface treatment: Immersion gold Minimum hole diameter: 0.15mm Minimum line width: 0.1MM Minimum line space: 0.1MM

Advisory

National Hotline

+86 0755-81772911

Countersink circuit board
Substrate:	FR4 Shengyi	Dielectric constant:	4.2
Thickness of outer copper foil:	1oz	Inner copper foil thickness:	1oz
Surface treatment method:	Immersion gold	Minimum hole diameter:	0.15mm
Minimum line width:	0.1mm	Minimum line space:	0.1mm
Gold thickness:	1U"	Special requirements:	blind hole,The smallest hole is 0.15mm, a countersunk hole is required
Warm reminder: Due to the particularity of the product, customized products will not be returned, please understand!

Widely used in: communications, consumer electronics, industrial control, security, automobiles, power supplies, smart home, medical, military and other industries.
