Material: FR4 Number of layers: four layers Process: Lead-free spray tin Minimum drilling: 0.3mm Minimum line width: 0.127mm Minimum line space: 0.2mm Features: high reliability, the appearance does not accept non-sense scratching
+86 0755-81772911

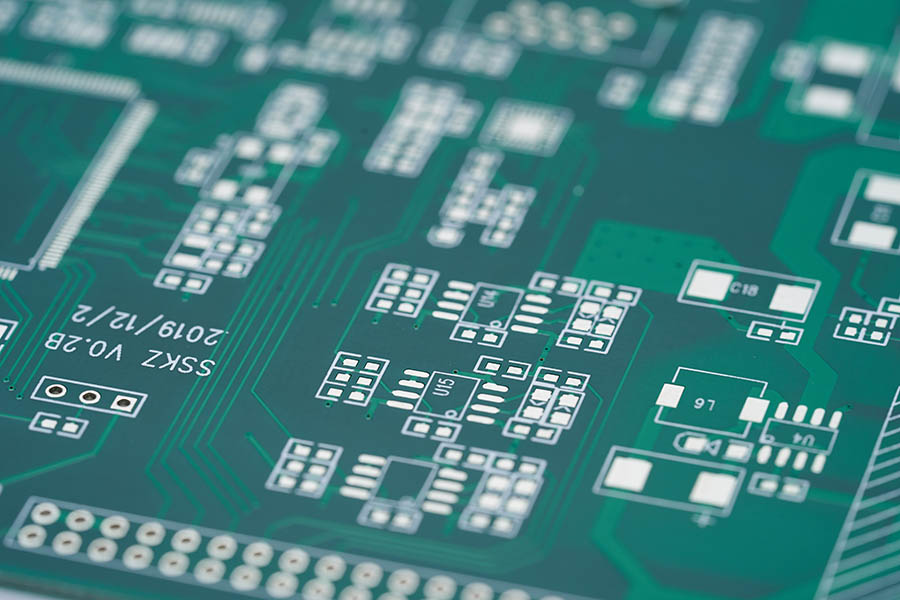

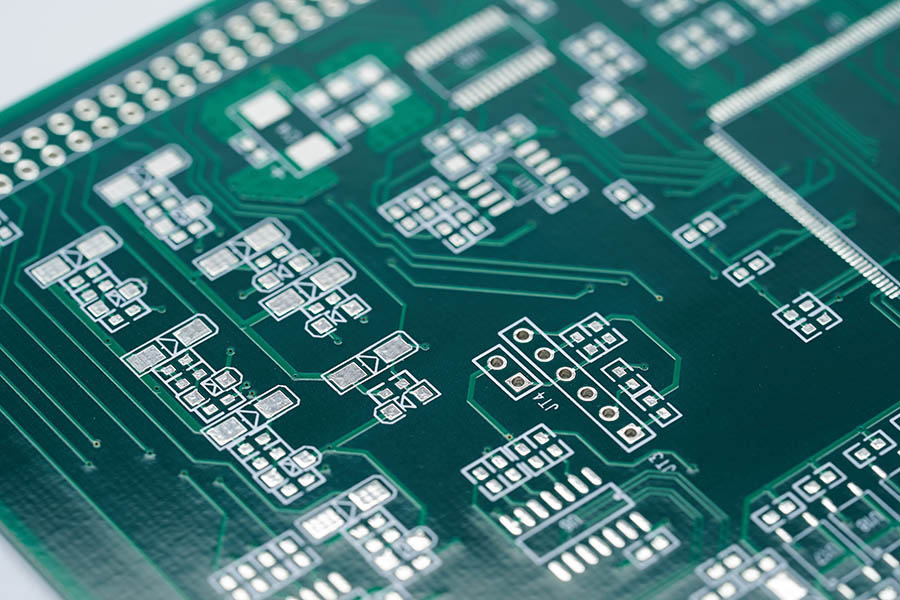

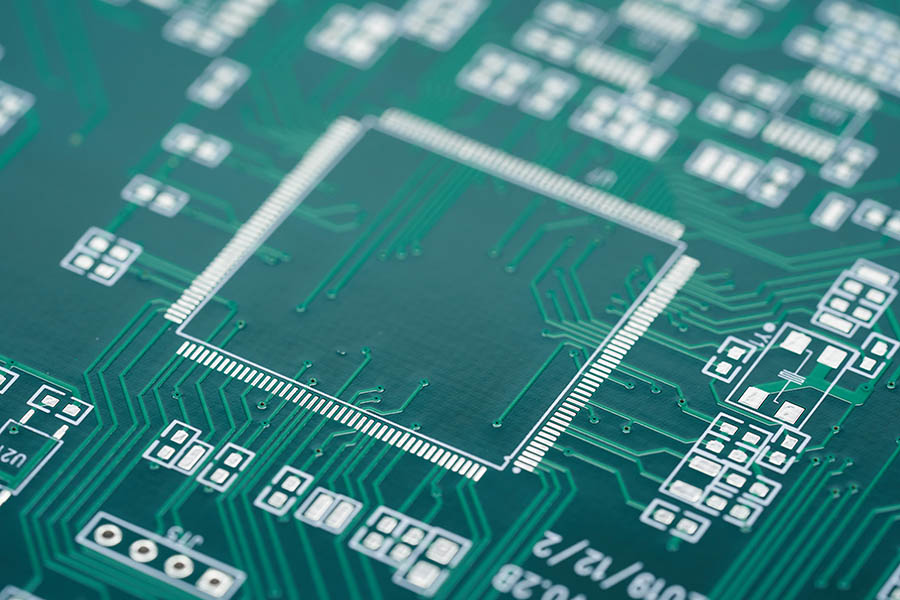

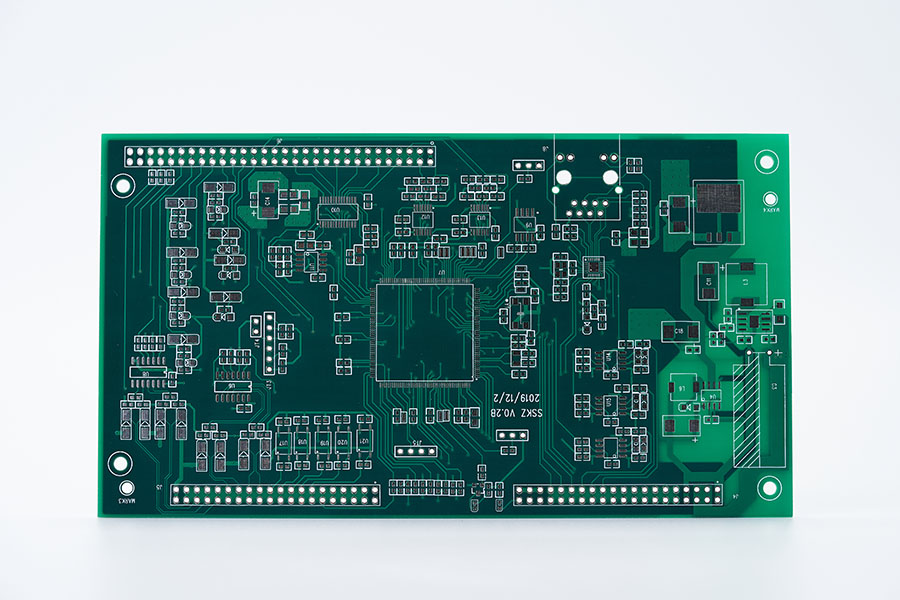

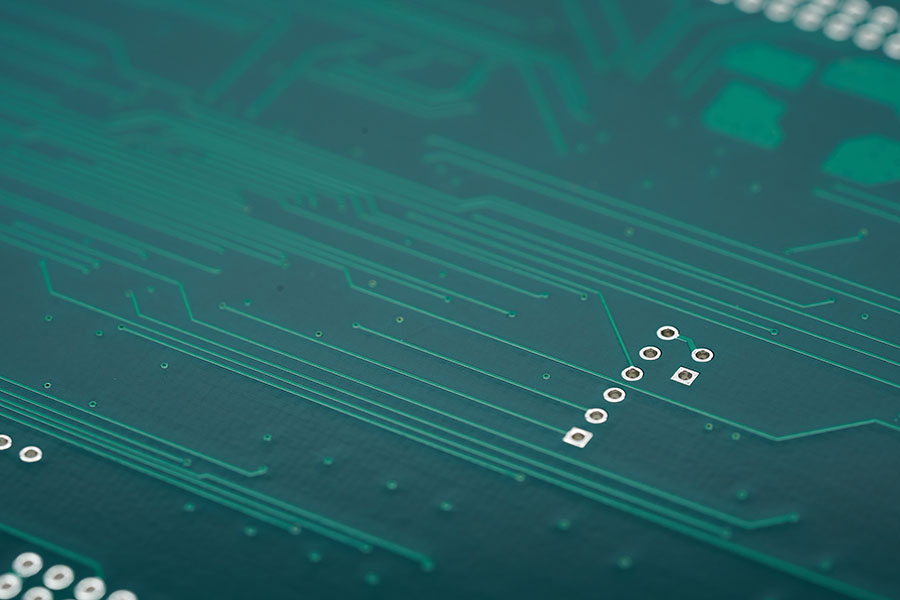

| Four-layer circuit board | |||
| Substrate: | FR4 | Layers: | 4 layers |
| Dielectric constant: | 4.3 | Board thickness: | 1.6mm |
| Thickness of outer copper foil: | 1oz | Inner copper foil thickness: | 1oz |
| Surface treatment method: | lead-free spray tin | Minimum hole diameter: | 0.3mm |
| Minimum line width: | 0.127mm | Minimum line space: | 0.2mm |
| Application area: | Industrial control | Features: | High reliability, the appearance does not accept non-sense scratching |
Widely used in: communications, consumer electronics, industrial control, security, automobiles, power supplies, smart home, medical, military and other industries.
