Material: FR4 Number of layers: 10 layers Process: Immersion Gold Minimum drilling: 0.3mm Minimum line width: 0.127mm Minimum line space: 0.127mm Features: 10-layer controller main board circuit board with many independent holes
+86 0755-81772911

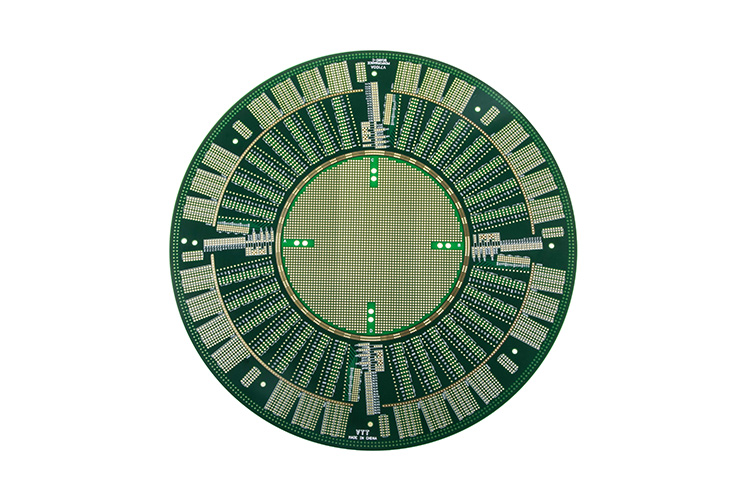

| Control motherboard circuit board | |||
| Substrate: | FR4 | Layers: | 10 layers |
| Dielectric constant: | 4.3 | Board thickness: | 3.0mm |
| Thickness of outer copper foil: | 1oz | Inner copper foil thickness: | 1oz |
| Surface treatment method: | Immersion gold | Minimum hole diameter: | 0.3mm |
| Minimum line width: | 0.127mm | Minimum line space: | 0.127mm |
| Application area: | Wind turbine control board | Features: | 10-layer controller main board circuit board with many independent holes |
| Warm reminder: Due to the particularity of the product, customized products will not be returned, please understand! | |||
![2946a4217494442ea7c5cdd2443e6b9b_66[1].jpg](/upload/default/20210202/8441557d60142fc3a31c48de9e2ce2d8.jpg "2946a4217494442ea7c5cdd2443e6b9b_66[1].jpg")
Widely used in: communications, consumer electronics, industrial control, security, automobiles, power supplies, smart home, medical, military and other industries.
