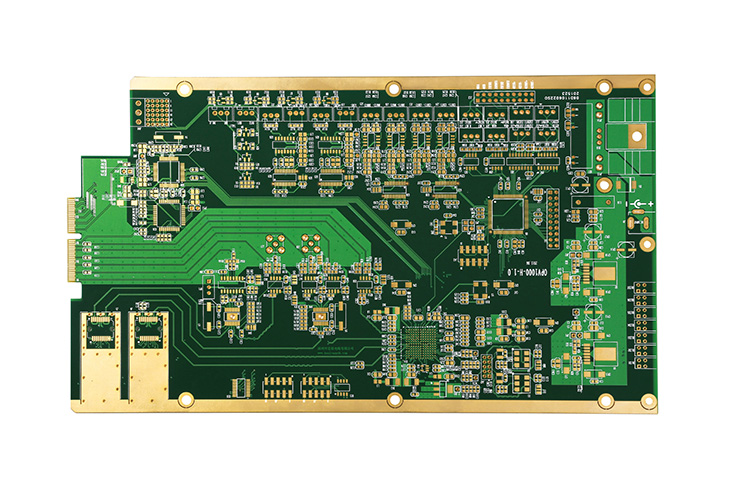

Medical high stability PCB board

Substrate: FR4 Shengyi S1000-2 Number of layers: 12 layers Dielectric constant: 4.2 Board thickness: 1.6MM Thickness of outer copper foil: 1oz Inner copper foil thickness: 1oz Surface treatment method: Immersion gold

Advisory

National Hotline

+86 0755-81772911

Medical high stability PCB board
Substrate:	FR4 Shengyi S1000-2	Layers:	12 layers
Dielectric constant:	4.2	Board thickness:	1.6mm
Thickness of outer copper foil:	1oz	Inner copper foil thickness:	1oz
Surface treatment method:	Immersion gold	Minimum hole diameter:	0.2mm
Minimum line width:	0.1mm	Minimum line space:	0.1mm
Gold thickness:	2U"	Impedance requirements:	L1, L3, L5 100 ohms
Warm reminder: Due to the particularity of the product, customized products will not be returned, please understand!

Widely used in: communications, consumer electronics, industrial control, security, automobiles, power supplies, smart home, medical, military and other industries.
