Material: FR4 Number of layers: 2 layers Process: Immersion Gold Minimum drilling: 0.25mm Minimum line width: 0.1mm Minimum line space: 0.1mm Features: the row holes retain the solder mask, the appearance does not accept scratches, dumb black oil
+86 0755-81772911

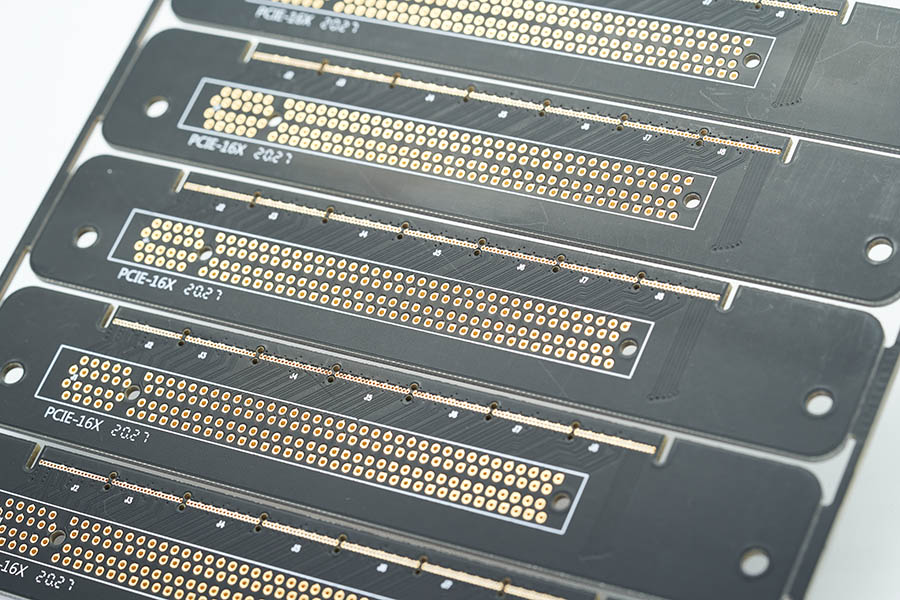

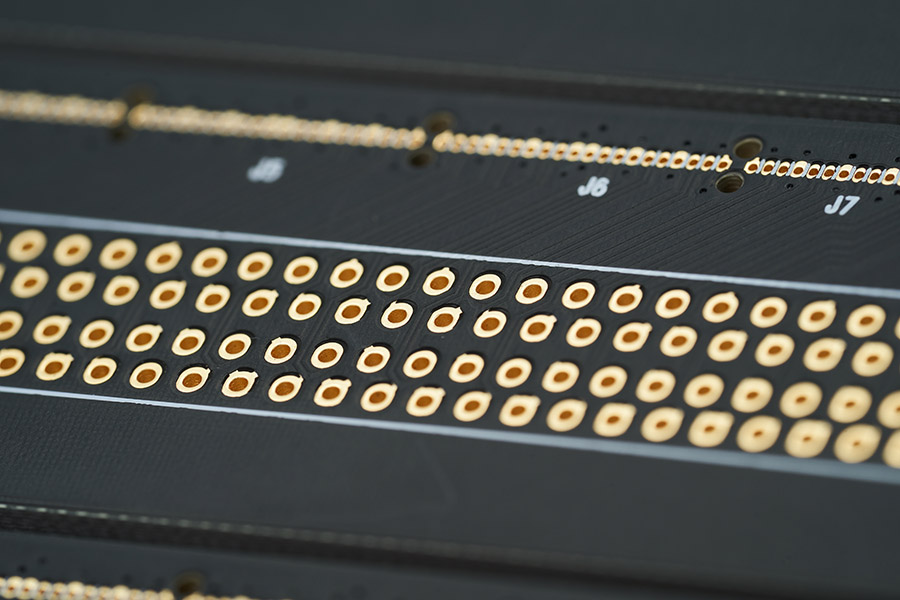

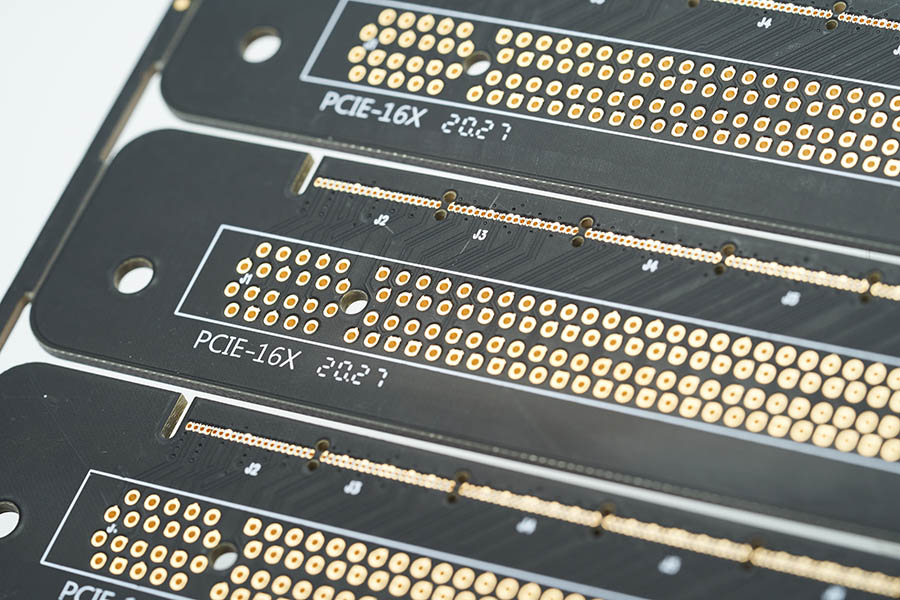

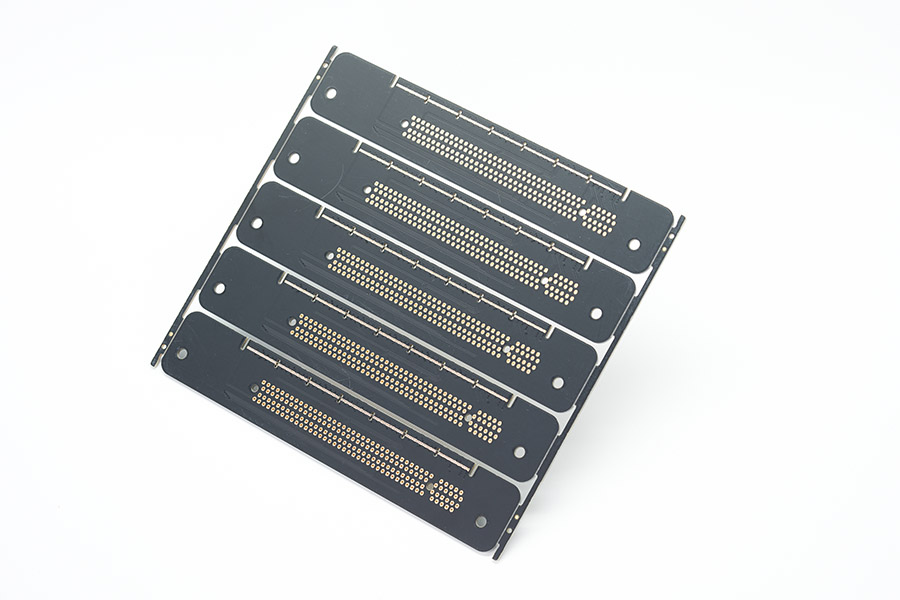

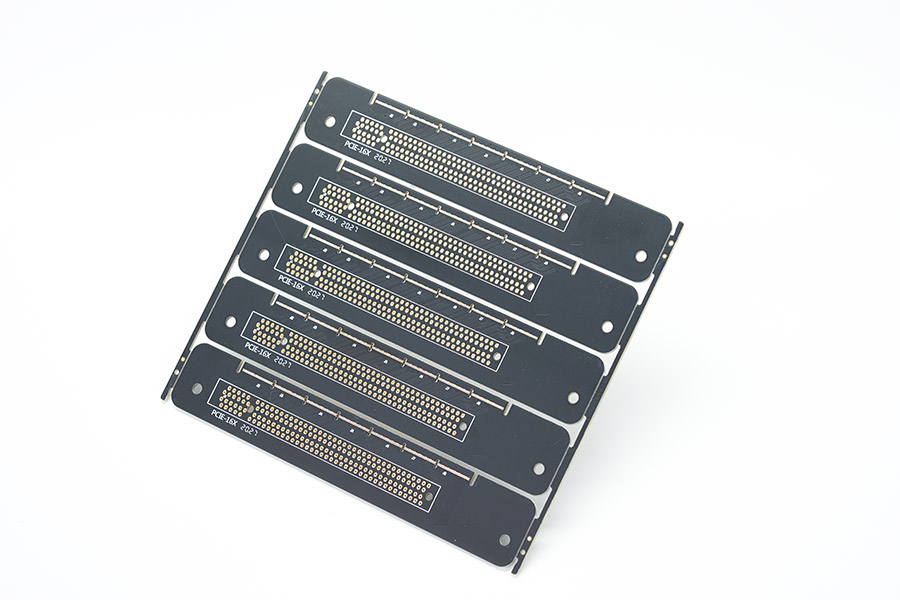

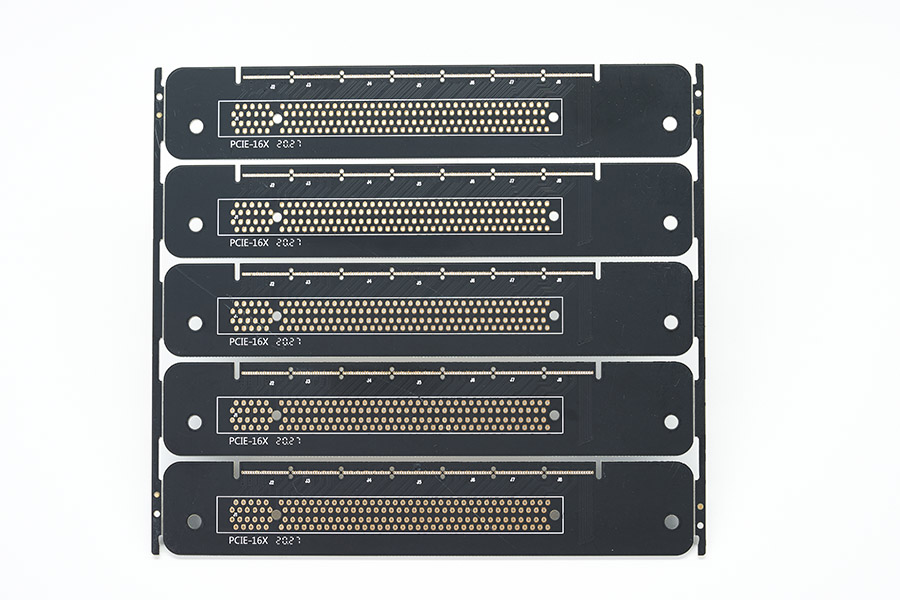

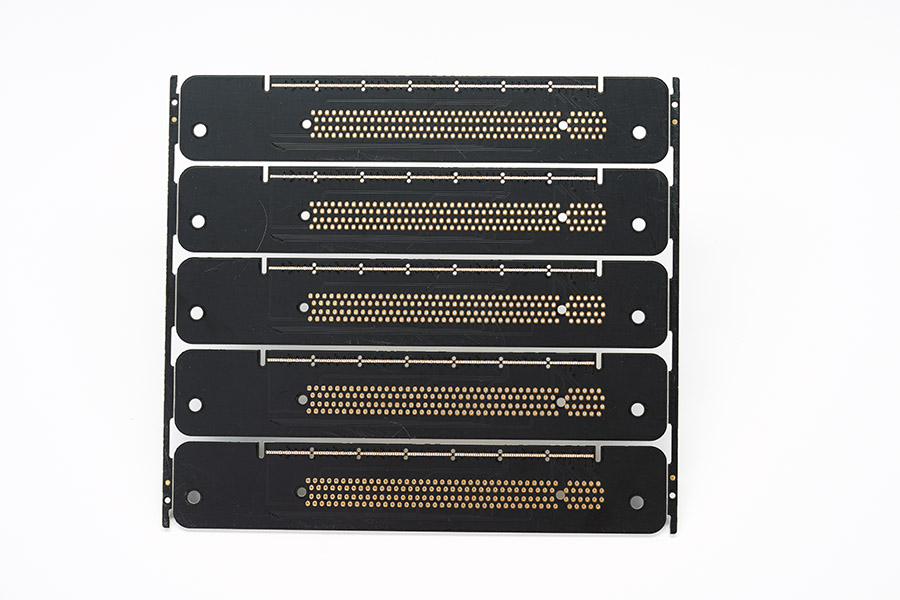

| Computer peripheral products PCB | |||
| Substrate: | FR4 | Layers: | 2 layers |
| Dielectric constant: | 4.3 | Board thickness: | 1.2mm |
| Thickness of outer copper foil: | 1oz | Thickness of inner copper foil: | / |
| Surface treatment method: | Immersion gold | Minimum hole diameter: | 0.25mm |
| Minimum line width: | 0.1mm | Minimum line space: | 0.1mm |
| Application field: | computer peripherals | Features: | The row holes retain the solder mask, the appearance does not accept scratches, dumb black oil |
![5a299f4929dc4e19ad027584fd44c4e9_46[1].jpg](/upload/default/20210203/206182640bae8504e1a85ba5faa7ff3c.jpg "5a299f4929dc4e19ad027584fd44c4e9_46[1].jpg")
![5a299f4929dc4e19ad027584fd44c4e9_44[1].jpg](/upload/default/20210203/93842687383fc2a5db4238ecc963fe61.jpg "5a299f4929dc4e19ad027584fd44c4e9_44[1].jpg")
![5a299f4929dc4e19ad027584fd44c4e9_42[1].jpg](/upload/default/20210203/05834995db14c674827c04878d48bec0.jpg "5a299f4929dc4e19ad027584fd44c4e9_42[1].jpg")
![5a299f4929dc4e19ad027584fd44c4e9_40[1].jpg](/upload/default/20210203/1aab4a7fe74b7eaaac7291591d9a776f.jpg "5a299f4929dc4e19ad027584fd44c4e9_40[1].jpg")
![5a299f4929dc4e19ad027584fd44c4e9_38[1].jpg](/upload/default/20210203/e9dc6c72165249cb61a313cc118153c5.jpg "5a299f4929dc4e19ad027584fd44c4e9_38[1].jpg")
![5a299f4929dc4e19ad027584fd44c4e9_36[1].jpg](/upload/default/20210203/0dd2a376a6183d0589ffedecedd5424c.jpg "5a299f4929dc4e19ad027584fd44c4e9_36[1].jpg")
![5a299f4929dc4e19ad027584fd44c4e9_34[1].jpg](/upload/default/20210203/f386b6bb26ea802f0a99bd2aecb4682c.jpg "5a299f4929dc4e19ad027584fd44c4e9_34[1].jpg")
Widely used in: communications, consumer electronics, industrial control, security, automobiles, power supplies, smart home, medical, military and other industries.
