Material: FR4 Number of layers: 2 layers Process: lead-free tin spray Minimum drilling: 0.3mm Minimum line width: 0.127mm Minimum line space: 0.127mm Features: Gao Shi white oil, reflectivity is required, the appearance does not accept scratches, copper leakage
+86 0755-81772911

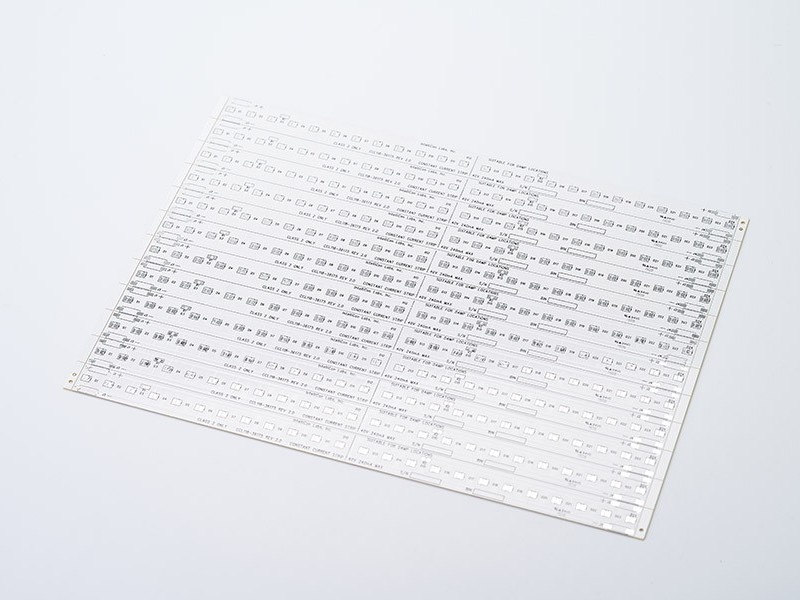

| White oil board PCB | |||
| Substrate: | FR4 | Layers: | 2 layers |
| Dielectric constant: | 4.3 | Board thickness: | 1.0mm |
| Thickness of outer copper foil: | 1oz | hickness of inner copper foil: | / |
| Surface treatment method: | lead-free spray tin | Minimum hole diameter: | 0.2mm |
| Minimum line width: | 0.127mm | Minimum line space: | 0.127mm |
| Application areas: | High-end LED | Features: | Gao Shi white oil, reflectivity is required, the appearance does not accept scratches, copper leakage |
![51592139cf814542b98d2018f026bfb4_24[1].jpg](http://lq.suishan.net/upload/default/20210203/319796714aa8eb4b8d51255530f24d3c.jpg "51592139cf814542b98d2018f026bfb4_24[1].jpg")
![51592139cf814542b98d2018f026bfb4_22[1].jpg](http://lq.suishan.net/upload/default/20210203/87bf6f19c401e6b04a4fab2a3040dd1d.jpg "51592139cf814542b98d2018f026bfb4_22[1].jpg")
![51592139cf814542b98d2018f026bfb4_20[1].jpg](http://lq.suishan.net/upload/default/20210203/661ac15aa54b16a7d74b59900cb7f071.jpg "51592139cf814542b98d2018f026bfb4_20[1].jpg")
![51592139cf814542b98d2018f026bfb4_18[1].jpg](http://lq.suishan.net/upload/default/20210203/d32abbc1658586b7bf220bd7122a97d2.jpg "51592139cf814542b98d2018f026bfb4_18[1].jpg")
![51592139cf814542b98d2018f026bfb4_16[1].jpg](http://lq.suishan.net/upload/default/20210203/bac8c1e12cee03575e58cf3d895da733.jpg "51592139cf814542b98d2018f026bfb4_16[1].jpg")
![51592139cf814542b98d2018f026bfb4_14[1].jpg](http://lq.suishan.net/upload/default/20210203/6040eab517dcd8a62997b558492b1839.jpg "51592139cf814542b98d2018f026bfb4_14[1].jpg")
![51592139cf814542b98d2018f026bfb4_12[1].jpg](http://lq.suishan.net/upload/default/20210203/b48993cf23717c7e30252e4afd4a1bb2.jpg "51592139cf814542b98d2018f026bfb4_12[1].jpg")
![51592139cf814542b98d2018f026bfb4_10[1].jpg](http://lq.suishan.net/upload/default/20210203/55b5127bac50190685f14e2138f698d5.jpg "51592139cf814542b98d2018f026bfb4_10[1].jpg")
![51592139cf814542b98d2018f026bfb4_8[1].jpg](http://lq.suishan.net/upload/default/20210203/b3fefbed4caf40ff93a098452a9ef2ed.jpg "51592139cf814542b98d2018f026bfb4_8[1].jpg")
Widely used in: communications, consumer electronics, industrial control, security, automobiles, power supplies, smart home, medical, military and other industries.
