Material: FR4 Board thickness: 1.6mm Number of layers: 2 layers Process: Immersion Gold Minimum drilling: 0.3mm Minimum line width: 0.127mm Minimum line space: 0.127mm
+86 0755-81772911

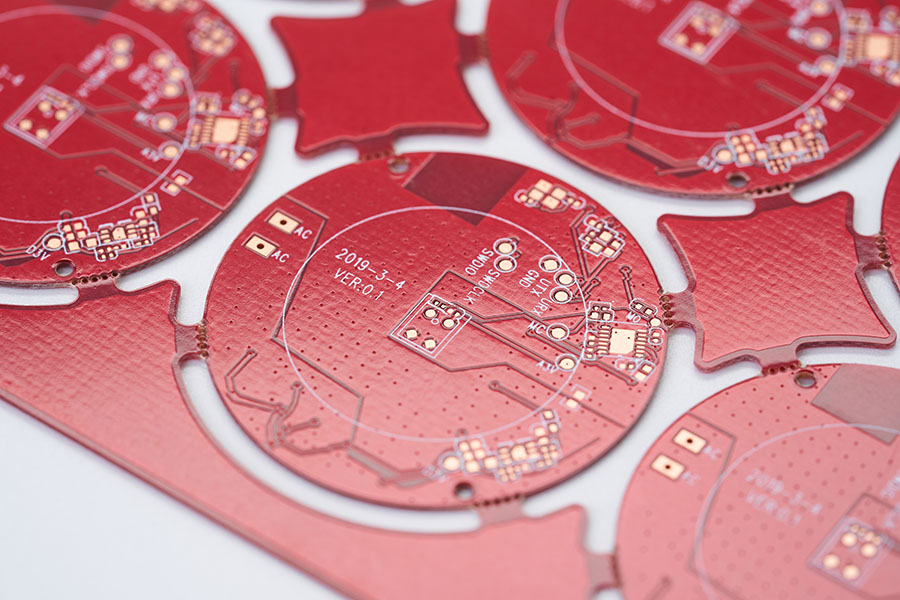

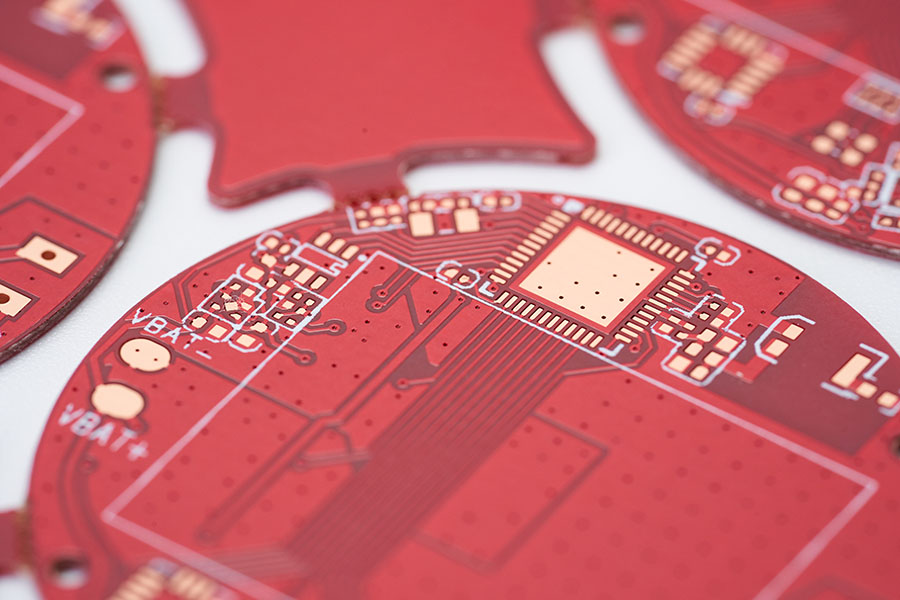

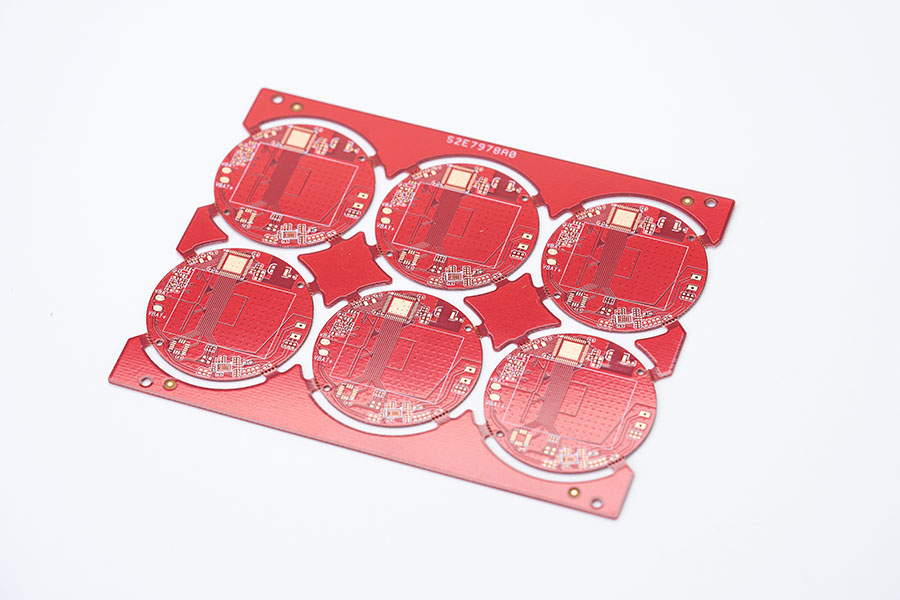

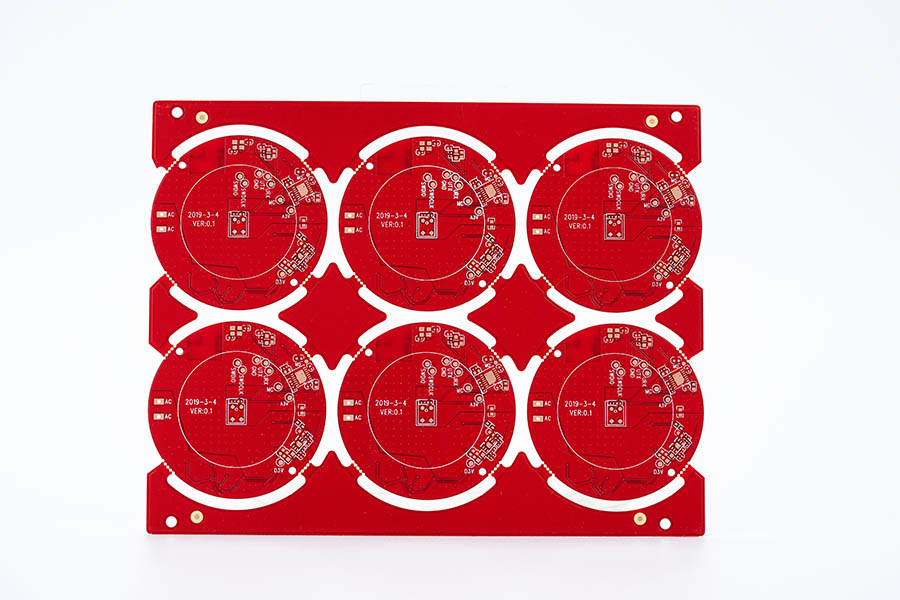

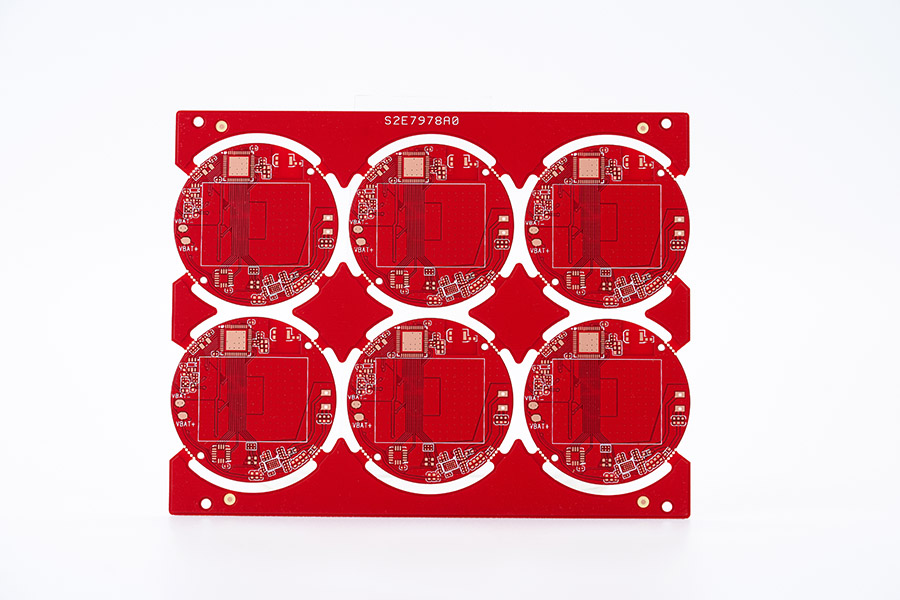

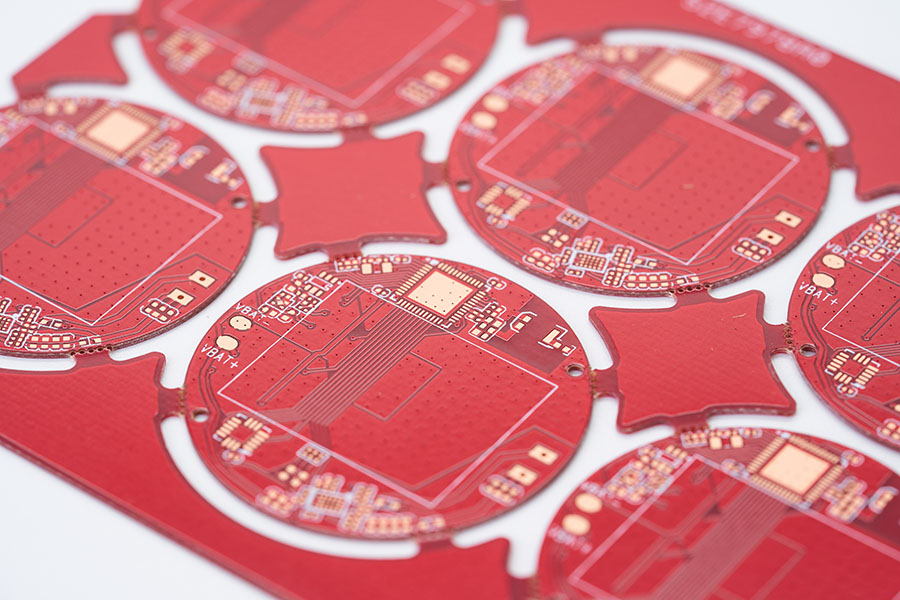

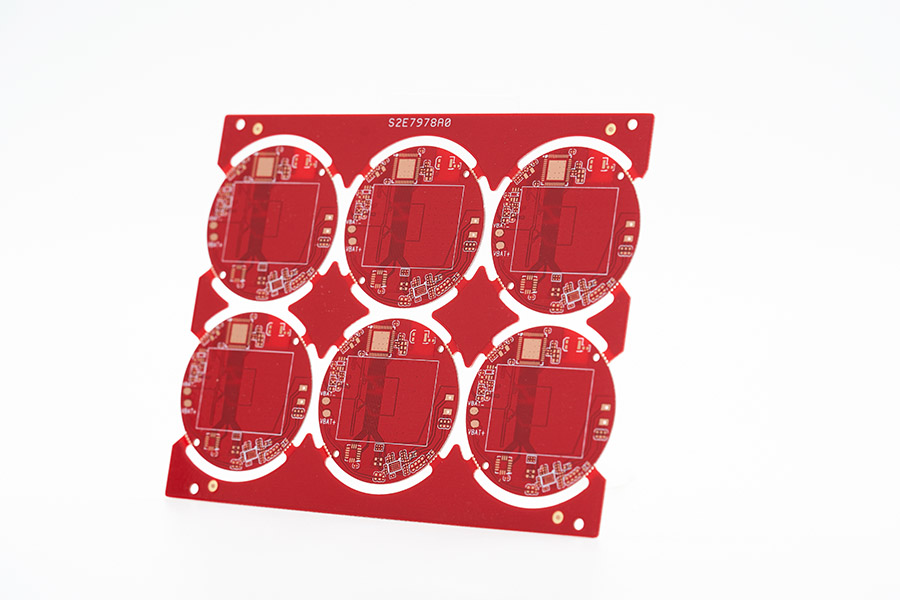

| Double-sided red oil board | |||
| Substrate: | FR4 | Layers: | 2 layers |
| Dielectric constant: | 4.3 | Board thickness: | 1.6mm |
| Thickness of outer copper foil: | 1oz | hickness of inner copper foil: | / |
| Surface treatment method: | Immersion gold | Minimum hole diameter: | 0.3mm |
| Minimum line width: | 0.127mm | Minimum line space: | 0.127mm |
| Application areas: | Smart consumption | Features: | Immersion gold red oil board, with strict tolerance on aperture and size, scratching is not accepted |
![230463ee94ac4c1f8ad3fad5c722e0f0_94[1].jpg](/upload/default/20210203/39244dbd9d81469c48d604632b69fb3b.jpg "230463ee94ac4c1f8ad3fad5c722e0f0_94[1].jpg")
![230463ee94ac4c1f8ad3fad5c722e0f0_92[1].jpg](/upload/default/20210203/e86632e57316c6519e0490ab8b12d981.jpg "230463ee94ac4c1f8ad3fad5c722e0f0_92[1].jpg")
![230463ee94ac4c1f8ad3fad5c722e0f0_90[1].jpg](/upload/default/20210203/f8d51e9326d0fdf76f2b55c73ecb163a.jpg "230463ee94ac4c1f8ad3fad5c722e0f0_90[1].jpg")
![230463ee94ac4c1f8ad3fad5c722e0f0_88[1].jpg](/upload/default/20210203/26bb3c5780fa8f902c91e42bbe211c77.jpg "230463ee94ac4c1f8ad3fad5c722e0f0_88[1].jpg")
![230463ee94ac4c1f8ad3fad5c722e0f0_86[1].jpg](/upload/default/20210203/097286a29ef70c76a132e5dfeb9207b9.jpg "230463ee94ac4c1f8ad3fad5c722e0f0_86[1].jpg")
![230463ee94ac4c1f8ad3fad5c722e0f0_84[1].jpg](/upload/default/20210203/934b2efb080c7c6f3b66684aee2f23f8.jpg "230463ee94ac4c1f8ad3fad5c722e0f0_84[1].jpg")
![230463ee94ac4c1f8ad3fad5c722e0f0_82[1].jpg](/upload/default/20210203/32b0781a6c11ca48adce5d2c4fe3c1d9.jpg "230463ee94ac4c1f8ad3fad5c722e0f0_82[1].jpg")
Widely used in: communications, consumer electronics, industrial control, security, automobiles, power supplies, smart home, medical, military and other industries.
