Material: FR4 Board thickness: 1.6mm Number of layers: 2 layers Process: lead-free tin spray Minimum drilling: 0.3mm Minimum line width: 0.127mm Minimum line space: 0.127mm
+86 0755-81772911

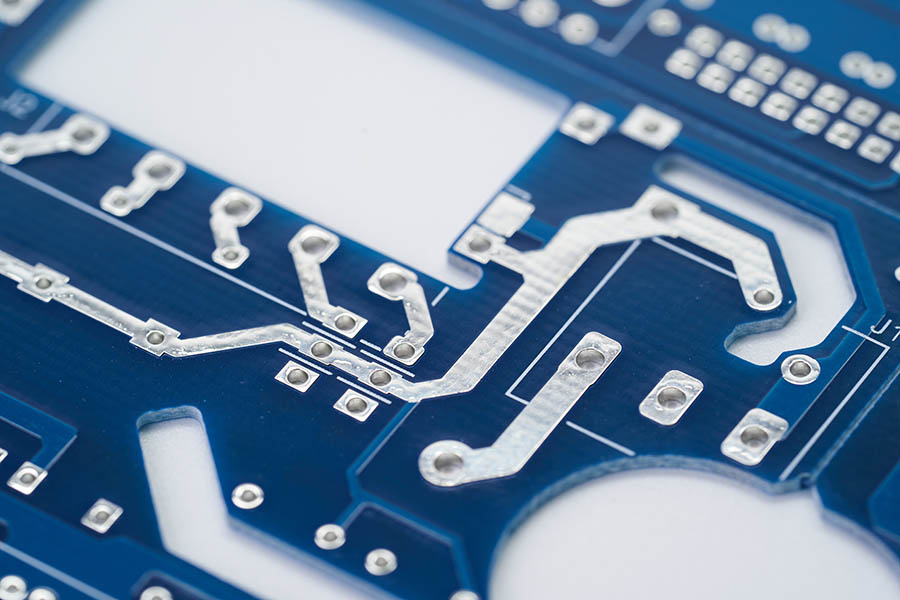

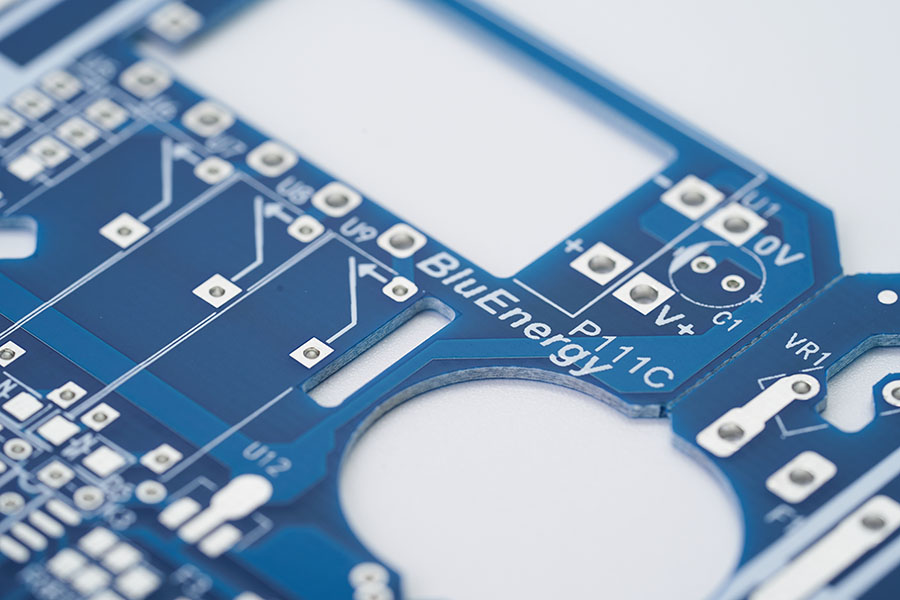

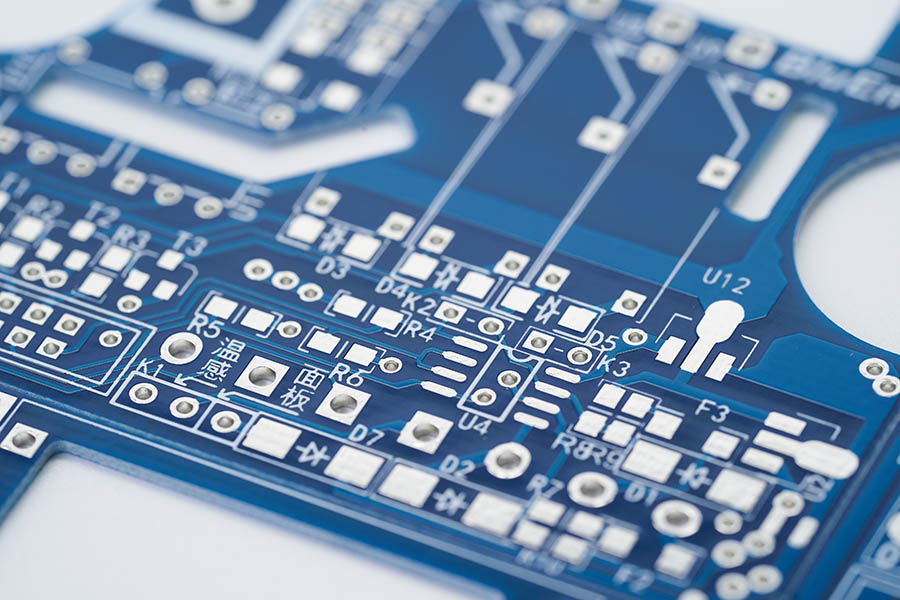

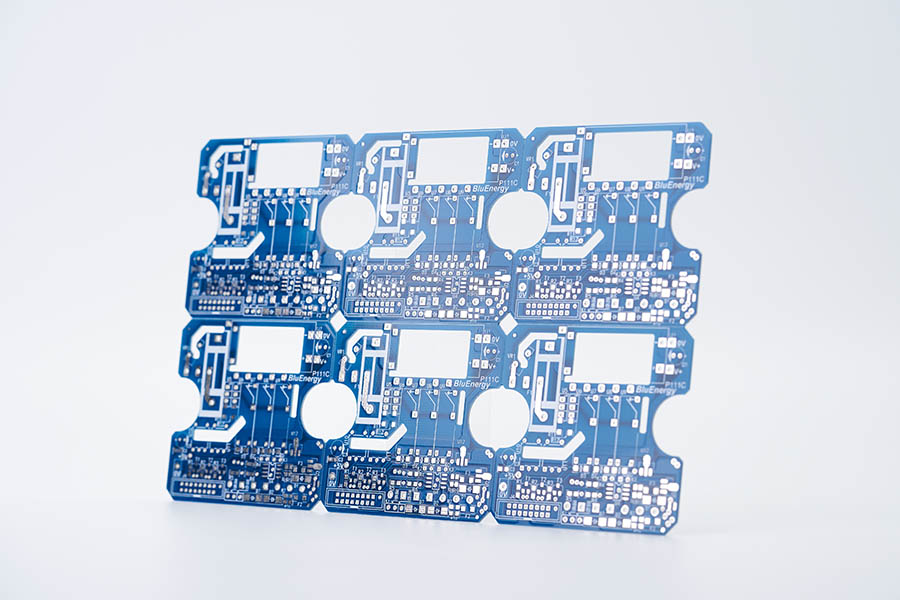

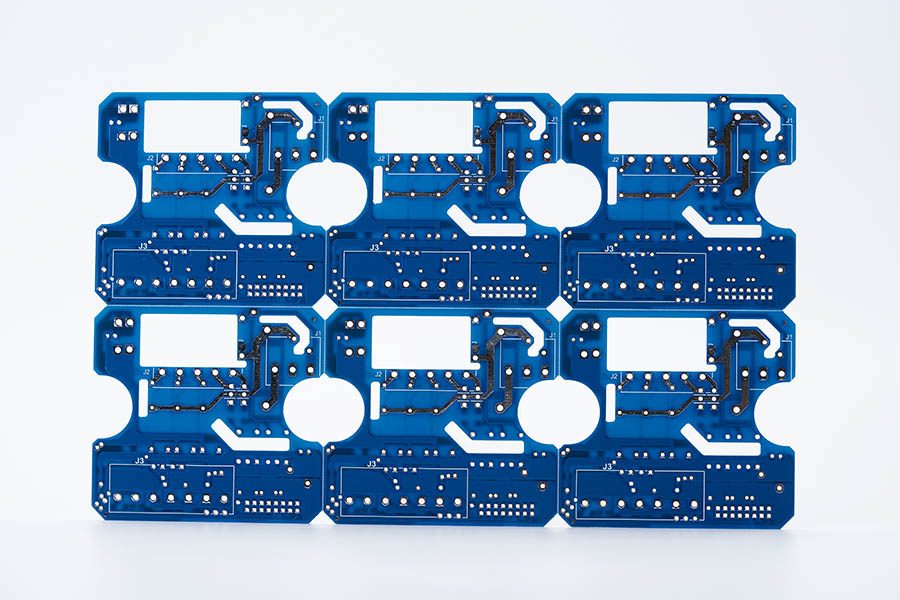

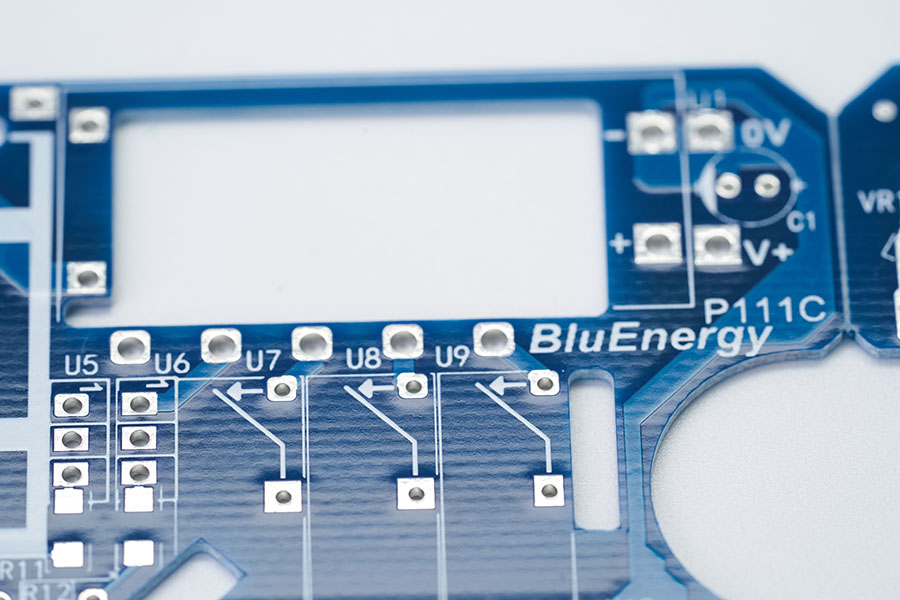

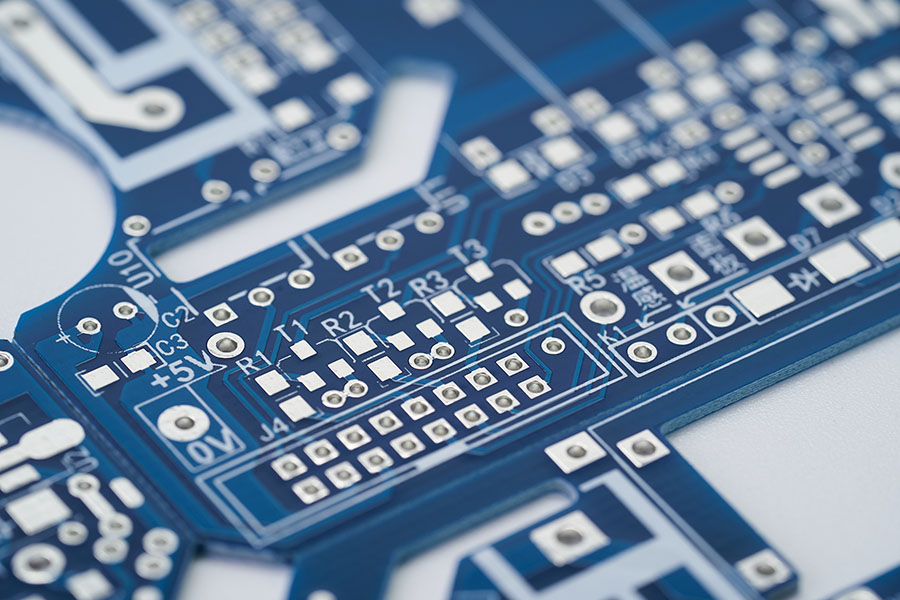

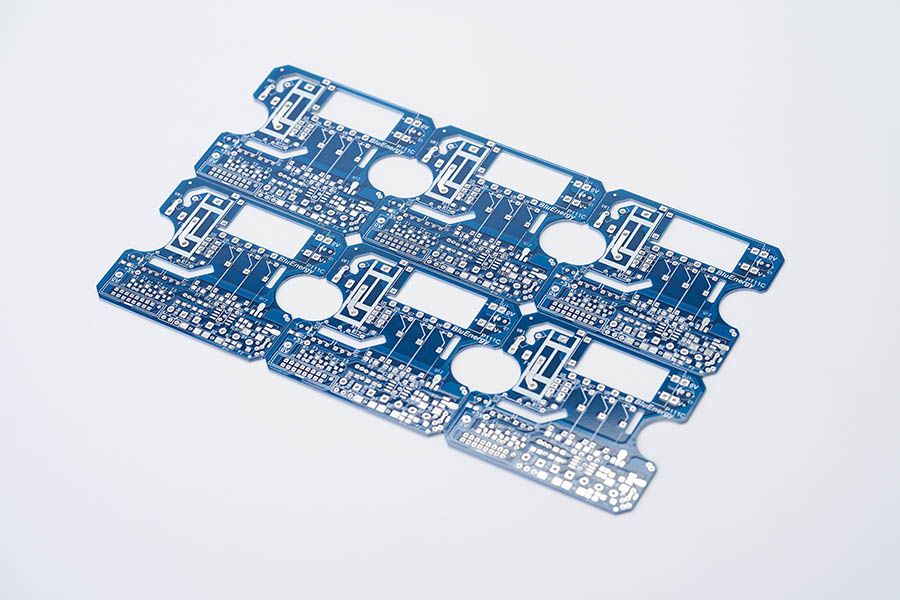

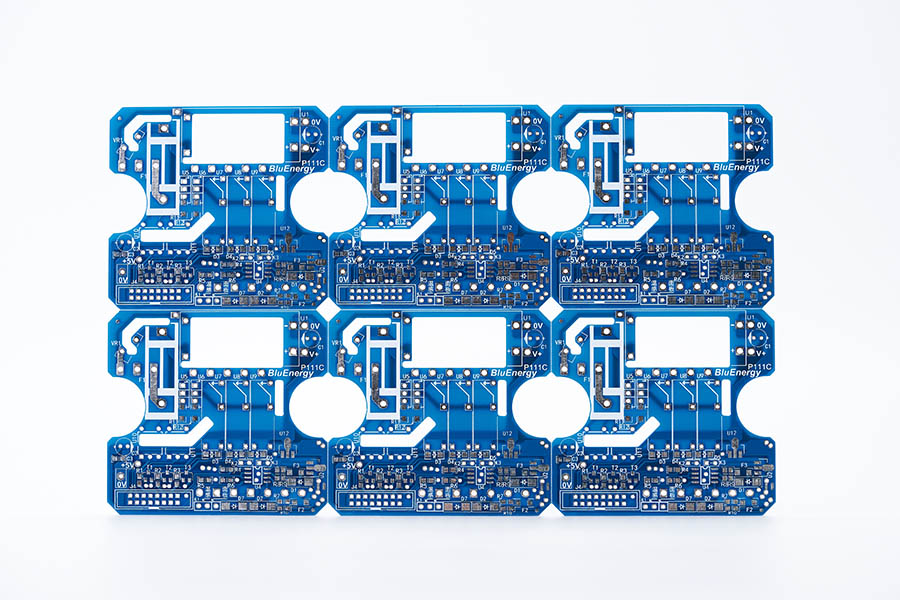

| Double-sided blue oil board | |||
| Substrate: | FR4 | Layers: | 2 layers |
| Dielectric constant: | 4.3 | Board thickness: | 1.6mm |
| Thickness of outer copper foil: | 1oz | hickness of inner copper foil: | / |
| Surface treatment method: | lead-free spray tin | Minimum hole diameter: | 0.3mm |
| Minimum line width: | 0.127mm | Minimum line space: | 0.127mm |
| Application areas: | Educational equipment | Features: | Blue oil plate, with strict tolerances on aperture and size, scratching is not accepted |
![230463ee94ac4c1f8ad3fad5c722e0f0_44[1].jpg](/upload/default/20210203/94ed5e207ee1fea696f3a19a84d54a40.jpg "230463ee94ac4c1f8ad3fad5c722e0f0_44[1].jpg")
![230463ee94ac4c1f8ad3fad5c722e0f0_42[1].jpg](/upload/default/20210203/99f5e2a61259eb9ad256b99a36113862.jpg "230463ee94ac4c1f8ad3fad5c722e0f0_42[1].jpg")
![230463ee94ac4c1f8ad3fad5c722e0f0_40[1].jpg](/upload/default/20210203/347e8f95a1f3e2405c5f7e586c8a98ea.jpg "230463ee94ac4c1f8ad3fad5c722e0f0_40[1].jpg")
![230463ee94ac4c1f8ad3fad5c722e0f0_38[1].jpg](/upload/default/20210203/24f09e7e0850aea48c24824fa52cfaa3.jpg "230463ee94ac4c1f8ad3fad5c722e0f0_38[1].jpg")
![230463ee94ac4c1f8ad3fad5c722e0f0_36[1].jpg](/upload/default/20210203/adc5269d157c160da6794f43a60e13ed.jpg "230463ee94ac4c1f8ad3fad5c722e0f0_36[1].jpg")
![230463ee94ac4c1f8ad3fad5c722e0f0_34[1].jpg](/upload/default/20210203/e061a87c6d495091d4ea8fab797a0d6d.jpg "230463ee94ac4c1f8ad3fad5c722e0f0_34[1].jpg")
![230463ee94ac4c1f8ad3fad5c722e0f0_32[1].jpg](/upload/default/20210203/e571d332df3d666509cfeae41c4546c2.jpg "230463ee94ac4c1f8ad3fad5c722e0f0_32[1].jpg")
![230463ee94ac4c1f8ad3fad5c722e0f0_30[1].jpg](/upload/default/20210203/50b6ae6b932235954bd907c391bde990.jpg "230463ee94ac4c1f8ad3fad5c722e0f0_30[1].jpg")
![230463ee94ac4c1f8ad3fad5c722e0f0_28[1].jpg](/upload/default/20210203/4e3b7fce0135afb4801cc1da8538a253.jpg "230463ee94ac4c1f8ad3fad5c722e0f0_28[1].jpg")
Widely used in: communications, consumer electronics, industrial control, security, automobiles, power supplies, smart home, medical, military and other industries.
