Material: FR4 Board thickness: 1.6mm Number of layers: 2 layers Process: Lead-free spray tin Minimum drilling: 0.3mm Minimum line width: 0.127mm Minimum line space: 0.127mm Features: green oil board, aperture and size
+86 0755-81772911

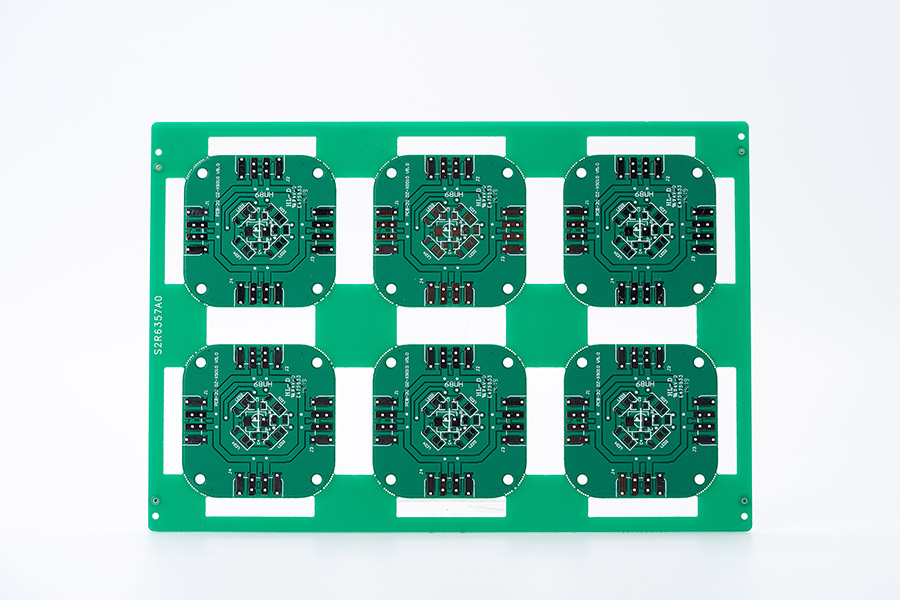

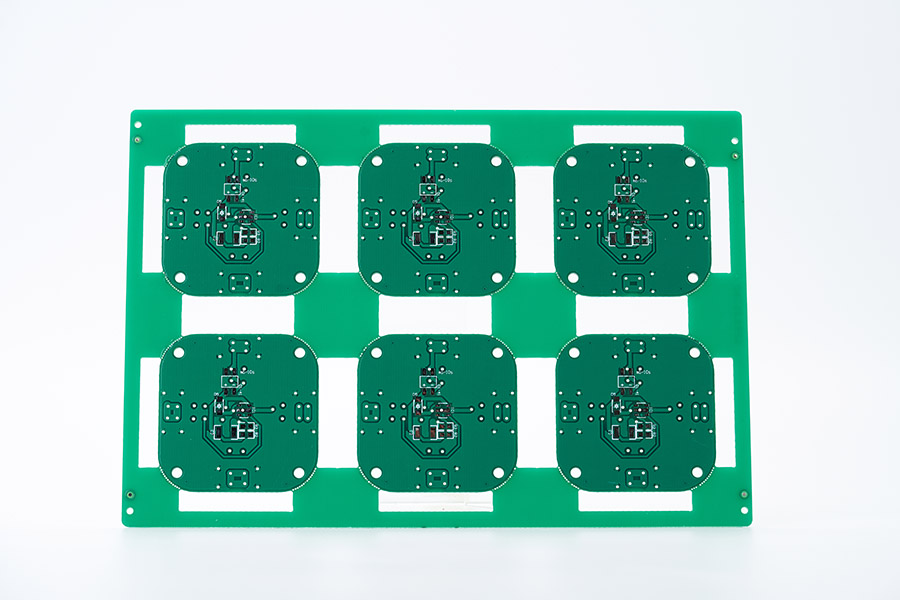

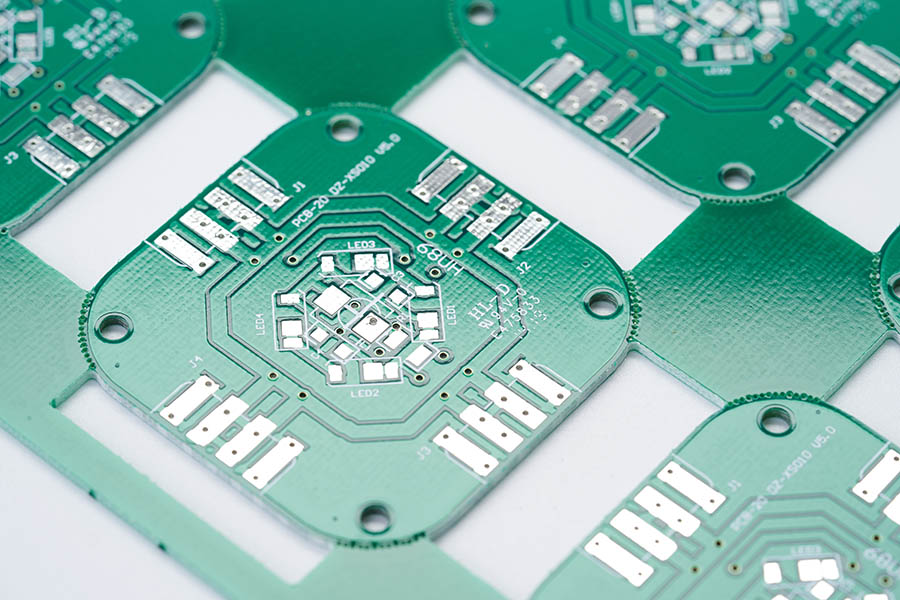

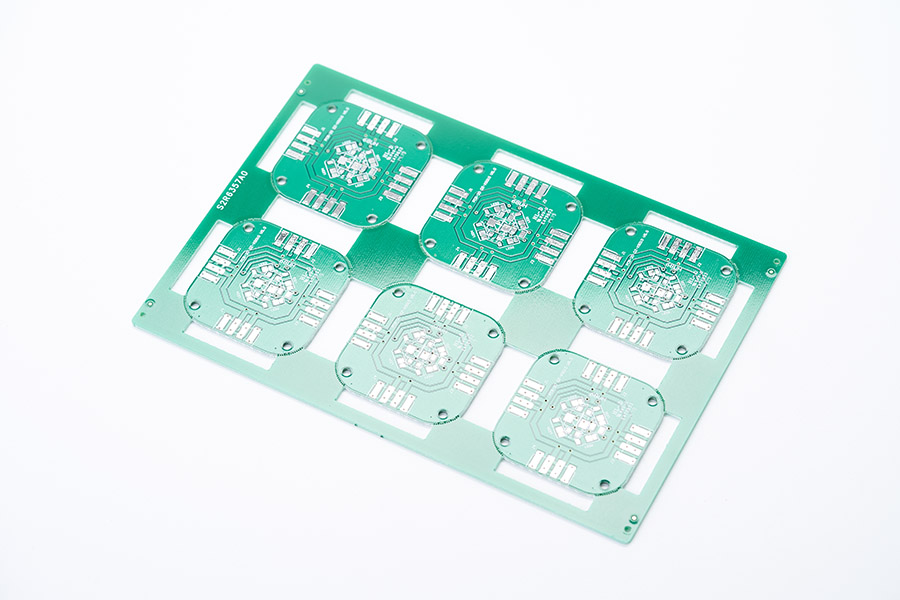

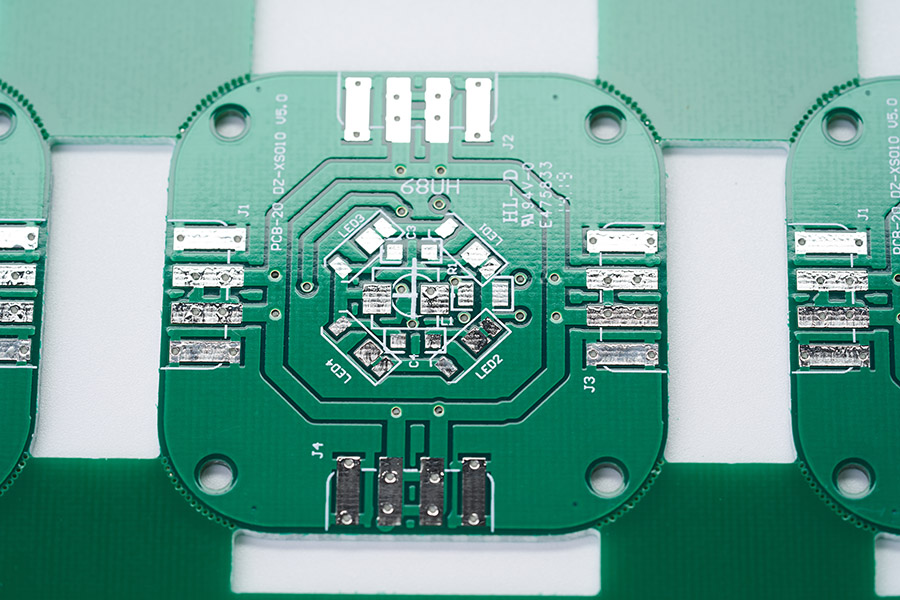

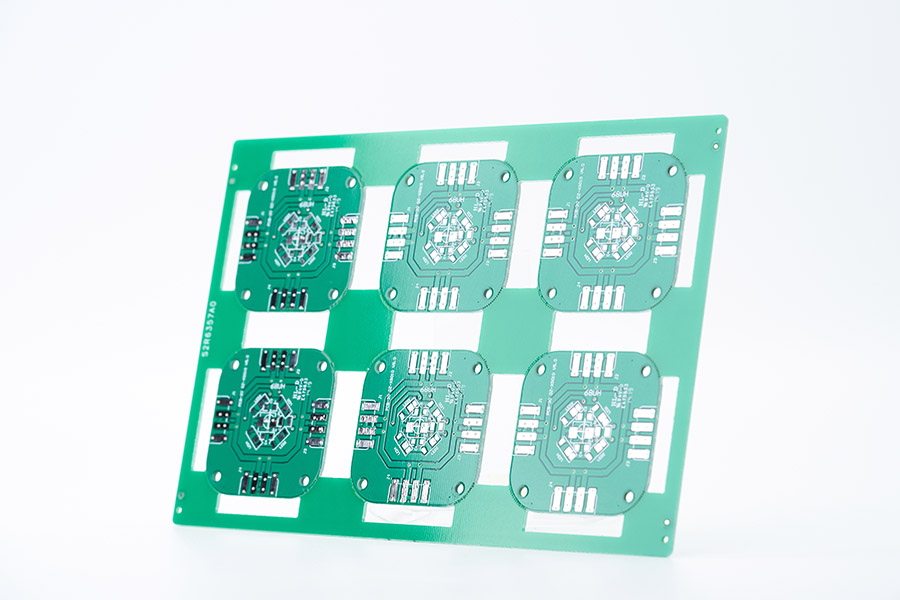

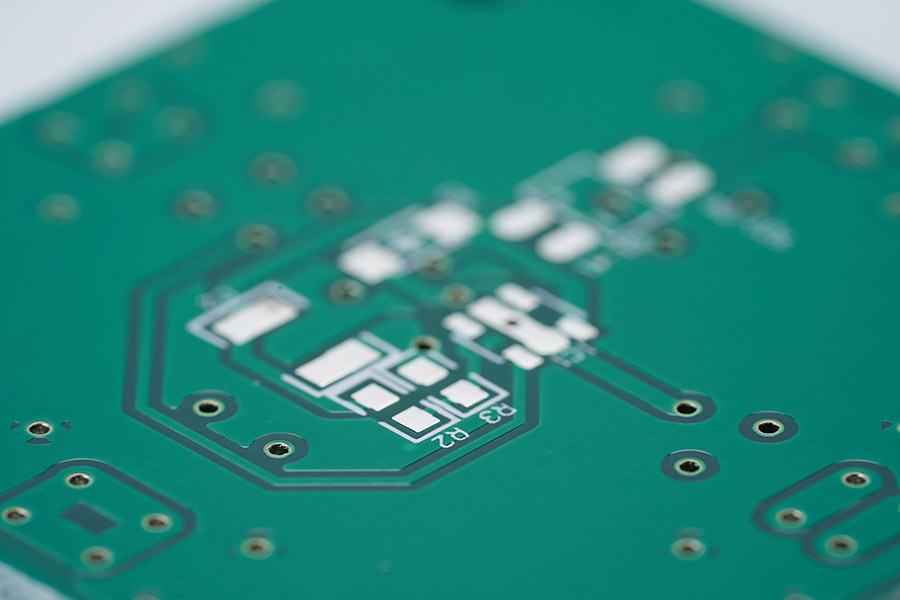

| Double-sided spray tin plate | |||
| Substrate: | FR4 | Layers: | 2 layers |
| Dielectric constant: | 4.3 | Board thickness: | 1.6mm |
| Thickness of outer copper foil: | 1oz | hickness of inner copper foil: | / |
| Surface treatment method: | lead-free spray tin | Minimum hole diameter: | 0.3mm |
| Minimum line width: | 0.127mm | Minimum line space: | 0.127mm |
| Application areas: | Educational equipment | Features: | Green oil board, strict tolerance on aperture and size, scratching is not accepted |
![230463ee94ac4c1f8ad3fad5c722e0f0_20[1].jpg](/upload/default/20210203/38506174b453ec07487b80bff4b80508.jpg "230463ee94ac4c1f8ad3fad5c722e0f0_20[1].jpg")
![230463ee94ac4c1f8ad3fad5c722e0f0_18[1].jpg](/upload/default/20210203/17d5e1c6f1da25af4229c9688a5ba046.jpg "230463ee94ac4c1f8ad3fad5c722e0f0_18[1].jpg")
![230463ee94ac4c1f8ad3fad5c722e0f0_16[1].jpg](/upload/default/20210203/44123ac04a4bfc1b1bb295b1f44cb507.jpg "230463ee94ac4c1f8ad3fad5c722e0f0_16[1].jpg")
![230463ee94ac4c1f8ad3fad5c722e0f0_14[1].jpg](/upload/default/20210203/a1da5600f0414f0b4171ab7f13c532f7.jpg "230463ee94ac4c1f8ad3fad5c722e0f0_14[1].jpg")
![230463ee94ac4c1f8ad3fad5c722e0f0_12[1].jpg](/upload/default/20210203/5ba7b2a3a7e174667e16f75b27845dad.jpg "230463ee94ac4c1f8ad3fad5c722e0f0_12[1].jpg")
![230463ee94ac4c1f8ad3fad5c722e0f0_10[1].jpg](/upload/default/20210203/4d893a1e7066f6dc3b7fa574ab165246.jpg "230463ee94ac4c1f8ad3fad5c722e0f0_10[1].jpg")
![230463ee94ac4c1f8ad3fad5c722e0f0_8[1].jpg](/upload/default/20210203/2c8dc19af66acce8d61d7caa7c17c8da.jpg "230463ee94ac4c1f8ad3fad5c722e0f0_8[1].jpg")
Widely used in: communications, consumer electronics, industrial control, security, automobiles, power supplies, smart home, medical, military and other industries.
