Material: FR4 Board thickness: 0.3mm Number of layers: 2 layers Process: Immersion Gold Minimum drilling: 0.3mm Minimum line width: 0.127mm Minimum line space: 0.127mm Features: ultra-thin board, single-sided V cut,
+86 0755-81772911

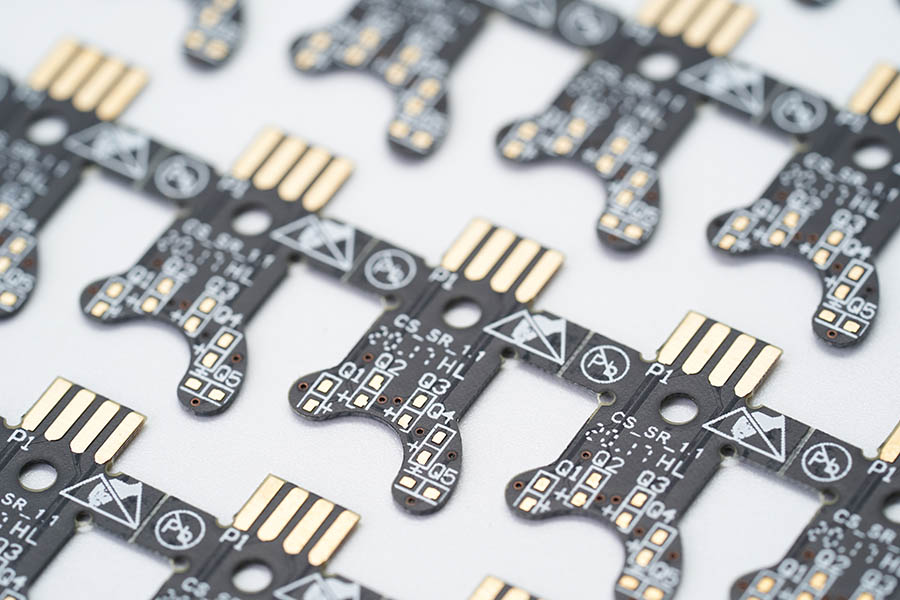

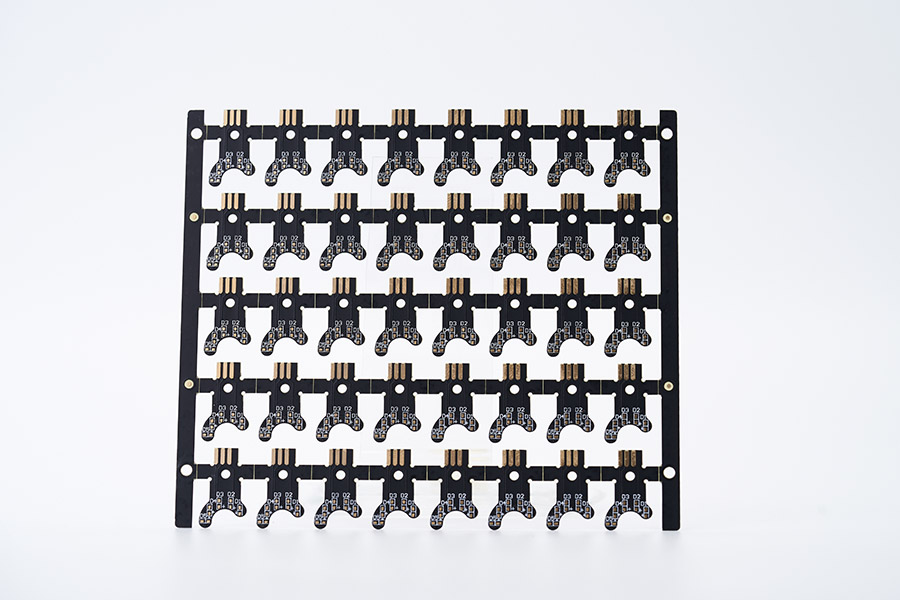

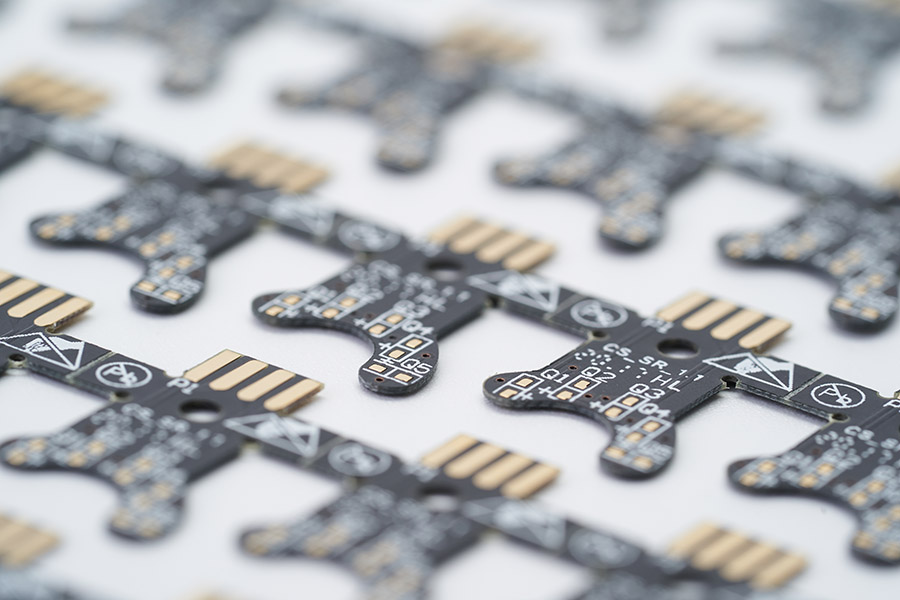

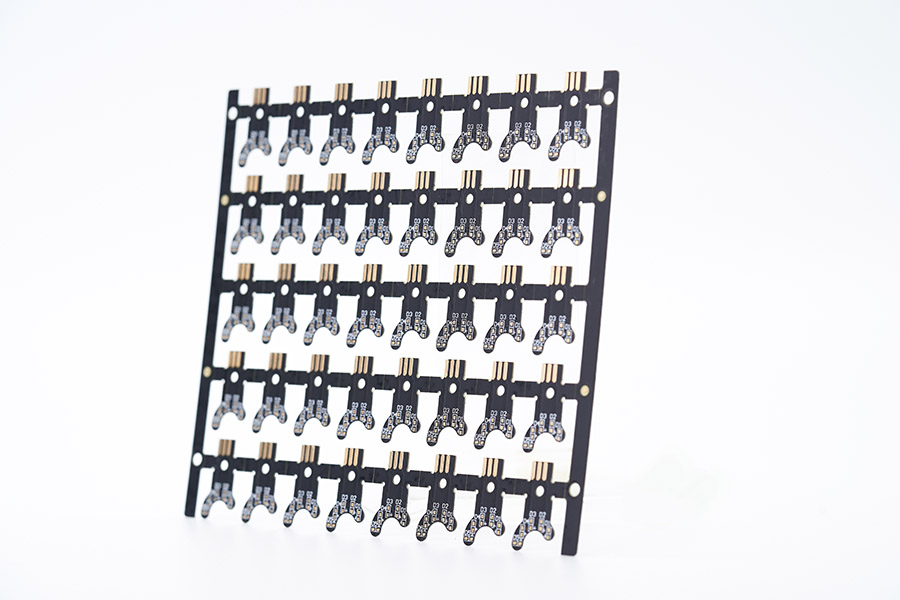

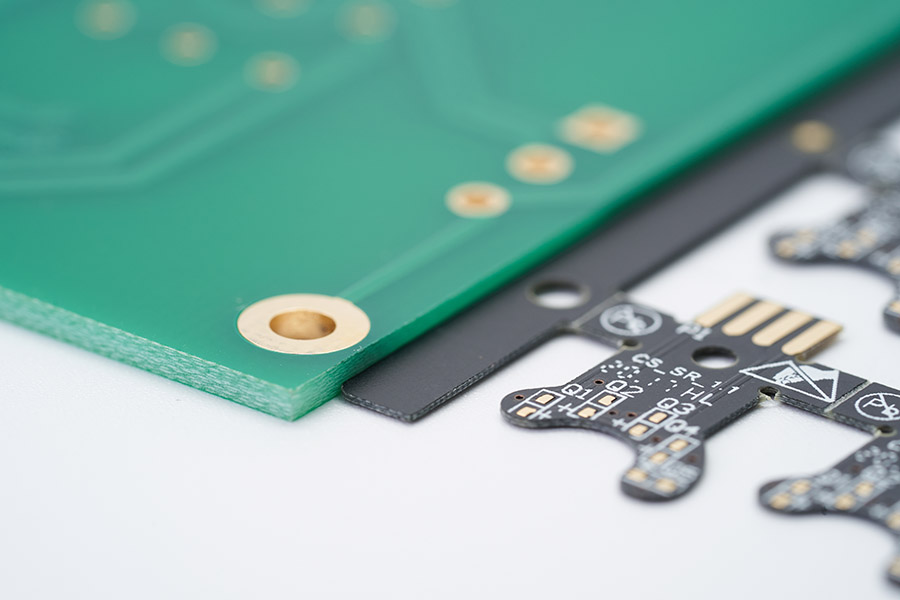

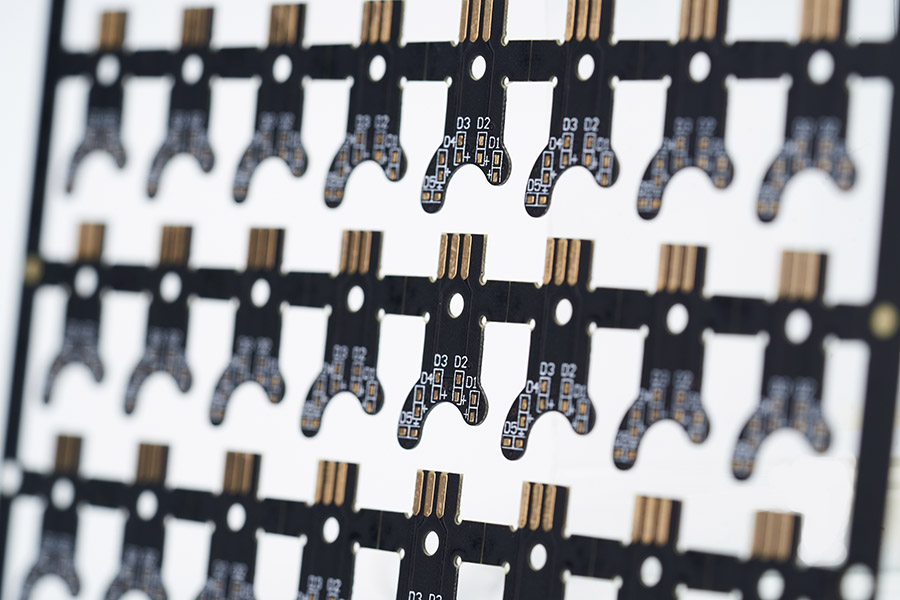

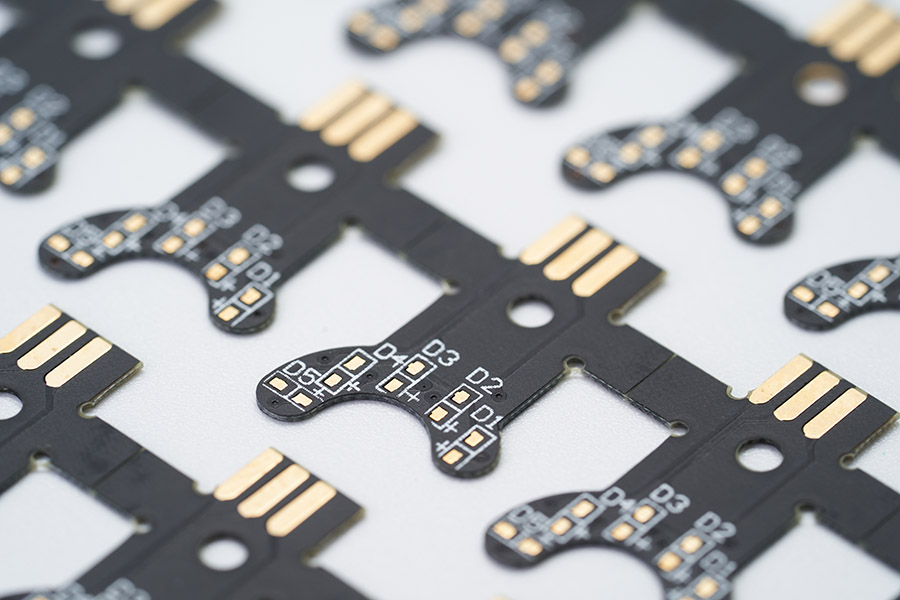

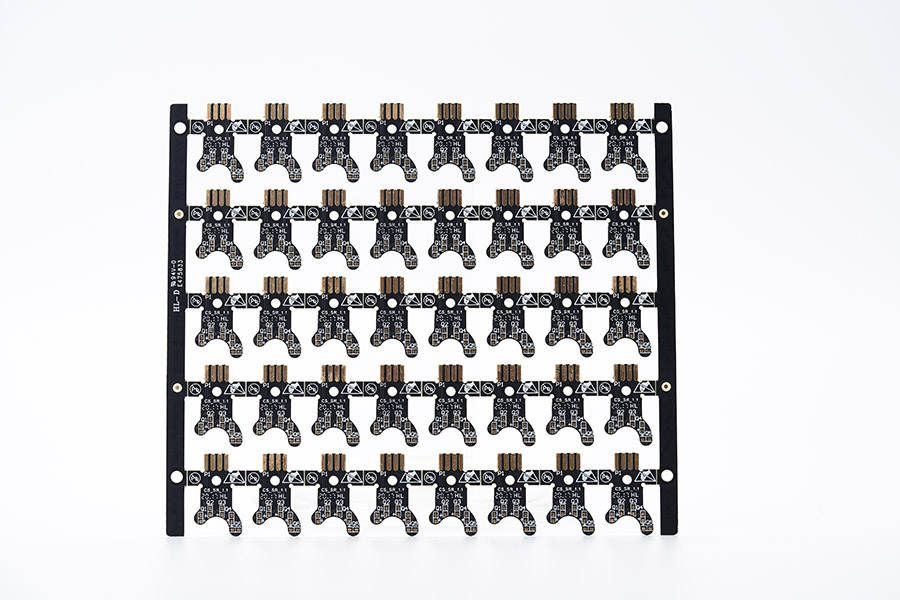

| Thin PCB | |||
| Substrate: | FR4 | Layers: | 2 layers |
| Dielectric constant: | 4.3 | Board thickness: | 0.3mm |
| Thickness of outer copper foil: | 1oz | hickness of inner copper foil: | / |
| Surface treatment method: | Immersion gold | Minimum hole diameter: | 0.127mm |
| Minimum line width: | 0.127mm | Minimum line space: | 0.127mm |
| Application areas: | Valve | Features: | Ultra-thin board, single-sided V-cut, irregular shape |
![fba78f04afe845c6a6f9d2dc1aae38fd_18[1].jpg](/upload/default/20210203/73de3184f6b37ffaf9095670deedba58.jpg "fba78f04afe845c6a6f9d2dc1aae38fd_18[1].jpg")
![fba78f04afe845c6a6f9d2dc1aae38fd_16[1].jpg](/upload/default/20210203/8330621cb183cbfdfe4a8835ccc8228f.jpg "fba78f04afe845c6a6f9d2dc1aae38fd_16[1].jpg")
![fba78f04afe845c6a6f9d2dc1aae38fd_14[1].jpg](/upload/default/20210203/6464c8677662e70b9b880e9f1506c5db.jpg "fba78f04afe845c6a6f9d2dc1aae38fd_14[1].jpg")
![fba78f04afe845c6a6f9d2dc1aae38fd_28[1].jpg](/upload/default/20210203/31ade1294b4490e745d8400457f3016b.jpg "fba78f04afe845c6a6f9d2dc1aae38fd_28[1].jpg")
![fba78f04afe845c6a6f9d2dc1aae38fd_26[1].jpg](/upload/default/20210203/c90d4840d0d9bb1422514f4e85cecde3.jpg "fba78f04afe845c6a6f9d2dc1aae38fd_26[1].jpg")
![fba78f04afe845c6a6f9d2dc1aae38fd_24[1].jpg](/upload/default/20210203/abdc2095e3dd339b9329242882cf03f6.jpg "fba78f04afe845c6a6f9d2dc1aae38fd_24[1].jpg")
![fba78f04afe845c6a6f9d2dc1aae38fd_22[1].jpg](/upload/default/20210203/661864d1defe8cca6548996dc840be8f.jpg "fba78f04afe845c6a6f9d2dc1aae38fd_22[1].jpg")
![fba78f04afe845c6a6f9d2dc1aae38fd_20[1].jpg](/upload/default/20210203/76233f9b4d45fe0c41ed57ec64420653.jpg "fba78f04afe845c6a6f9d2dc1aae38fd_20[1].jpg")
Widely used in: communications, consumer electronics, industrial control, security, automobiles, power supplies, smart home, medical, military and other industries.
