Material: FR4 Number of layers: 2 layers Process: Immersion Gold Minimum Drilling: 0.2mm Minimum line width: 0.127mm Minimum line space: 0.127mm Features: half hole impedance board, white silk screen requires flatness
+86 0755-81772911

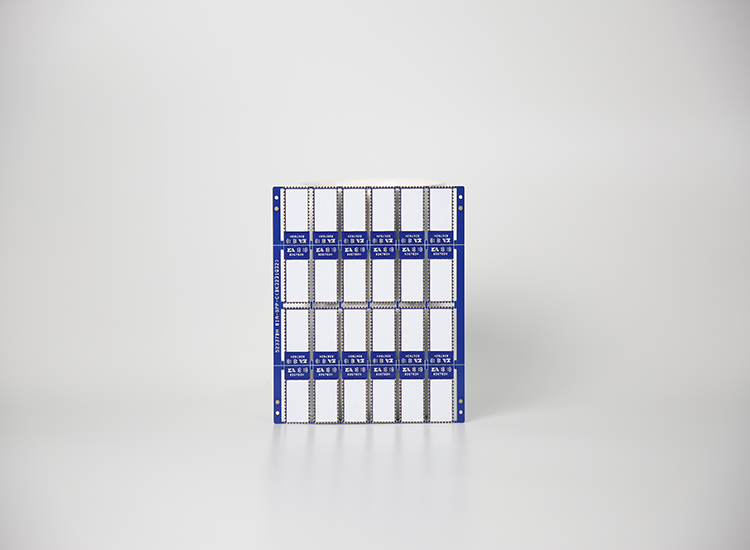

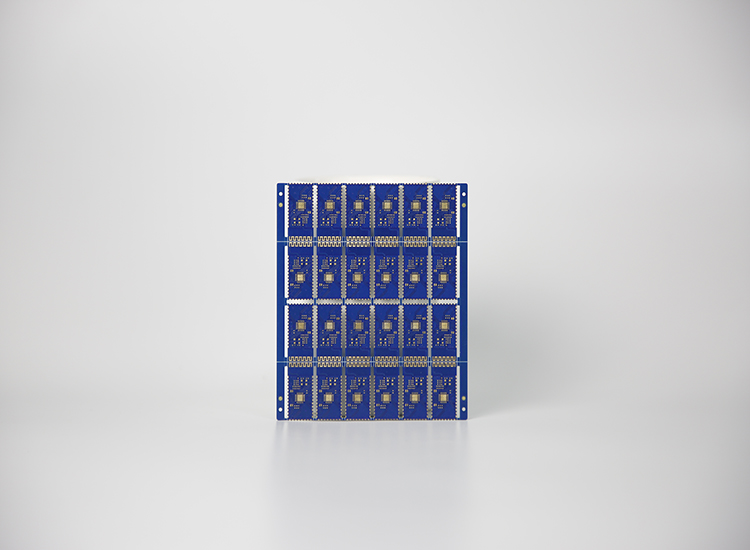

| WIFI circuit board | |||
| Substrate: | FR4 | Layers: | 2 layers |
| Dielectric constant: | 4.3 | Board thickness: | 0.8mm |
| Thickness of outer copper foil: | 1oz | hickness of inner copper foil: | / |
| Surface treatment method: | Immersion gold | Minimum hole diameter: | 0.3mm |
| Minimum line width: | 0.127mm | Minimum line space: | 0.127mm |
| Application areas: | WIFI | Features: | Half-hole impedance board, white silk screen requires flatness |
| Warm reminder: Due to the particularity of the product, customized products will not be returned, please understand! | |||
![aec4bd59c0134103acdd8324aaead60d_89[1].jpg](/upload/default/20210204/c1b2a93c4971eaa352ffcddaa87831cc.jpg "aec4bd59c0134103acdd8324aaead60d_89[1].jpg")
![aec4bd59c0134103acdd8324aaead60d_87[1].jpg](/upload/default/20210204/dc534febf29c89f9f21da68aa1cd80d4.jpg "aec4bd59c0134103acdd8324aaead60d_87[1].jpg")
Widely used in: communications, consumer electronics, industrial control, security, automobiles, power supplies, smart home, medical, military and other industries.
