Black Character PCB

​Material: FR4 Number of layers: 4 layers Process: OSP Minimum drilling: 0.4mm Minimum line width: 0.2mm Minimum line space: 0.2mm Features: black characters 【MORE】

Industrial control circuit board 2

Industrial control circuit board 2 Material: FR4 Number of layers: 6 layers Process: Immersion Gold Minimum drilling: 0.3mm Minimum line width: 0.127mm Minimum line space: 0.127mm Features: hole copper 25um, appearance IPC three-level standard, do not accept oil supply line 【MORE】

Six-layer coil PCB2

Material: FR4 Number of layers: 6 layers Process: Immersion Gold Minimum drilling: 0.3mm Minimum line width: 1.0mm Minimum line space: 1.0mm Features: hole copper 25um, thick copper plate, 4OZ inside and outside, blind buried hole, coil plate 【MORE】

Six-layer coil PCB

Material: FR4 Number of layers: 6 layers Process: Immersion Gold Minimum drilling: 0.3mm Minimum line width: 1.0mm Minimum line space: 1.0mm Features: hole copper 25um, thick copper plate, 4OZ inside and outside, blind buried hole, coil plate 【MORE】

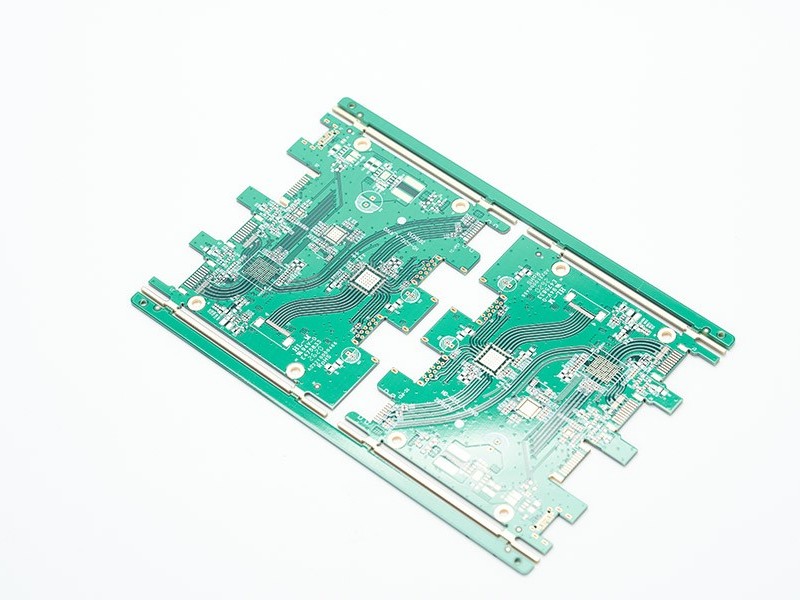

Audio adapter board

Material: FR4 Number of layers: 6 layers Process: Immersion Gold Minimum drilling: 0.25mm Minimum line width: 0.1mm Minimum line space: 0.1mm Features: hole copper 25um, impedance board, need to keep green oil bridge 【MORE】

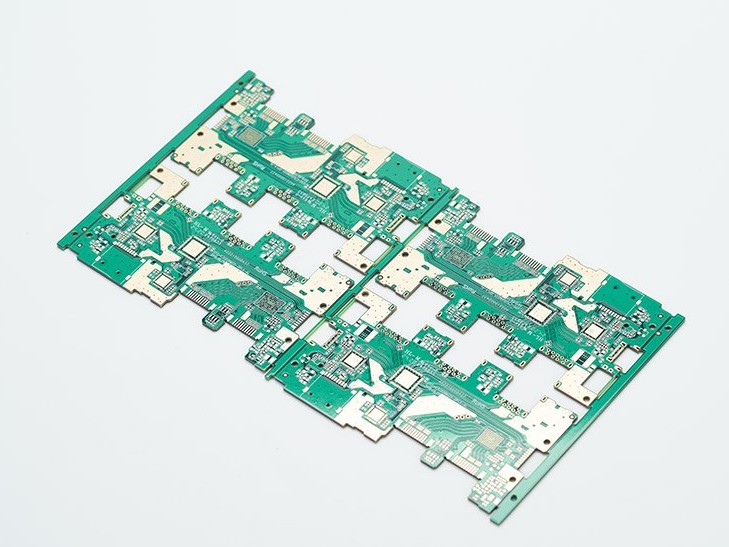

HDMI circuit board

Material: FR4 Number of layers: 6 layers Process: Immersion Gold Minimum drilling: 0.25mm Minimum line width: 0.1mm Minimum line space: 0.1mm Features: Impedance gold plate, size tolerance +/-0.1mm, USB card slot position tolerance is strict, via hole 【MORE】

Blue oil immersion gold plate

Material: FR4 Number of layers: 4 layers Process: Immersion Gold Minimum drilling: 0.25mm Minimum line width: 0.127mm Minimum line space: 0.127mm Features: impedance board 【MORE】

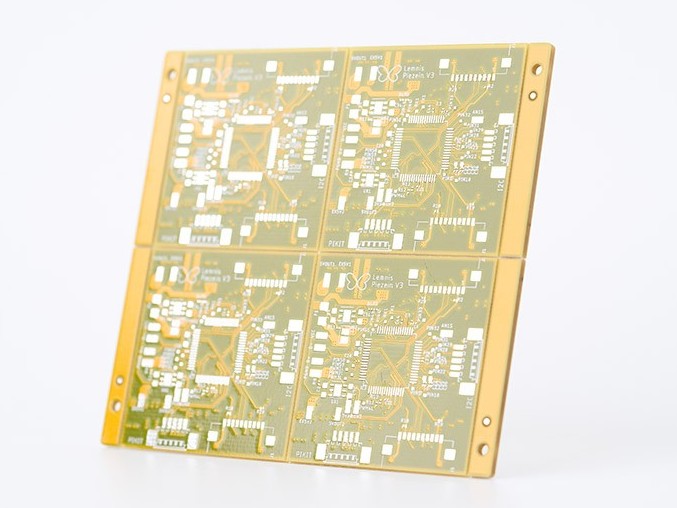

Butter PCB

Material: FR4 Number of layers: 6 layers Process: Lead-free spray tin Minimum drilling: 0.3mm Minimum line width: 0.127mm Minimum line space: 0.127mm Features: high reliability, butter plate 【MORE】

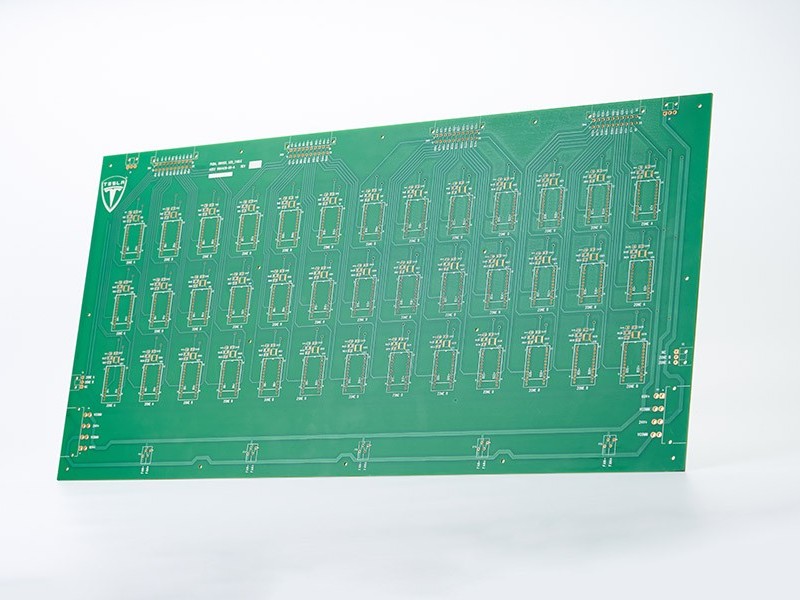

Tesla PCB

Material: FR4 Number of layers: 6 layers Process: Immersion Gold Minimum drilling: 0.3mm Minimum line width: 0.2mm Minimum line space: 0.2mm Features: high reliability, thick copper plate 【MORE】
