Tin Silver Copper PCB

Material: FR4-S1000H Number of layers: 2 layers Process: Lead-free tin spraying (tin, silver and copper) Minimum drilling: 0.3mm Minimum line width: 0.127mm Minimum line space: 0.127mm Features: IPC three-level standard, tin-silver-copper process 【MORE】

Sub-board PCB

Material: FR4 Number of layers: 2 layers Process: Immersion Gold Min drilling hole: 0.3mm Minimum line width: 0.2mm Minimum line space: 0.2mm Features: complex appearance, strict appearance requirements 【MORE】

Computer peripheral products PCB

Material: FR4 Number of layers: 2 layers Process: Immersion Gold Minimum drilling: 0.25mm Minimum line width: 0.1mm Minimum line space: 0.1mm Features: the row holes retain the solder mask, the appearance does not accept scratches, dumb black oil 【MORE】

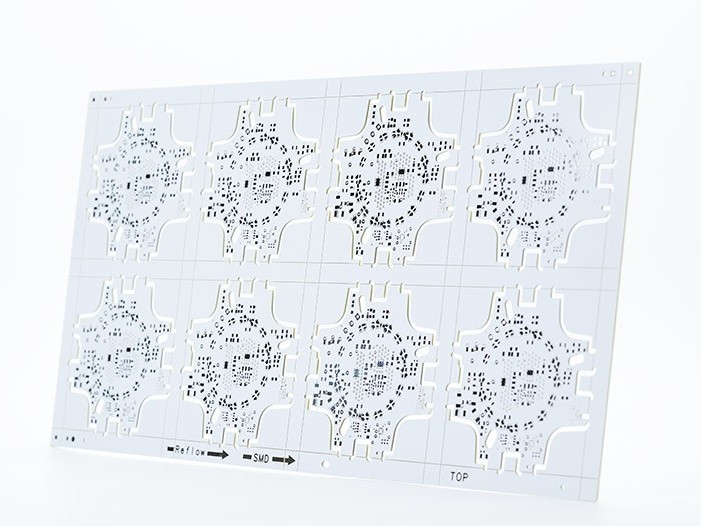

White oil board PCB

Material: FR4 Number of layers: 2 layers Process: Lead-free spray tin Minimum drilling: 0.3mm Minimum line width: 0.3mm Minimum line space: 0.3mm Features: white oil board, foreign order 【MORE】

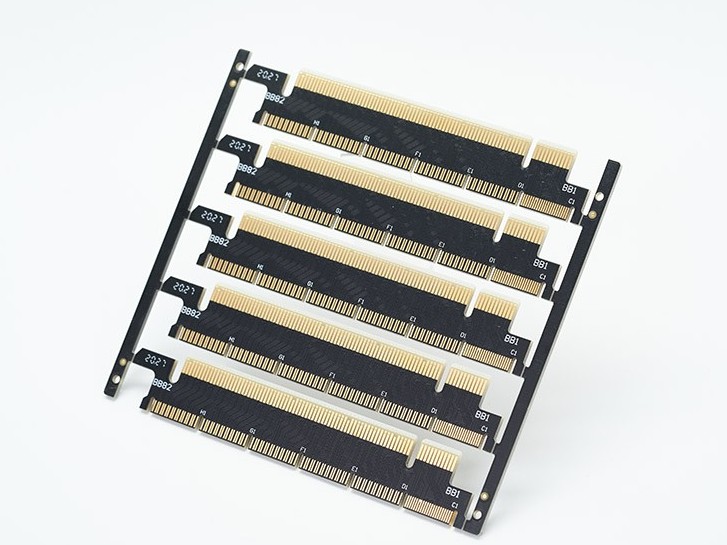

Memory PCB

Material: FR4 Number of layers: 2 layers Process: Immersion Gold Minimum drilling: 0.25mm Minimum line width: 0.1mm Minimum line space: 0.1mm Features: hole copper 25um, gold fingers need beveled edges, and black oil bridges need to be retained 【MORE】

Rogers Circuit Board

Material: RO4350B Number of layers: 2 layers Process: Immersion Gold Minimum drilling: 0.3mm Minimum line width: 0.3mm Minimum line space: 0.3mm Features: sheet RO4350B 【MORE】

White oil PCB

Material: FR4 Number of layers: 2 layers Process: lead-free tin spray Minimum drilling: 0.3mm Minimum line width: 0.127mm Minimum line space: 0.127mm Features: Gao Shi white oil, reflectivity is required, the appearance does not accept scratches, copper leakage 【MORE】

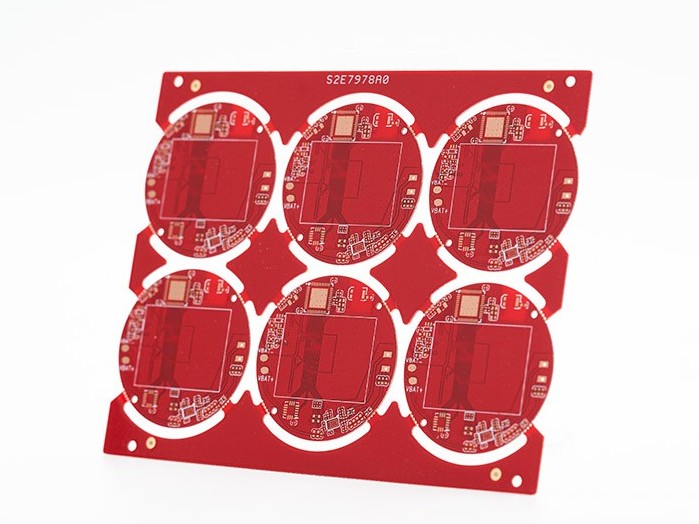

Double-sided red oil board

Material: FR4 Board thickness: 1.6mm Number of layers: 2 layers Process: Immersion Gold Minimum drilling: 0.3mm Minimum line width: 0.127mm Minimum line space: 0.127mm 【MORE】

Double-sided Immersion Gold Board

Material: FR4 Board thickness: 1.6mm Number of layers: 2 layers Process: Immersion Gold Min drilling hole: 0.3mm Minimum line width: 0.127mm Minimum line space: 0.127mm 【MORE】
