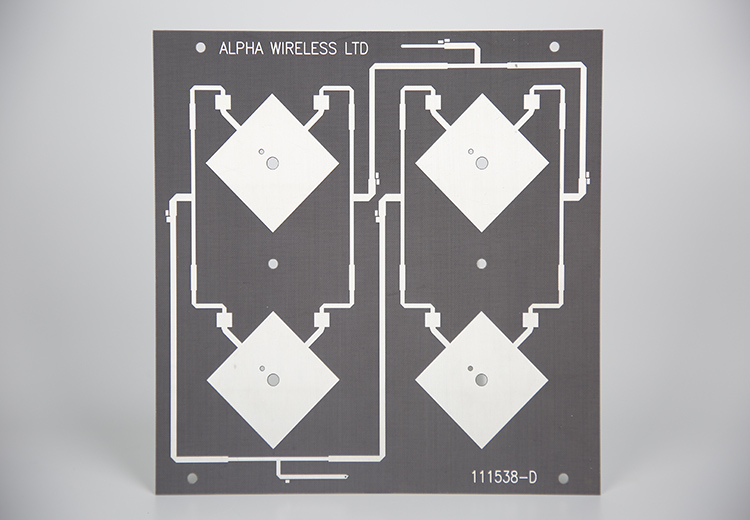

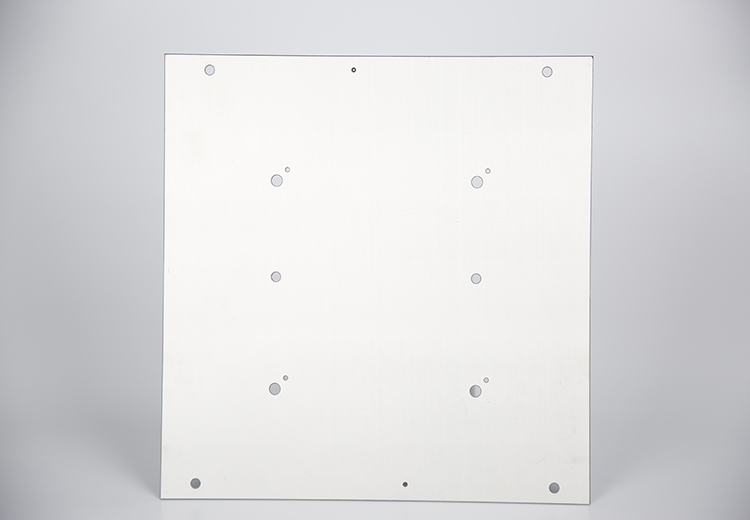

High frequency circuit board

Substrate: FJY255A Number of layers: 2 layers Dielectric constant: 2.55 Board thickness: 0.8mm Thickness of outer copper foil: 1oz Surface treatment method: Shen tin Minimum hole diameter: 0.5mm

Advisory

National Hotline

+86 0755-81772911

High frequency circuit board
Substrate:	FJY255A	Layers:	2 layers
Dielectric constant:	2.55	Board thickness:	0.8mm
Thickness of outer copper foil:	1oz	Inner copper foil thickness	1oz
Surface treatment method:	Shen tin	Minimum hole diameter:	0.5mm
Minimum line width:	1.18mm	Minimum line space:	0.32mm
Application areas:	Communication industry	Features:	high frequency sheet, low dielectric constant
Warm reminder: Due to the particularity of the product, customized products will not be returned, please understand!

Widely used in: communications, consumer electronics, industrial control, security, automobiles, power supplies, smart home, medical, military and other industries.
