Material: FR4 Number of layers: 6 layers Process: Immersion Gold Minimum drilling: 0.25mm Minimum line width: 0.1mm Minimum line space: 0.1mm Features: hole copper 25um, impedance board, need to keep green oil bridge
+86 0755-81772911

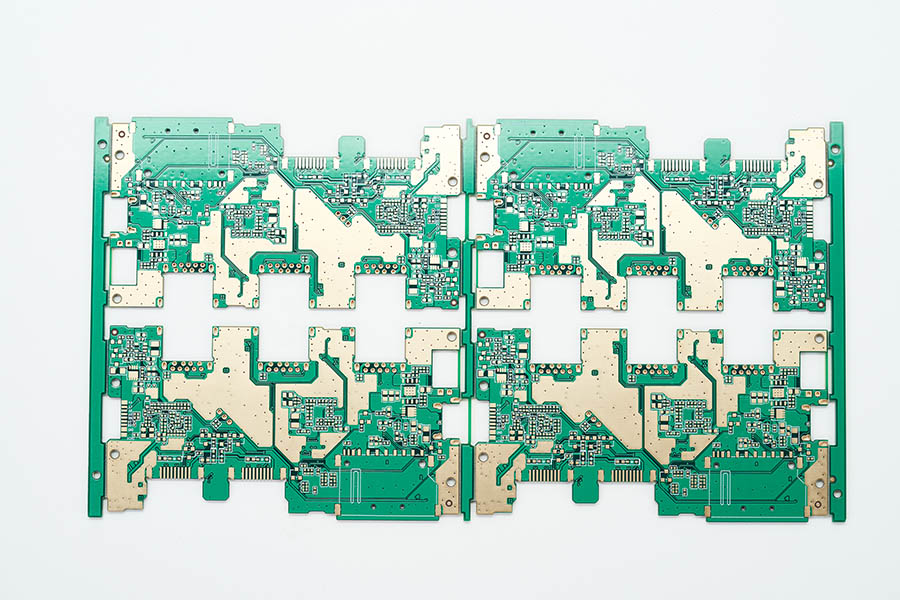

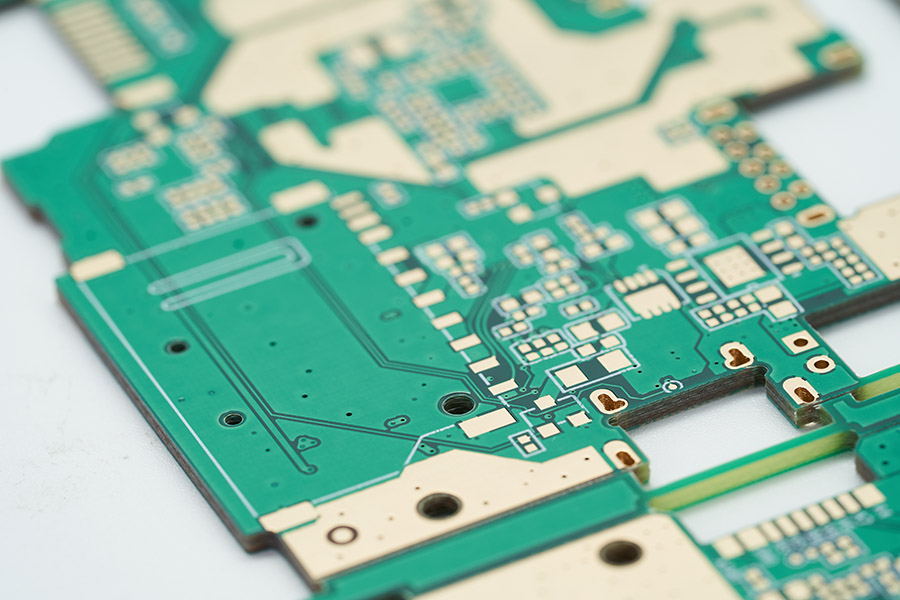

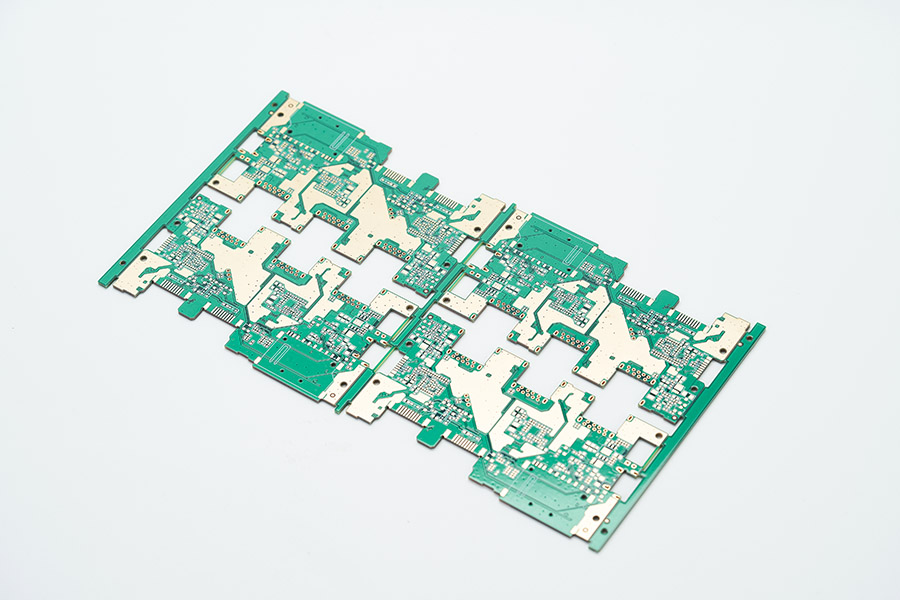

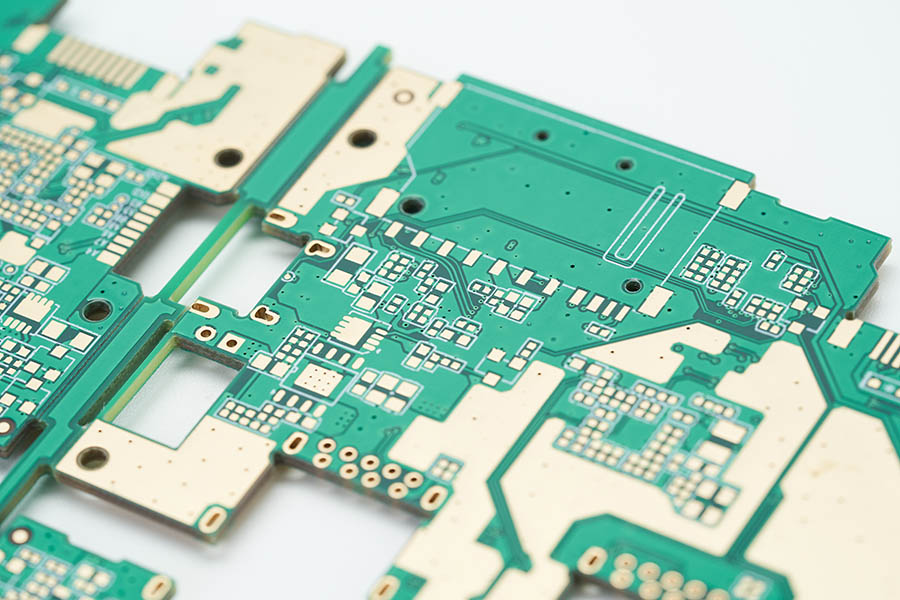

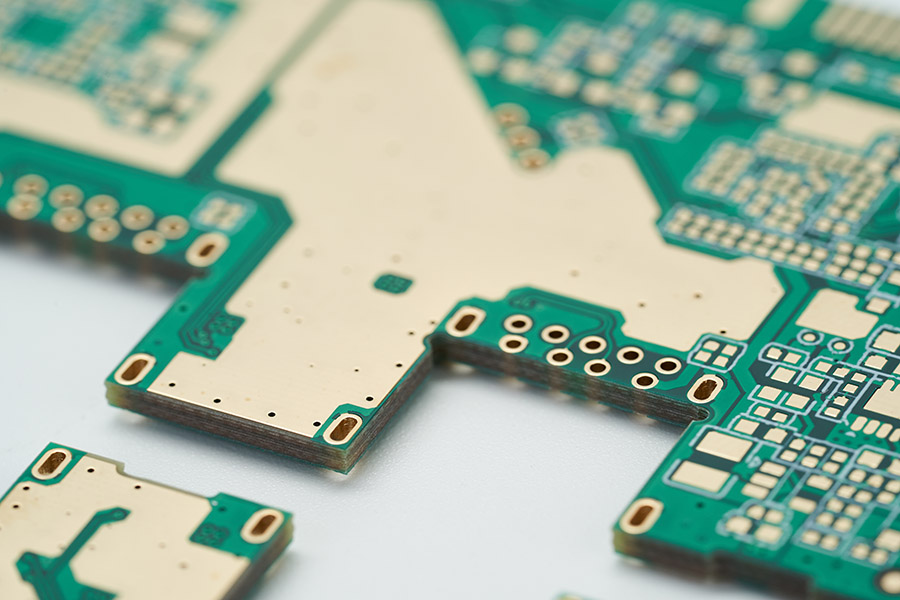

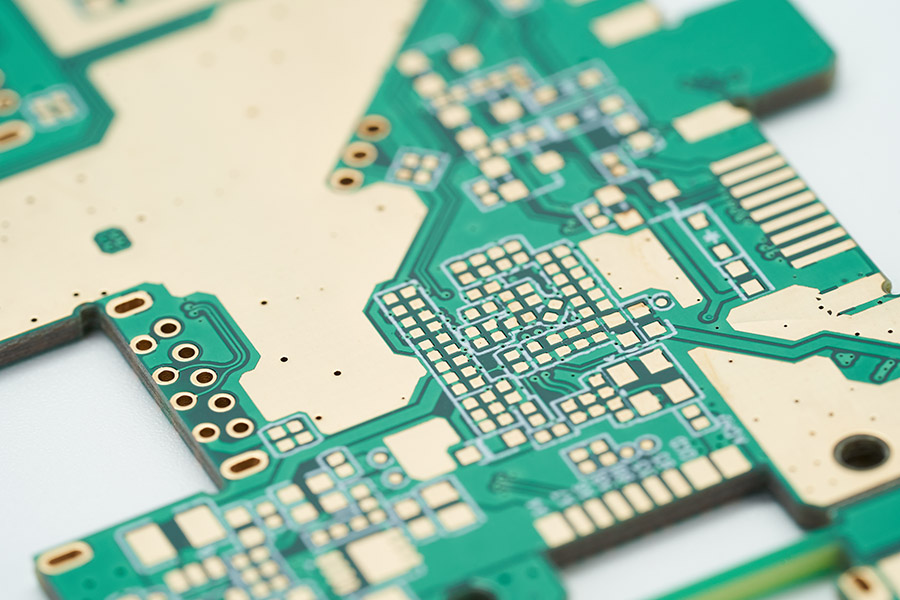

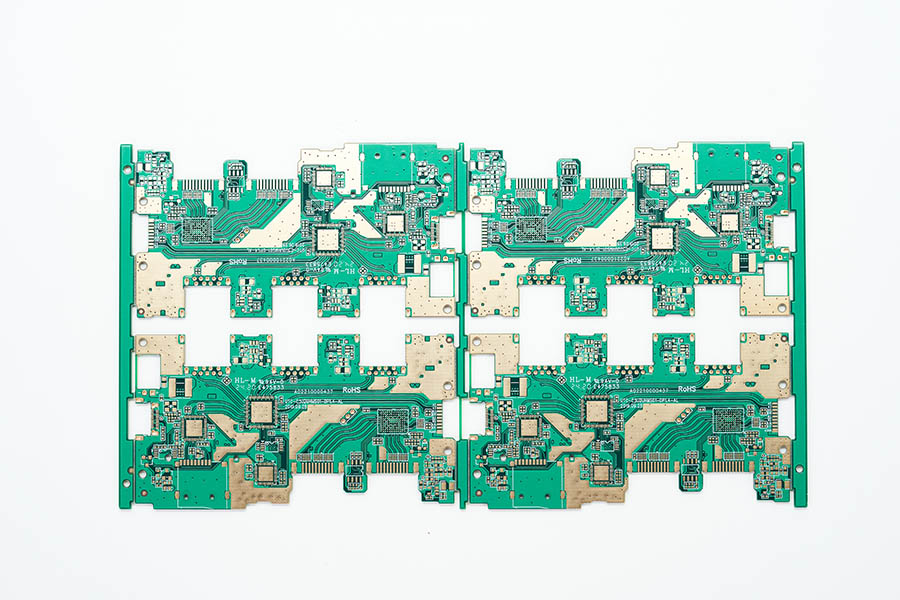

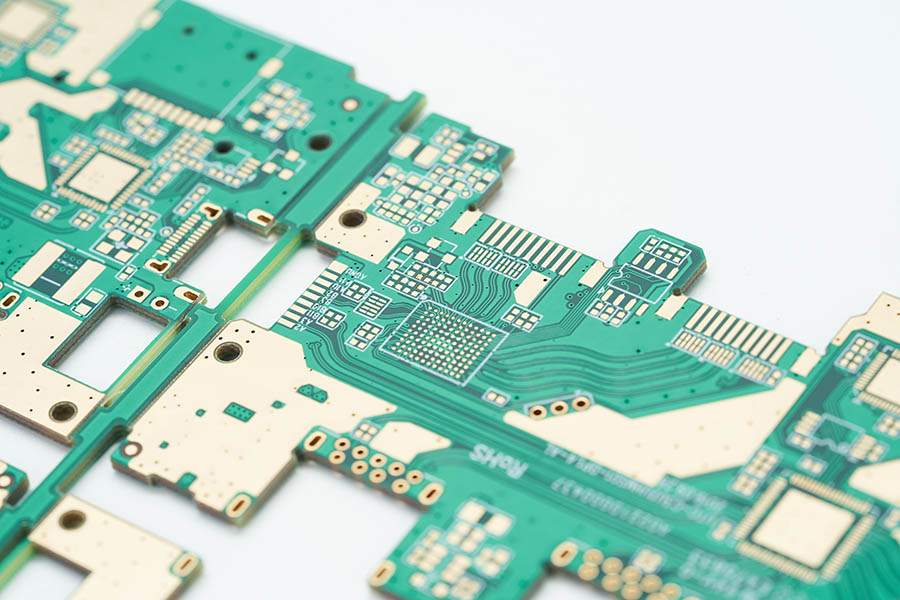

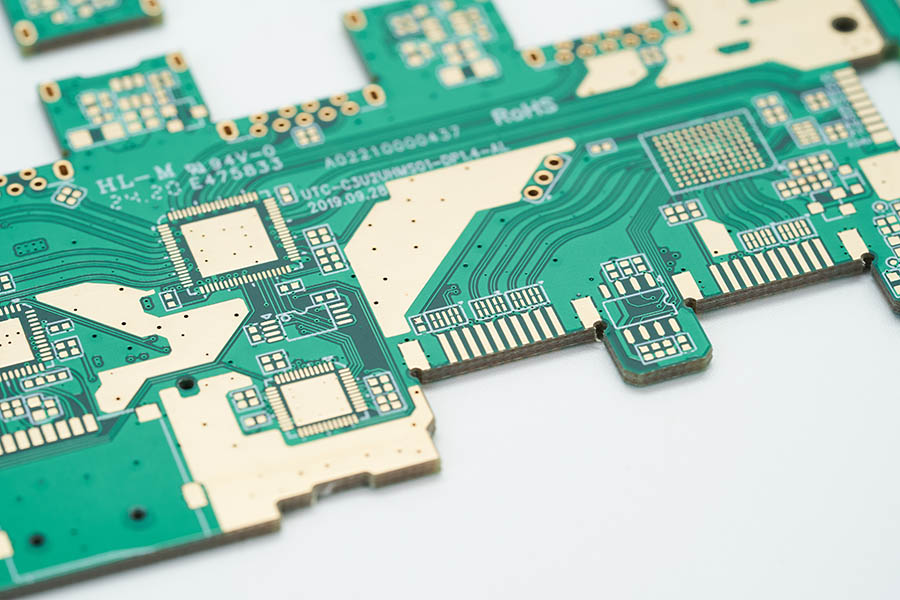

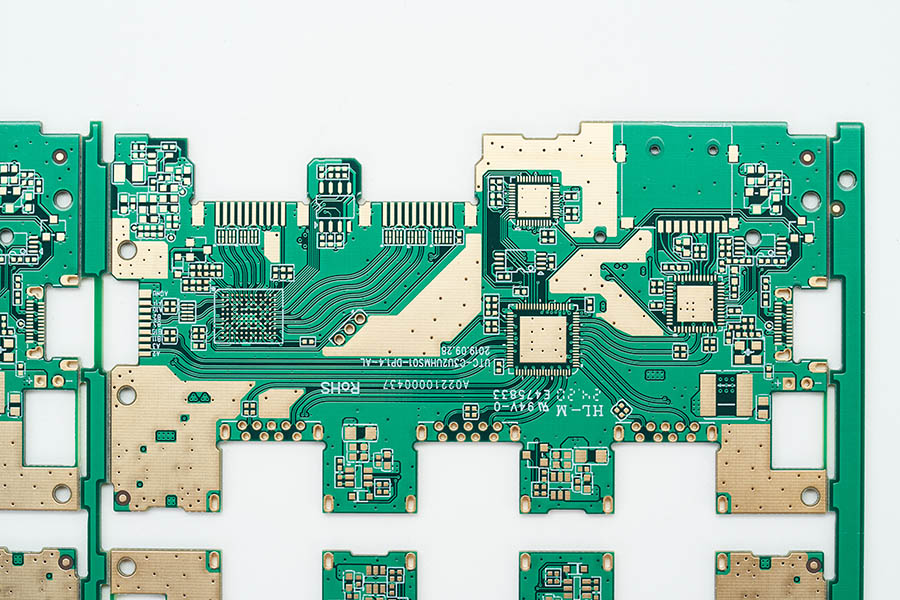

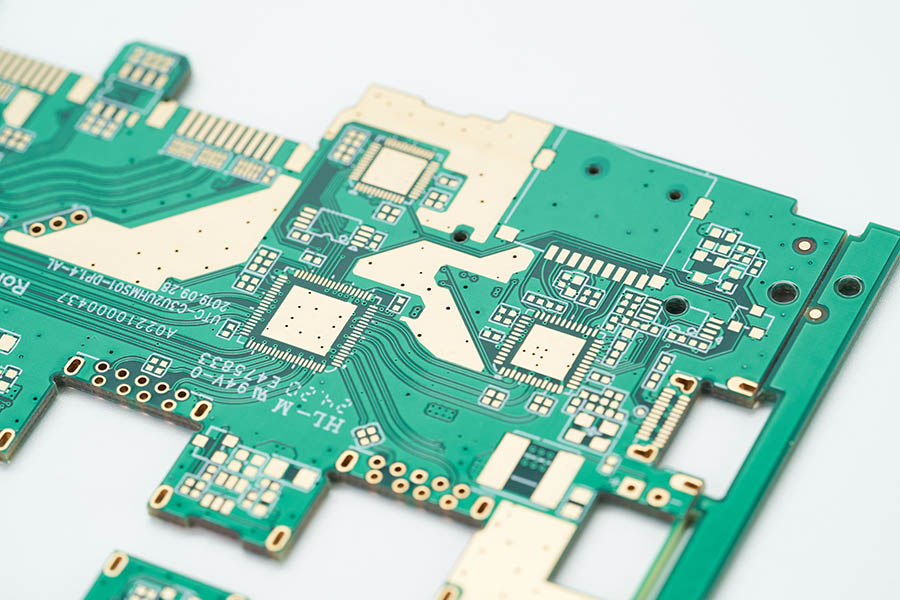

| Audio adapter board | |||
| Substrate: | FR4 | Layers: | 6 layers |
| Dielectric constant: | 4.3 | Board thickness: | 1.6mm |
| Thickness of outer copper foil: | 1oz | Inner copper foil thickness: | 1oz |
| Surface treatment method: | Immersion gold | Minimum hole diameter: | 0.25mm |
| Minimum line width: | 0.1mm | Minimum line space: | 0.1mm |
| Application area: | Audio adapter | Features: | hole copper 25um, impedance board, need to retain green oil bridge |
Widely used in: communications, consumer electronics, industrial control, security, automobiles, power supplies, smart home, medical, military and other industries.
