Material: FR4 Number of layers: 6 layers Process: Immersion Gold Minimum drilling: 0.25mm Minimum line width: 0.1mm Minimum line space: 0.1mm Features: board thickness tolerance +/-0.05mm, size tolerance +/-0.01mm, impedance board, via plug hole
+86 0755-81772911

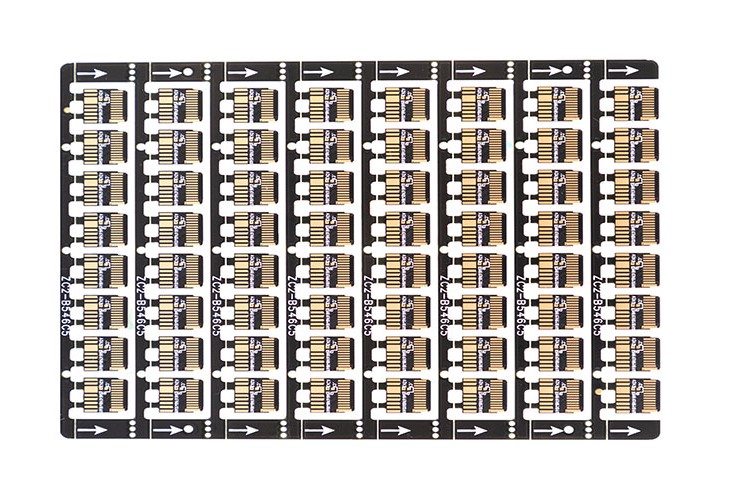

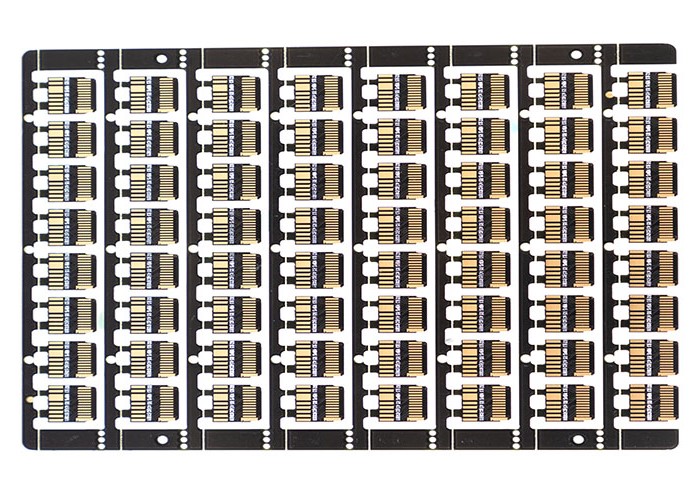

| Type-C connector circuit board | |||
| Substrate: | FR4 | Layers: | 6 layers |
| Dielectric constant: | 4.3 | Board thickness: | 0.86mm |
| Thickness of outer copper foil: | 1oz | Inner copper foil thickness: | 1oz |
| Surface treatment method: | Immersion gold | Minimum hole diameter: | 0.25mm |
| Minimum line width: | 0.1mm | Minimum line space: | 0.1mm |
| Application area: | Type-c connector | Features: | Board thickness tolerance +/-0.05mm, size tolerance +/-0.01mm, impedance board, via plug holes are not allowed to redden |
![399c3ce2e3574f76815b951c89288a24_60[1].jpg](/upload/default/20210201/84ca9f06ef5bcb7464330b3eea4ad416.jpg "399c3ce2e3574f76815b951c89288a24_60[1].jpg")
![399c3ce2e3574f76815b951c89288a24_58[1].jpg](/upload/default/20210201/9309732d2f46e4cc18c98480126a7c5b.jpg "399c3ce2e3574f76815b951c89288a24_58[1].jpg")
Widely used in: communications, consumer electronics, industrial control, security, automobiles, power supplies, smart home, medical, military and other industries.
