Material: FR4 Number of layers: 4 layers Process: Immersion Gold Minimum drilling: 0.25mm Minimum line width: 0.127mm Minimum line space: 0.127mm Features: board thickness tolerance +/-0.05mm, size tolerance +/-0.01mm, impedance board
+86 0755-81772911

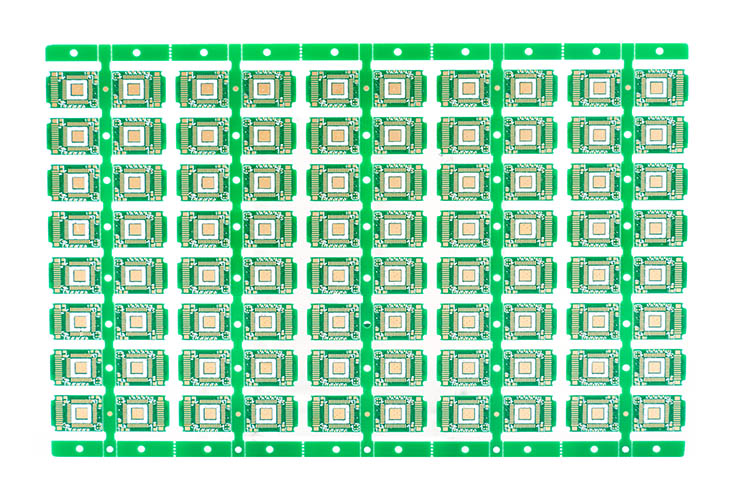

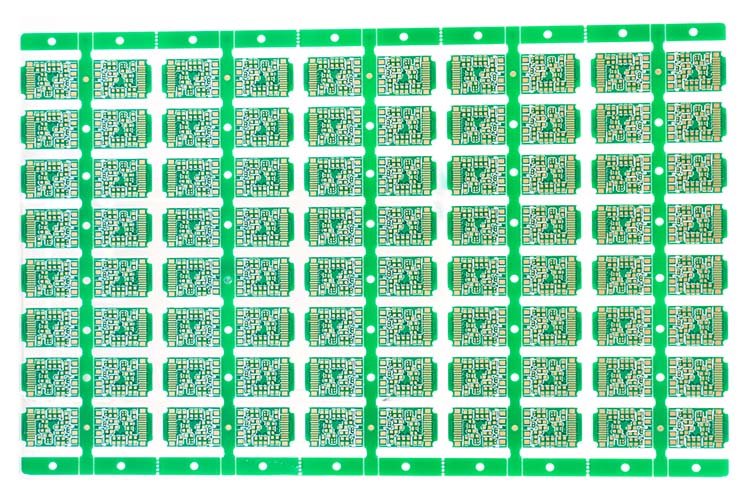

| Type-C audio circuit board | |||
| Substrate: | FR4 | Layers: | 4 layers |
| Dielectric constant: | 4.3 | Board thickness: | 0.8mm |
| Thickness of outer copper foil: | 1oz | Inner copper foil thickness: | 1oz |
| Surface treatment method: | Immersion gold | Minimum hole diameter: | 0.25mm |
| Minimum line width: | 0.127mm | Minimum line space: | 0.127mm |
| Application area: | Type-c connector | Features: | BGA clamp wire 3mil, half hole board, resin plug hole, halogen-free, hole copper 25um impedance board |
![399c3ce2e3574f76815b951c89288a24_50[1].jpg](/upload/default/20210201/b372eee97ac33cd6331dfa5939b0accc.jpg "399c3ce2e3574f76815b951c89288a24_50[1].jpg")
![399c3ce2e3574f76815b951c89288a24_48[1].jpg](/upload/default/20210201/936c57f8ff862475756c702294b2308b.jpg "399c3ce2e3574f76815b951c89288a24_48[1].jpg")
Widely used in: communications, consumer electronics, industrial control, security, automobiles, power supplies, smart home, medical, military and other industries.
