Material: FR4- halogen free Number of layers: 4 layers Process: Immersion gold & resin plug hole Minimum drilling: 0.25mm Minimum line width: 0.08mm Minimum line space: 0.08mm Features: BGA clamping wire 3mil, half hole board, resin plug hole, halogen-free, hole copper 25um impedance board
+86 0755-81772911

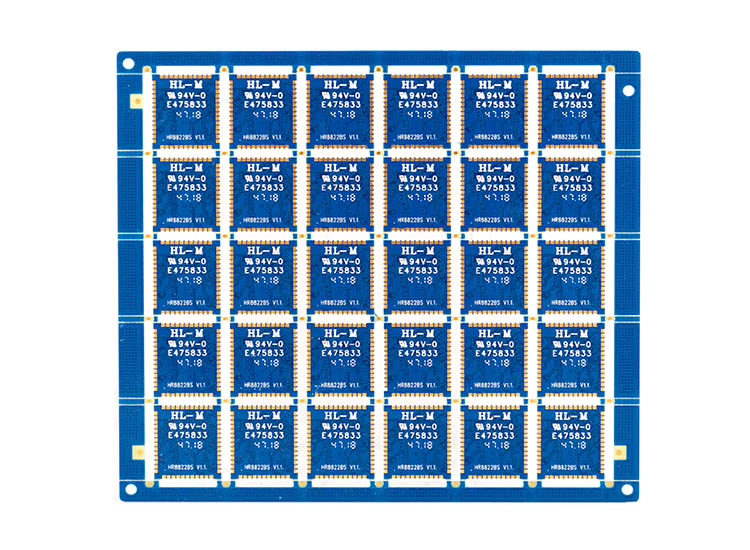

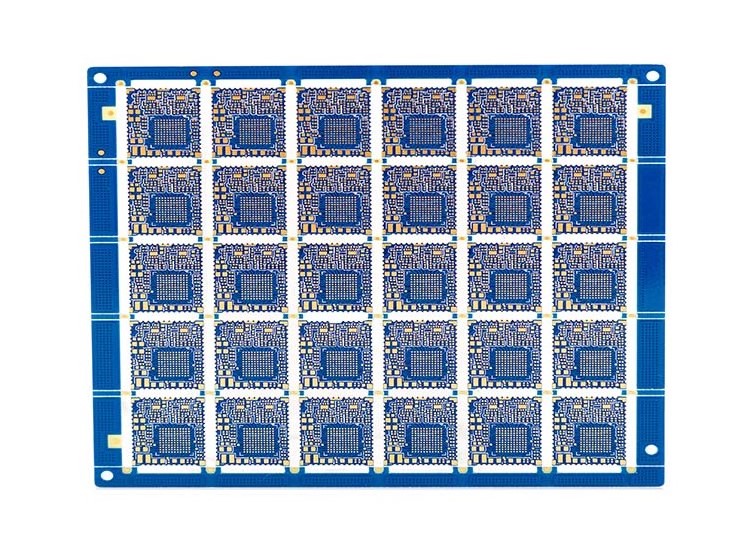

| 5G module circuit board | |||
| Substrate: | FR4-halogen free | Layers: | 4 layers |
| Dielectric constant: | 4.3 | Board thickness: | 0.8mm |
| Thickness of outer copper foil: | 1oz | Inner copper foil thickness: | 1oz |
| Surface treatment method: | Immersion gold | Minimum hole diameter: | 0.25mm |
| Minimum line width: | 0.08mm | Minimum line space: | 0.08mm |
| Application area: | 5G communication | Features: | BGA clamp wire 3mil, half hole board, resin plug hole, halogen-free, hole copper 25um impedance board |
![399c3ce2e3574f76815b951c89288a24_40[1].jpg](/upload/default/20210201/fd65714b79fcbde7f19701db02696423.jpg "399c3ce2e3574f76815b951c89288a24_40[1].jpg")
![399c3ce2e3574f76815b951c89288a24_38[1].jpg](/upload/default/20210201/70f0c2abf342b993d97b0d1e53f48de8.jpg "399c3ce2e3574f76815b951c89288a24_38[1].jpg")
Widely used in: communications, consumer electronics, industrial control, security, automobiles, power supplies, smart home, medical, military and other industries.
