Material: FR4-S1141 Number of layers: 4 layers Process: Immersion Gold Minimum drilling: 0.25mm Minimum line width: 0.127mm Minimum line space: 0.127mm Features: hole copper 25um, does not accept oil and line, requires stable performance
+86 0755-81772911

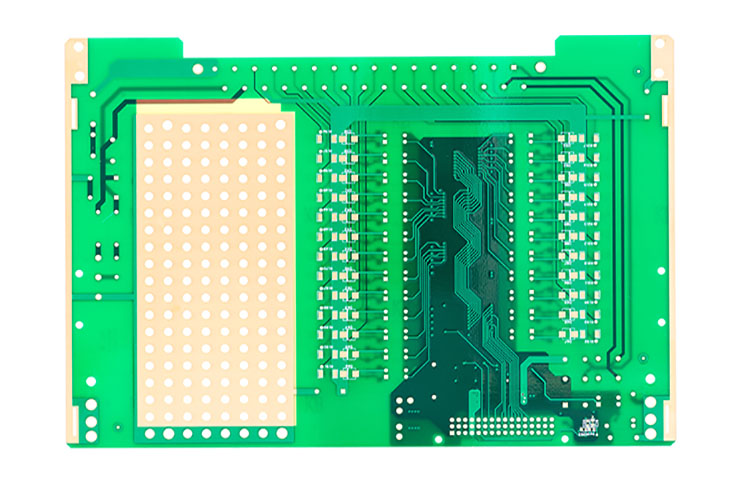

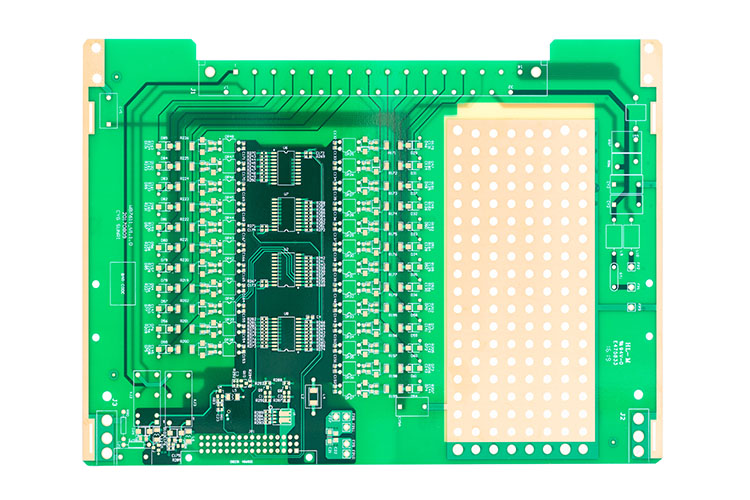

| Grid control circuit board | |||
| Substrate: | FR4-S1141 | Layers: | 4 layers |
| Dielectric constant: | 4.3 | Board thickness: | 1.6mm |
| Thickness of outer copper foil: | 1oz | Inner copper foil thickness: | 1oz |
| Surface treatment method: | Immersion gold | Minimum hole diameter: | 0.25mm |
| Minimum line width: | 0.127mm | Minimum line space: |
0.127mm |
| Application area: | China Southern Power Grid Control Panel | Features: | 25um copper hole, do not accept replenishing line, require stable performance |
Widely used in: communications, consumer electronics, industrial control, security, automobiles, power supplies, smart home, medical, military and other industries.
