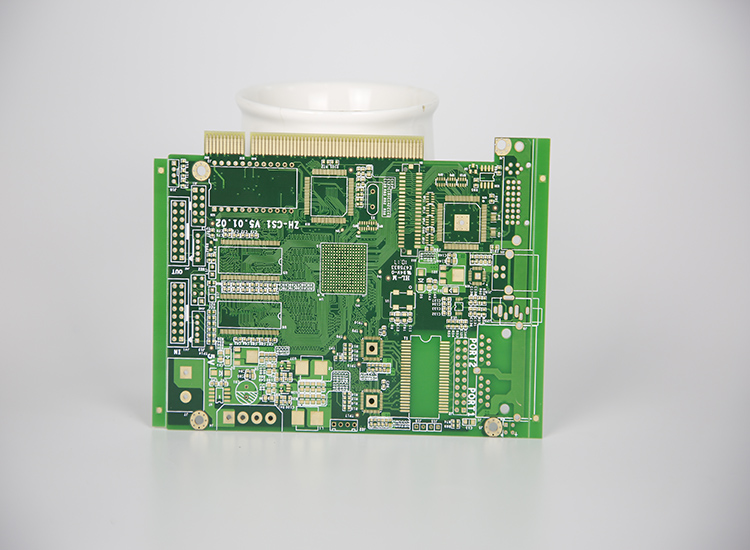

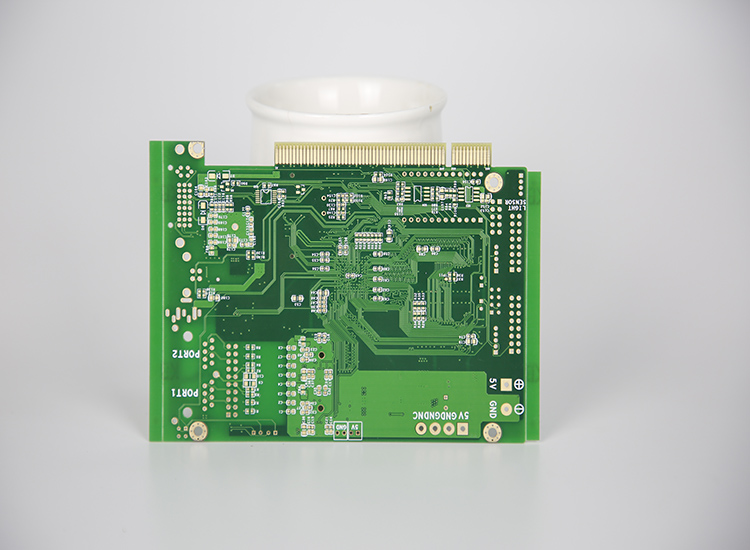

High precision gold finger circuit board

Material: FR4 Number of layers: 8 layers Process: Immersion Gold Minimum drilling: 0.2mm Minimum line width: 0.1mm Minimum line space: 0.1mm Features: impedance requirements, electric gold fingers, precise wiring

Advisory

National Hotline

+86 0755-81772911

High precision gold finger circuit board
Substrate:	FR4-TG170	Layers:	8 layers
Dielectric constant:	4.3	Board thickness:	1.6mm
Thickness of outer copper foil:	1oz	Inner copper foil thickness:	1oz
Surface treatment method:	Immersion gold	Minimum hole diameter:	0.2mm
Minimum line width:	0.1mm	Minimum line space:	0.1mm
Application area:	computer	Features:	There are impedance requirements, electric gold fingers, precise wiring
Warm reminder: Due to the particularity of the product, customized products will not be returned, please understand!

Widely used in: communications, consumer electronics, industrial control, security, automobiles, power supplies, smart home, medical, military and other industries.
