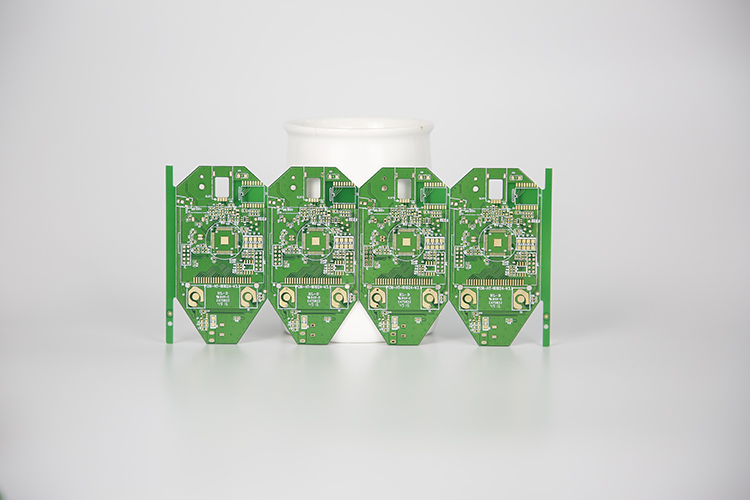

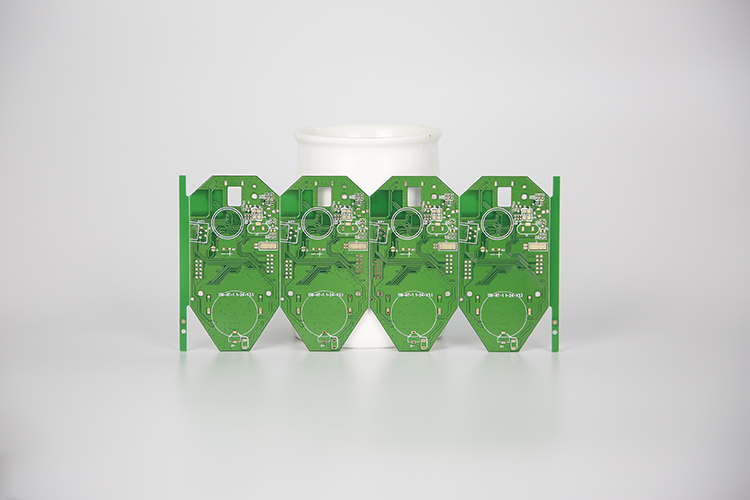

| Medical blood pressure monitor PCB | |||
| Substrate: | FR4 | Layers: | 4 layers |
| Dielectric constant: | 4.3 | Board thickness: | 1.6mm |
| Thickness of outer copper foil: | 1oz | Inner copper foil thickness: | 1oz |
| Surface treatment method: | Immersion gold | Minimum hole diameter: | 0.3mm |
| Minimum line width: | 0.127mm | Minimum line space: | 0.127mm |
| Application area: | Medical blood pressure monitor | Features: | Strict appearance requirements |
| Warm reminder: Due to the particularity of the product, customized products will not be returned, please understand! | |||
![ec95f74e68244f9e8f83a5858f27841a_36[1].jpg](/upload/default/20210202/73d2edd477a5441e8f583249cbed5a5b.jpg "ec95f74e68244f9e8f83a5858f27841a_36[1].jpg")
![ec95f74e68244f9e8f83a5858f27841a_34[1].jpg](/upload/default/20210202/b353251e65181cb25a6539d0895fe125.jpg "ec95f74e68244f9e8f83a5858f27841a_34[1].jpg")
Widely used in: communications, consumer electronics, industrial control, security, automobiles, power supplies, smart home, medical, military and other industries.
