Material: FR4 Number of layers: 4 layers Process: Immersion Gold Minimum drilling: 0.2mm Minimum line width: 0.127mm Minimum line space: 0.127mm Features: Strict appearance requirements
+86 0755-81772911

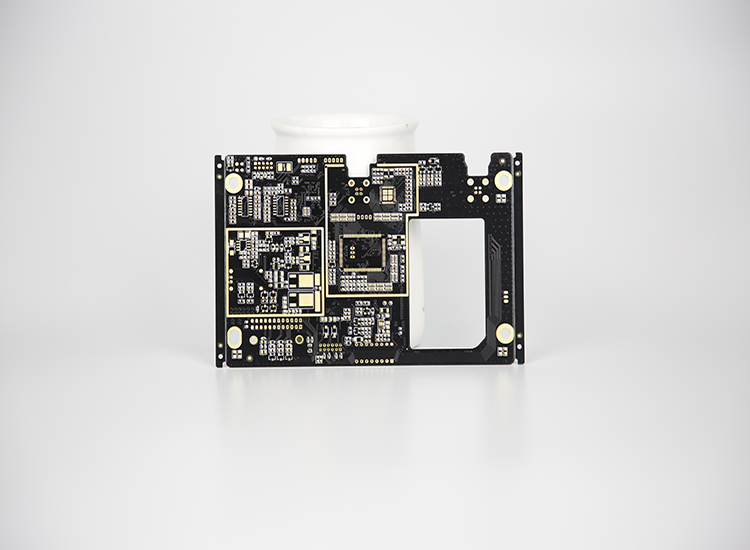

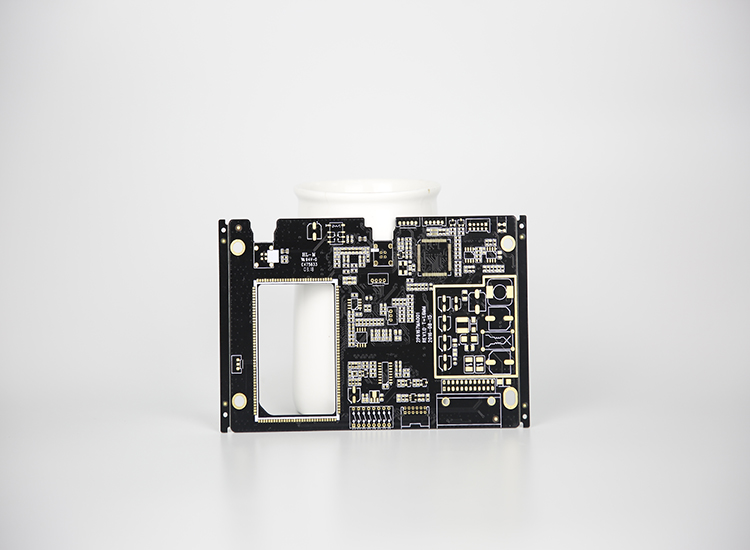

| Car navigator circuit board | |||
| Substrate: | FR4 | Layers: | 4 layers |
| Dielectric constant: | 4.3 | Board thickness: | 1.6mm |
| Thickness of outer copper foil: | 1oz | Inner copper foil thickness: | 1oz |
| Surface treatment method: | Immersion gold | Minimum hole diameter: | 0.2mm |
| Minimum line width: | 0.127mm | Minimum line space: | 0.127mm |
| Application area: | Car driving recorder | Features: | Strict appearance requirements |
| Warm reminder: Due to the particularity of the product, customized products will not be returned, please understand! | |||
![ec95f74e68244f9e8f83a5858f27841a_13[1].jpg](/upload/default/20210202/203d0bf4f8c25ba13fbe5437d52b7b85.jpg "ec95f74e68244f9e8f83a5858f27841a_13[1].jpg")
![ec95f74e68244f9e8f83a5858f27841a_11[1].jpg](/upload/default/20210202/8bfef00524367426eb6eee71fe6cabe0.jpg "ec95f74e68244f9e8f83a5858f27841a_11[1].jpg")
Widely used in: communications, consumer electronics, industrial control, security, automobiles, power supplies, smart home, medical, military and other industries.
