Material: FR4 Number of layers: 6 layers Process: Immersion Gold Minimum drilling: 0.2mm Minimum line width: 0.127mm Minimum line space: 0.127mm Features: Strict appearance requirements, oil replenishment line is not accepted, special control panel warping
+86 0755-81772911

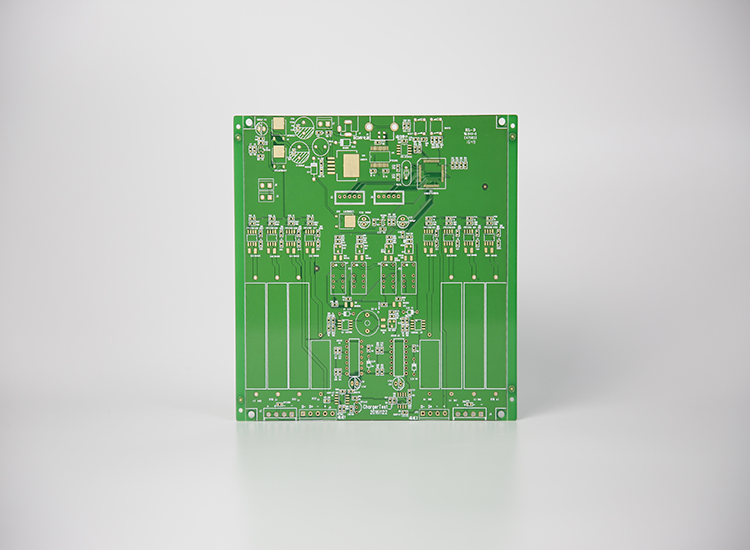

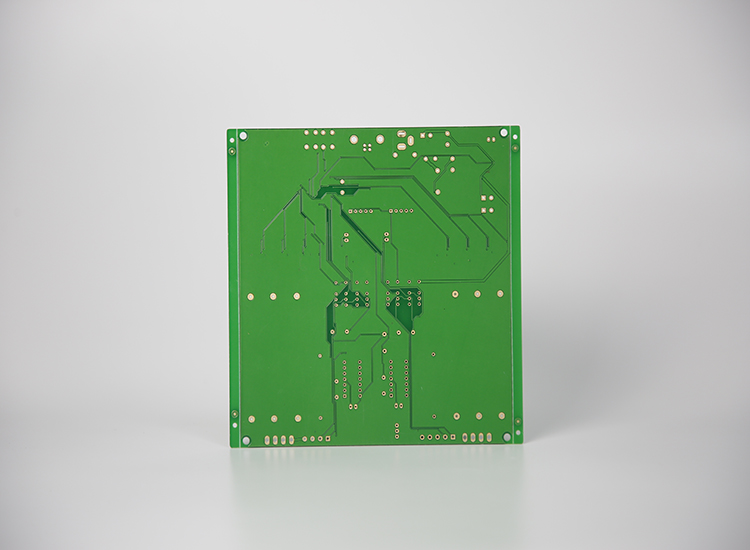

| Industrial control circuit board | |||
| Substrate: | FR4 | Layers: | 6 layers |
| Dielectric constant: | 4.3 | Board thickness: | 1.6mm |
| Thickness of outer copper foil: | 1oz | Inner copper foil thickness: | 1oz |
| Surface treatment method: | Immersion gold | Minimum hole diameter: | 0.3mm |
| Minimum line width: | 0.127mm | Minimum line space: | 0.127mm |
| Application area: | Industrial control | Features: | Strict appearance requirements, oil replenishment line is not accepted, special control of board warping |
| Warm reminder: Due to the particularity of the product, customized products will not be returned, please understand! | |||
![aec4bd59c0134103acdd8324aaead60d_102[1].jpg](/upload/default/20210202/d0a9f1cc3bf11763f50f2939dba5c790.jpg "aec4bd59c0134103acdd8324aaead60d_102[1].jpg")
![aec4bd59c0134103acdd8324aaead60d_100[1].jpg](/upload/default/20210202/1098d97a58f5510d47c41abaccac7731.jpg "aec4bd59c0134103acdd8324aaead60d_100[1].jpg")
Widely used in: communications, consumer electronics, industrial control, security, automobiles, power supplies, smart home, medical, military and other industries.
