Material: FR4-TG170 Number of layers: 8 layers Process: Immersion Gold Minimum drilling: 0.2mm Minimum line width: 0.085mm Minimum line space: 0.085mm Features: high precision circuit board, inner hole to line 0.16mm, need to control impedance
+86 0755-81772911

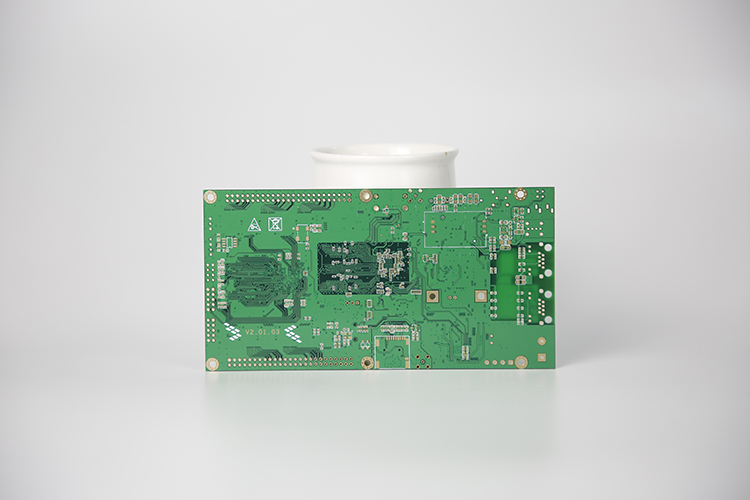

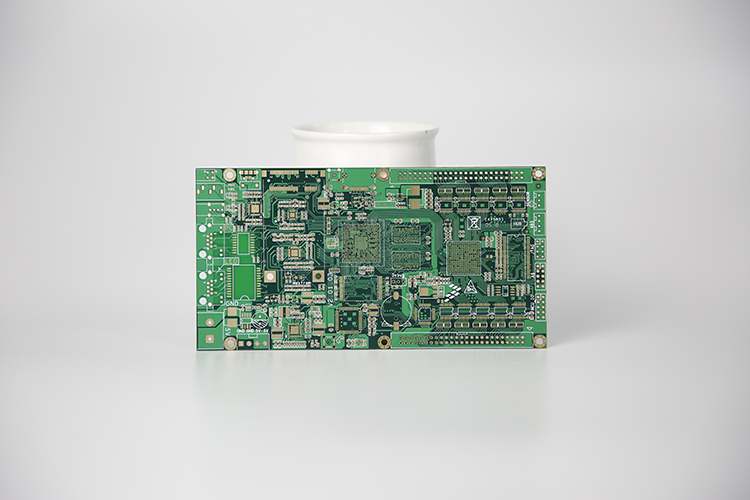

| High precision circuit board | |||
| Substrate: | FR4-TG170 | Layers: | 8 layers |
| Dielectric constant: | 4.3 | Board thickness: | 1.0mm |
| Thickness of outer copper foil: | 1oz | Inner copper foil thickness: | 1oz |
| Surface treatment method: | Immersion gold | Minimum hole diameter: | 0.2mm |
| Minimum line width: | 0.085mm | Minimum line space: | 0.085mm |
| Application area: | Communication industry | Features: | High-precision circuit board, inner hole to line 0.16mm, need to control impedance |
| Warm reminder: Due to the particularity of the product, customized products will not be returned, please understand! | |||
![aec4bd59c0134103acdd8324aaead60d_69[1].jpg](/upload/default/20210202/bed414841a10e3c2cf0b83fcdfd68bb0.jpg "aec4bd59c0134103acdd8324aaead60d_69[1].jpg")
![aec4bd59c0134103acdd8324aaead60d_67[1].jpg](/upload/default/20210202/4d856367d8882e9e9f2ffee96af11a75.jpg "aec4bd59c0134103acdd8324aaead60d_67[1].jpg")
Widely used in: communications, consumer electronics, industrial control, security, automobiles, power supplies, smart home, medical, military and other industries.
