Material: FR4-S1141 Number of layers: 4 layers Process: Immersion Gold Minimum drilling: 0.3mm Minimum line width: 0.2mm Minimum line space: 0.2mm Features: Need to control the impedance, the area of immersion gold is super-conventional, and the plate needs raw materials
+86 0755-81772911

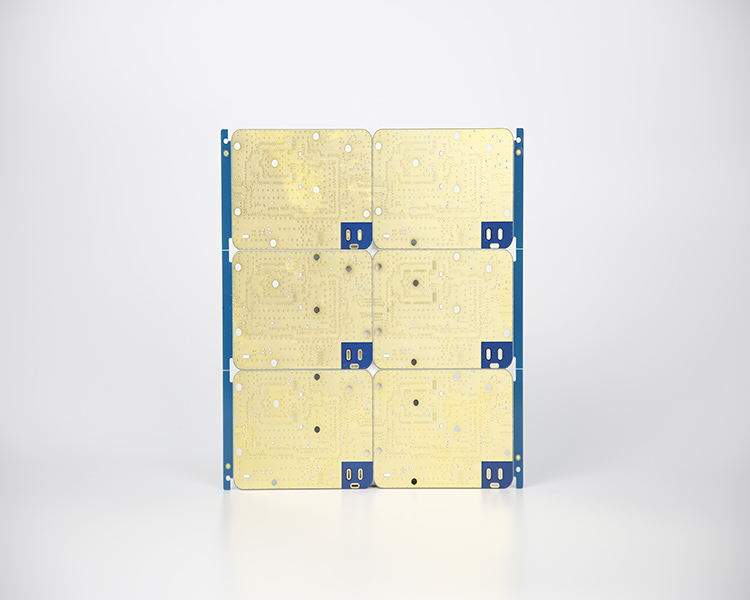

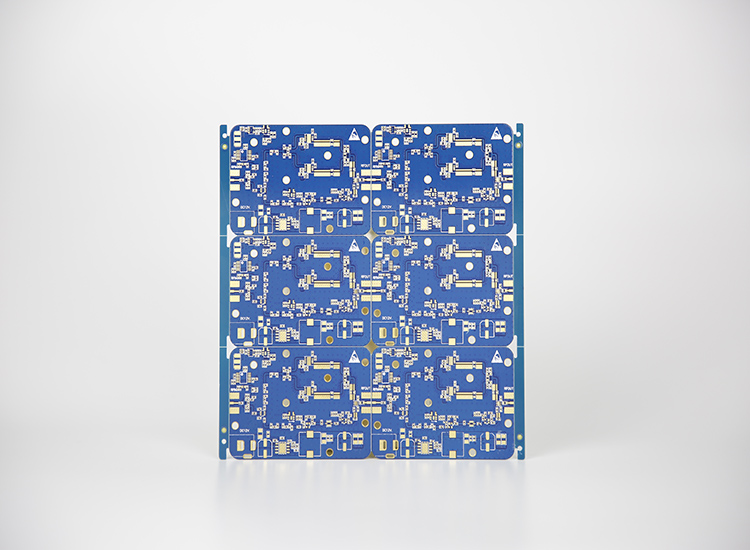

| Communication circuit board | |||
| Substrate: | FR4-S1141 | Layers: | 4 layers |
| Dielectric constant: | 4.3 | Board thickness: | 1.6mm |
| Thickness of outer copper foil: | 1oz | Inner copper foil thickness: | 1oz |
| Surface treatment method: | Immersion gold | Minimum hole diameter: | 0.3mm |
| Minimum line width: | 0.2mm | Minimum line space: | 0.2mm |
| Application area: | Communication industry | Features: | Need to control the impedance, the area of immersion gold is super-conventional, and the plate needs raw materials |
| Warm reminder: Due to the particularity of the product, customized products will not be returned, please understand! | |||
![aec4bd59c0134103acdd8324aaead60d_38[1].jpg](/upload/default/20210202/78894250889c765fe9012bc2e9a78ecb.jpg "aec4bd59c0134103acdd8324aaead60d_38[1].jpg")
![aec4bd59c0134103acdd8324aaead60d_36[1].jpg](/upload/default/20210202/fecdd70848cd4a76122e4d55c2a988b2.jpg "aec4bd59c0134103acdd8324aaead60d_36[1].jpg")
Widely used in: communications, consumer electronics, industrial control, security, automobiles, power supplies, smart home, medical, military and other industries.
