Material: Shengyi S1000-2 Number of layers: 10 layers Process: Immersion Gold Minimum drilling: 0.2mm Minimum line width: 0.1mm Minimum line space: 0.1mm Features: Need to control single-ended differential impedance, line width and line spacing are precise, BGA via plugs do not allow false
+86 0755-81772911

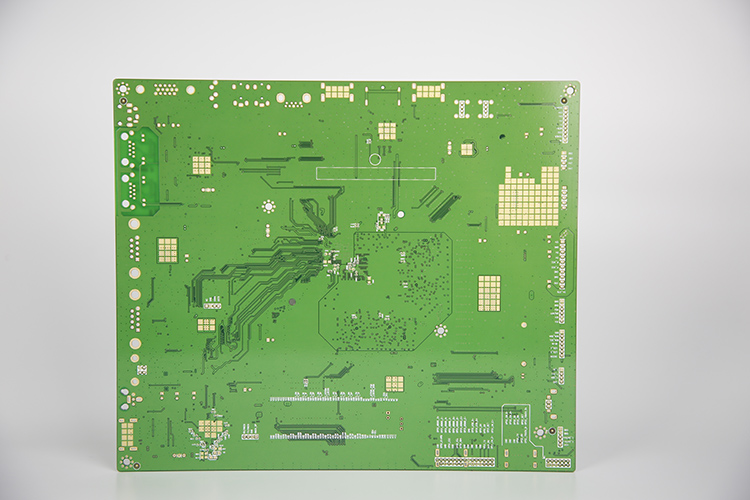

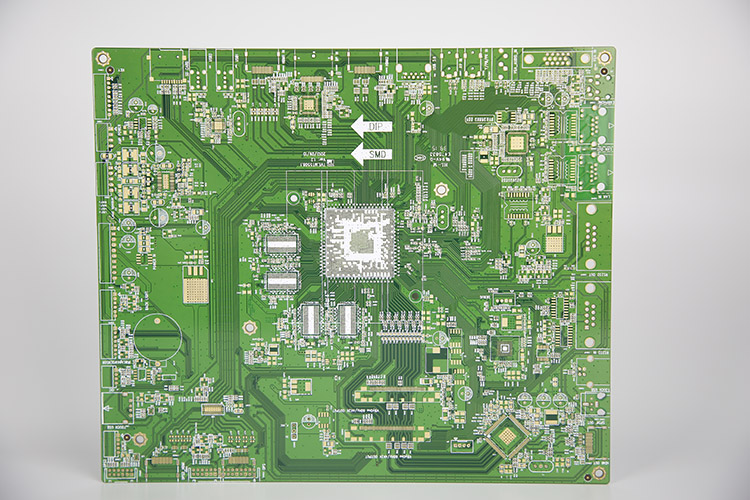

| High TG impedance board | |||
| Substrate: | Shengyi S1000-2 | Layers: | 10 layers |
| Dielectric constant: | 4.3 | Board thickness: | 1.6mm |
| Thickness of outer copper foil: | 1oz | Inner copper foil thickness: | 1oz |
| Surface treatment method: | Immersion gold | Minimum hole diameter: | 0.2mm |
| Minimum line width: | 0.1mm | Minimum line space: | 0.1mm |
| Application area: | Industrial control industry | Features: | Single-ended differential impedance needs to be controlled, line width and line spacing are precise, BGA via plugs do not allow false copper leakage, and warpage needs to be strictly controlled |
| Warm reminder: Due to the particularity of the product, customized products will not be returned, please understand! | |||
![aec4bd59c0134103acdd8324aaead60d_13[1].jpg](/upload/default/20210202/b13202cc3fb59b0b270dc37077e4616c.jpg "aec4bd59c0134103acdd8324aaead60d_13[1].jpg")
![aec4bd59c0134103acdd8324aaead60d_11[1].jpg](/upload/default/20210202/7ecb3e1fc688c470ac432a6e733b8eb2.jpg "aec4bd59c0134103acdd8324aaead60d_11[1].jpg")
Widely used in: communications, consumer electronics, industrial control, security, automobiles, power supplies, smart home, medical, military and other industries.
