Substrate: FR4 KB Number of layers: 2 layers Dielectric constant: 4.2 Board thickness: 1.6mm Thickness of outer copper foil: 1oz Surface treatment method: lead-free spray tin Minimum hole diameter: 0.3mm
+86 0755-81772911
| Gold finger pcb | |||
| Substrate: | FR4 | Layers: | 6 layers |
| Dielectric constant: | 4.3 | Board thickness: | 1.6mm |
| Thickness of outer copper foil: | 1oz | Inner copper foil thickness: | 1oz |
| Surface treatment method: | Immersion gold | Minimum hole diameter: | 0.2mm |
| Minimum line width: | 0.1mm | Minimum line space: | 0.1mm |
| Application area: | Medical | Features: | Impedance board, gold finger electric thick gold, precise line width and line spacing |
| Warm reminder: Due to the particularity of the product, customized products will not be returned, please understand! | |||

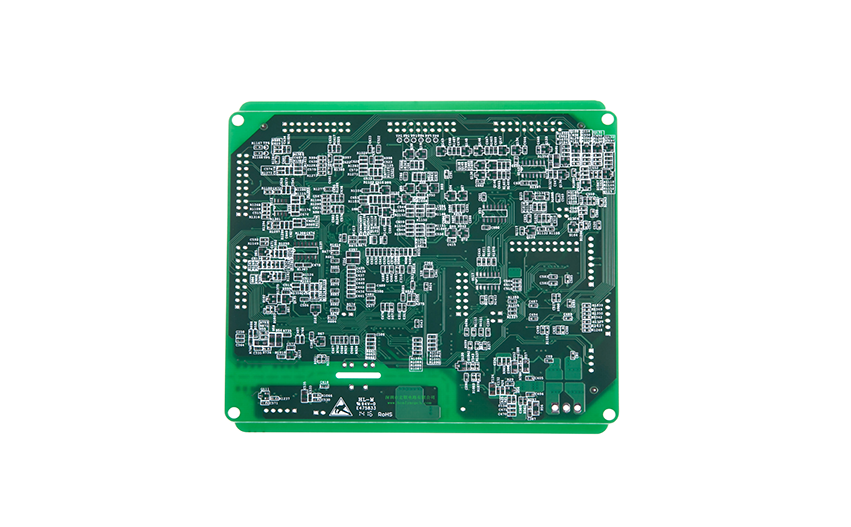

![fde2fbe115694412a3a15e3c28541924_68[1].png](/upload/default/20210202/154f8f9da685fe1f064e0e09b5a76341.png "fde2fbe115694412a3a15e3c28541924_68[1].png")
Widely used in: communications, consumer electronics, industrial control, security, automobiles, power supplies, smart home, medical, military and other industries.
QQ:343609301 E-mail:AnitaPCBA@pcb-hl.com
Add：Shayi North Yongfa Science and Technology Park, Xinhe Road, Shajing Street, Baoan District, Shenzhen
Main business: circuit board proofing circuit board proofing pcb proofing pcb circuit board multi-layer circuit board
