Material: FR4-S1000-2M Number of layers: 2 layers Process: Nickel Palladium Minimum drilling: 0.25mm Minimum line width: 0.127mm Minimum line spacing: 0.127mm Features: hole copper 25um, inspection under a microscope at 20 times does not allow the pad to be dirty
+86 0755-81772911

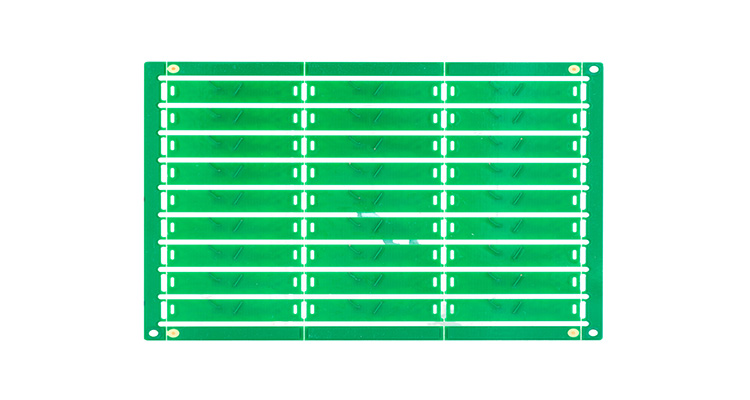

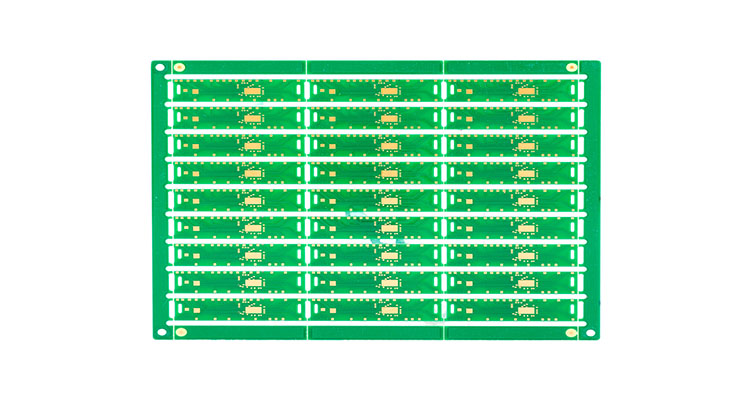

| Nickel Palladium Gold PCB | |||
| Substrate: | FR4-S1000-2M | Layers: | 2 layers |
| Dielectric constant: | 4.3 | Board thickness: | 0.8mm |
| Thickness of outer copper foil: | 1oz | hickness of inner copper foil: | / |
| Surface treatment method: | nickel palladium gold | Minimum hole diameter: | 0.25mm |
| Minimum line width: | 0.127mm | Minimum line space: | 0.127mm |
| Application areas: | Semiconductor | Features: | Hole copper 25um, 100% inspection under a hundred times microscope does not allow the pad to be dirty |
![399c3ce2e3574f76815b951c89288a24_30[1].jpg](/upload/default/20210203/523ac07c89e5ba8d8d2419a31fec5915.jpg "399c3ce2e3574f76815b951c89288a24_30[1].jpg")
![399c3ce2e3574f76815b951c89288a24_28[1].jpg](/upload/default/20210203/a1155f789db5d5be1f29bece72679b9f.jpg "399c3ce2e3574f76815b951c89288a24_28[1].jpg")
Widely used in: communications, consumer electronics, industrial control, security, automobiles, power supplies, smart home, medical, military and other industries.
