Material: FR4-S1000-2 Number of layers: 2 layers Process: Gold-plated 30U" Minimum drilling: 0.25mm Minimum line width: 0.5mm Minimum line space: 0.5mm Feature: Electric thick gold 30U", need insulation 500MΩ@500VDC, withstand voltage
+86 0755-81772911

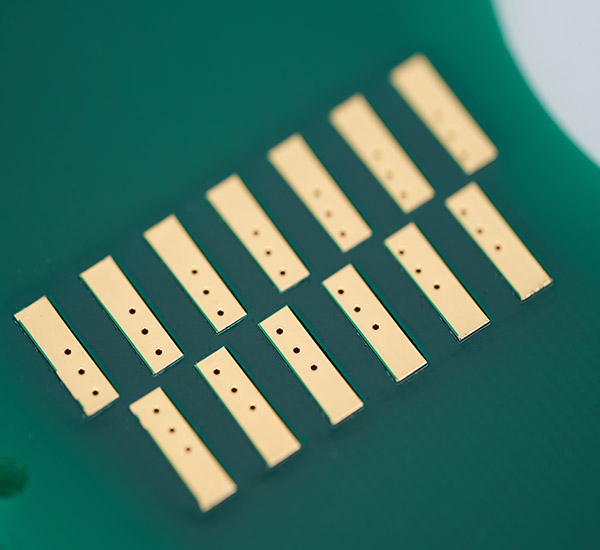

| Electric thick gold PCB | |||
| Substrate: | FR4-S1000-2 | Layers: | 2 layers |
| Dielectric constant: | 4.3 | Board thickness: | 2.0mm |
| Thickness of outer copper foil: | 1oz | hickness of inner copper foil: | / |
| Surface treatment method: | gold-plated 30U" | Minimum hole diameter: | 0.25mm |
| Minimum line width: | 0.5mm | Minimum line space: | 0.5mm |

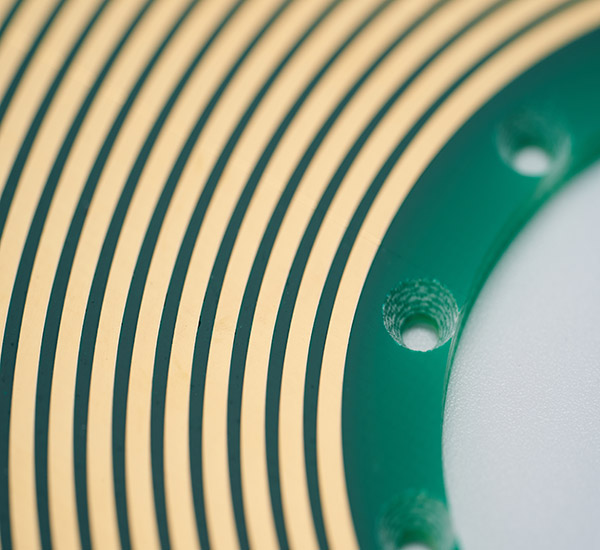

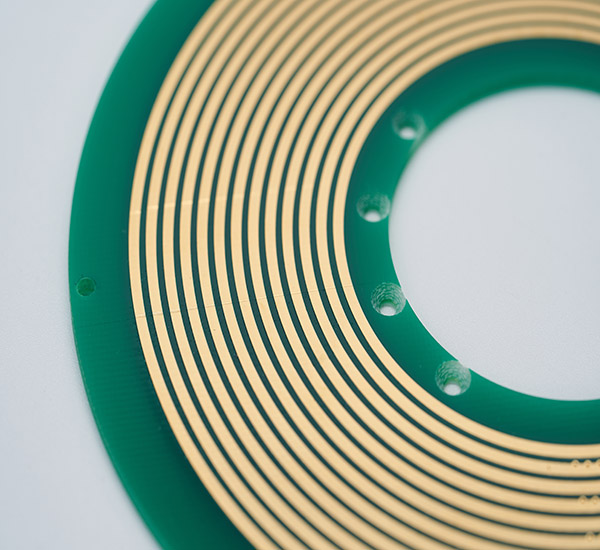

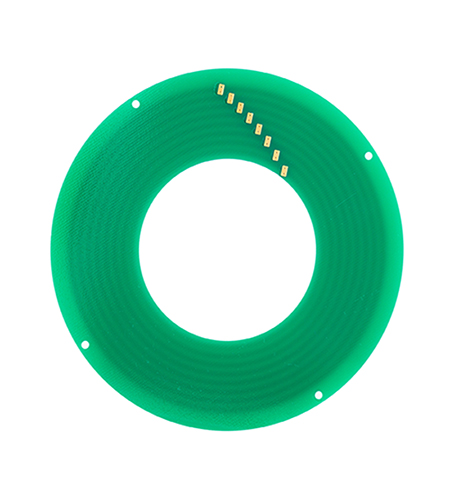

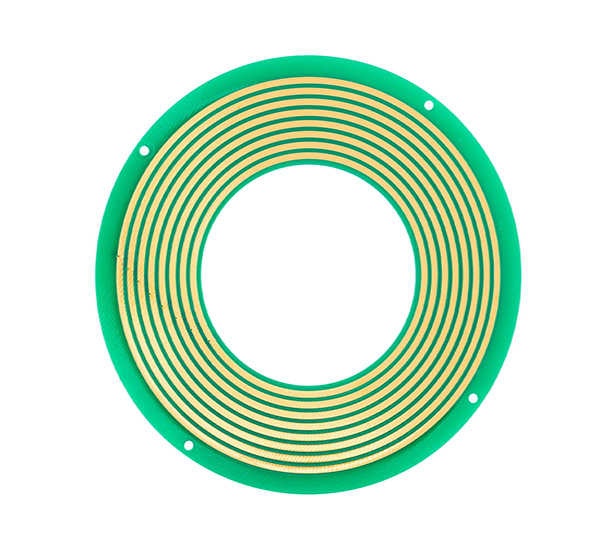

| Application areas: | slip ring | Features: | Electric thick gold 30U", need insulation 500MΩ@500VDC, withstand voltage ≥500VAC@50HZ, do not accept oil supply line |
![997820178ea04a318892641a0a70b7bb_13[1].jpg](/upload/default/20210203/4bbe229d114ad0daa6275a31add201be.jpg "997820178ea04a318892641a0a70b7bb_13[1].jpg")
![997820178ea04a318892641a0a70b7bb_11[1].jpg](/upload/default/20210203/4cd2fcb98bfdb95a5747f587f7270a22.jpg "997820178ea04a318892641a0a70b7bb_11[1].jpg")
![997820178ea04a318892641a0a70b7bb_9[1].jpg](/upload/default/20210203/ec44a2cf1216b3fbaf08fc14a88e50f4.jpg "997820178ea04a318892641a0a70b7bb_9[1].jpg")
![997820178ea04a318892641a0a70b7bb_7[1].jpg](/upload/default/20210203/fa74c8649ceba7c9d4678243fad9a02a.jpg "997820178ea04a318892641a0a70b7bb_7[1].jpg")
![399c3ce2e3574f76815b951c89288a24_10[1].jpg](/upload/default/20210203/797bb437266a568e74e35fe1209b5bcf.jpg "399c3ce2e3574f76815b951c89288a24_10[1].jpg")
![399c3ce2e3574f76815b951c89288a24_8[1].jpg](/upload/default/20210203/2ac341312791743e843ebb8038f71356.jpg "399c3ce2e3574f76815b951c89288a24_8[1].jpg")
Widely used in: communications, consumer electronics, industrial control, security, automobiles, power supplies, smart home, medical, military and other industries.
