Halogen-free PCB

Material: FR4- halogen free Number of layers: 4 layers Process: OSP Minimum drilling: 0.3mm Minimum line width: 0.127mm Minimum line space: 0.127mm Features: The whole process requires halogen-free, impedance board 【MORE】

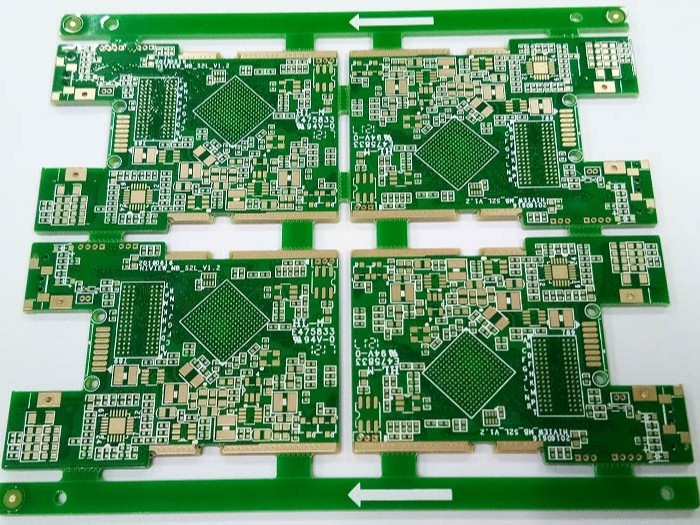

High precision impedance PCB

Material: FR4-TG170 Number of layers: 8 layers Process: Immersion Gold Minimum drilling: 0.2mm Minimum line width: 0.08mm Minimum line space: 0.08mm Features: resin plug hole, 3mil BGA clamping line, impedance board, gold finger board 【MORE】

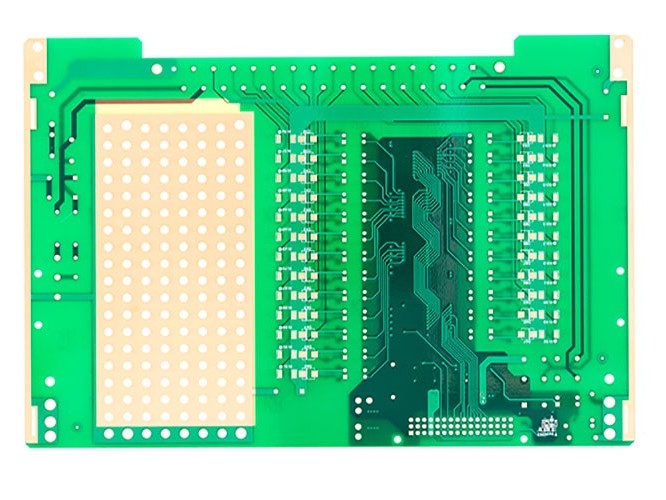

Thick copper PCB

Material: FR4 Number of layers: 12 layers Process: Immersion Gold Minimum drilling: 0.5mm Outer copper foil: 6OZ Inner copper foil: 3OZ Board thickness: 4.0mm 【MORE】

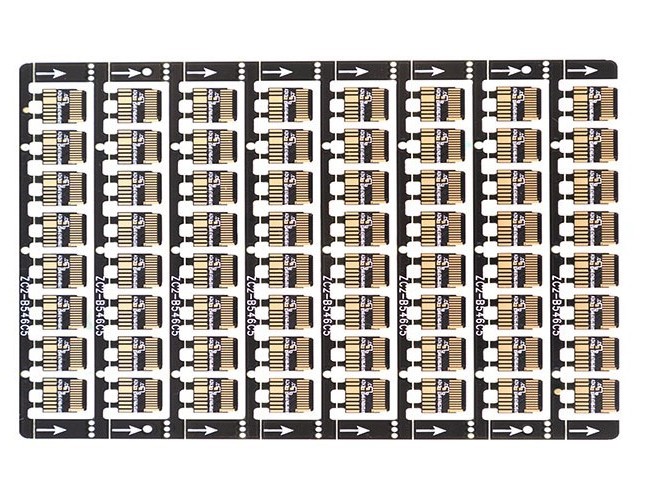

Type-C connector circuit board

Material: FR4 Number of layers: 6 layers Process: Immersion Gold Minimum drilling: 0.25mm Minimum line width: 0.1mm Minimum line space: 0.1mm Features: board thickness tolerance +/-0.05mm, size tolerance +/-0.01mm, impedance board, via plug hole 【MORE】

Type-C audio circuit board

Material: FR4 Number of layers: 4 layers Process: Immersion Gold Minimum drilling: 0.25mm Minimum line width: 0.127mm Minimum line space: 0.127mm Features: board thickness tolerance +/-0.05mm, size tolerance +/-0.01mm, impedance board 【MORE】

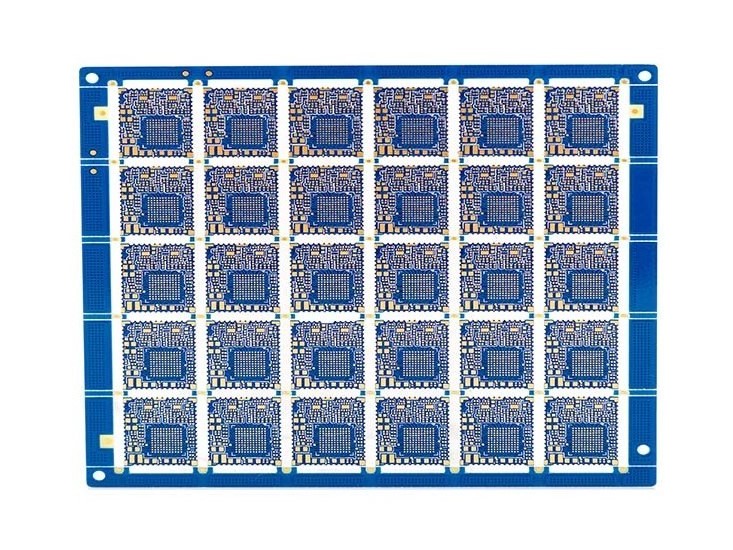

5G module circuit board

Material: FR4- halogen free Number of layers: 4 layers Process: Immersion gold & resin plug hole Minimum drilling: 0.25mm Minimum line width: 0.08mm Minimum line space: 0.08mm Features: BGA clamping wire 3mil, half hole board, resin plug hole, halogen-free, hole copper 25um impedance board 【MORE】

Grid control circuit board

Material: FR4-S1141 Number of layers: 4 layers Process: Immersion Gold Minimum drilling: 0.25mm Minimum line width: 0.127mm Minimum line space: 0.127mm Features: hole copper 25um, does not accept oil and line, requires stable performance 【MORE】

Security circuit board

Material: FR4 Number of layers: 6 layers Process: Immersion Gold Minimum drilling: 0.25mm Minimum line width: 0.1mm Minimum line space: 0.1mm Features: hole copper 25um, repair is not accepted 【MORE】

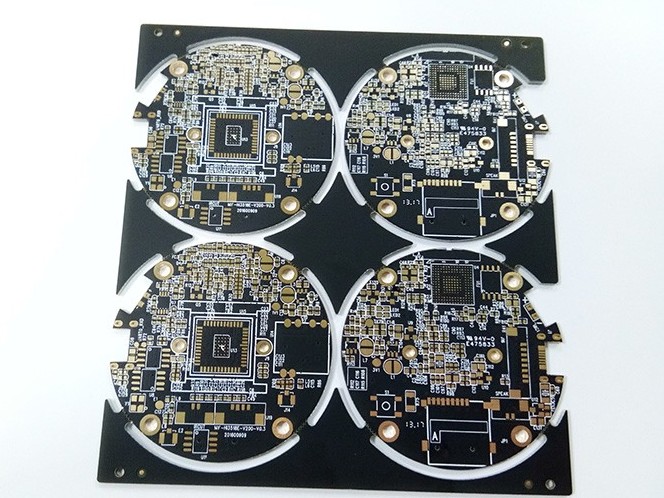

Security camera pcb

Material: FR4 Number of layers: 4 layers Process: Immersion Gold Minimum drilling: 0.25mm Minimum line width: 0.127mm Minimum line space: 0.127mm Features: hole copper 25um, repair is not accepted 【MORE】
