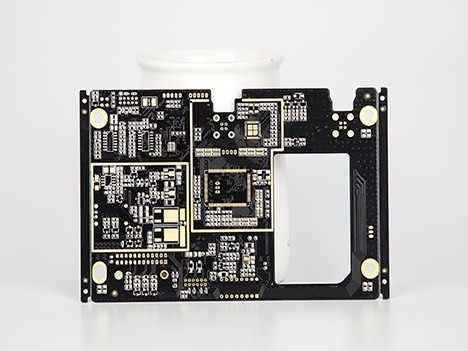

Medical blood pressure monitor circuit board

Material: FR4 Number of layers: 4 layers Process: Immersion Gold Minimum drilling: 0.2mm Minimum line width: 0.127mm Minimum line space: 0.127mm Application areas: blood pressure monitors, home medical products 【MORE】

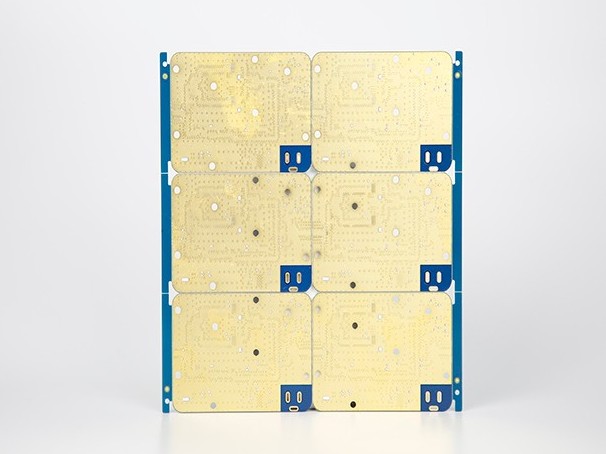

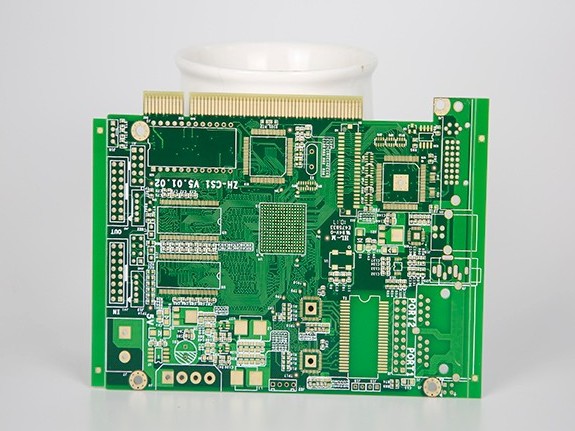

High precision gold finger circuit board

Material: FR4 Number of layers: 8 layers Process: Immersion Gold Minimum drilling: 0.2mm Minimum line width: 0.1mm Minimum line space: 0.1mm Features: impedance requirements, electric gold fingers, precise wiring 【MORE】

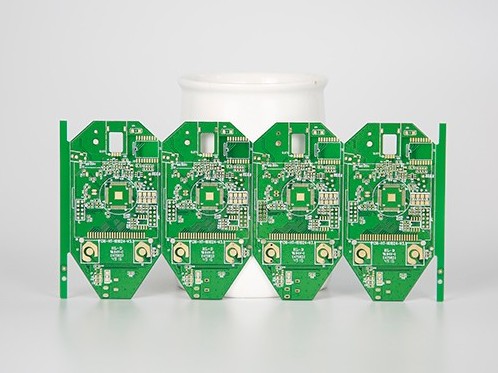

Medical blood pressure monitor PCB

Material: FR4 Number of layers: 6 layers Process: Immersion Gold Minimum drilling: 0.2mm Minimum line width: 0.127mm Minimum line space: 0.127mm Features: Strict appearance requirements 【MORE】

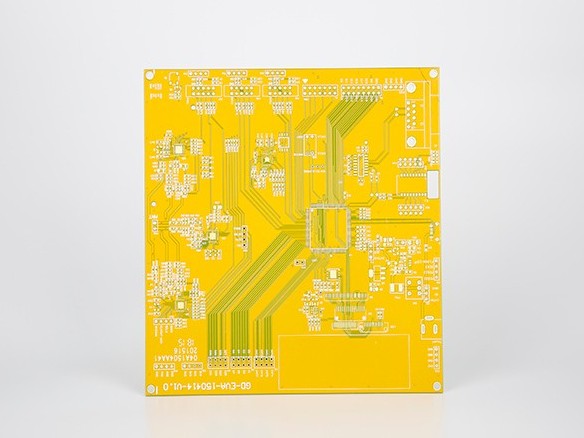

Industrial control circuit board

Material: FR4 Number of layers: 6 layers Process: Immersion Gold Minimum drilling: 0.2mm Minimum line width: 0.127mm Minimum line space: 0.127mm Features: Strict appearance requirements 【MORE】

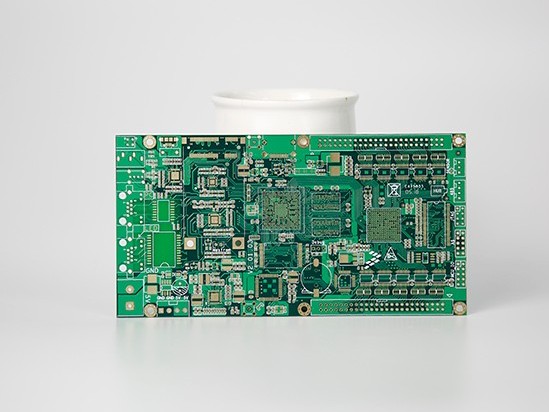

Car navigator circuit board

Material: FR4 Number of layers: 4 layers Process: Immersion Gold Minimum drilling: 0.2mm Minimum line width: 0.127mm Minimum line space: 0.127mm Features: Strict appearance requirements 【MORE】

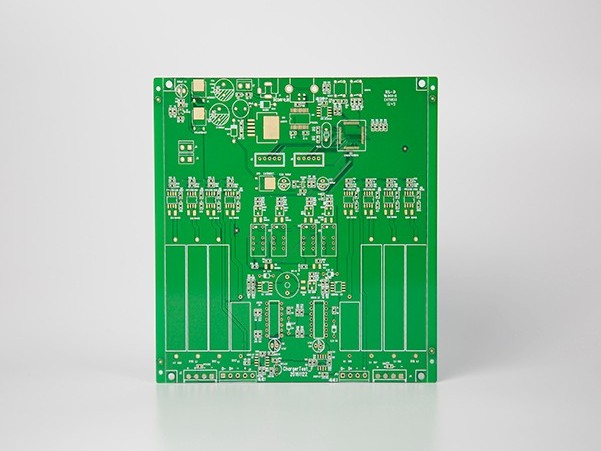

Industrial control circuit board

Material: FR4 Number of layers: 6 layers Process: Immersion Gold Minimum drilling: 0.2mm Minimum line width: 0.127mm Minimum line space: 0.127mm Features: Strict appearance requirements, oil replenishment line is not accepted, special control panel warping 【MORE】

High precision circuit board

Material: FR4-TG170 Number of layers: 8 layers Process: Immersion Gold Minimum drilling: 0.2mm Minimum line width: 0.085mm Minimum line space: 0.085mm Features: high precision circuit board, inner hole to line 0.16mm, need to control impedance 【MORE】

Communication circuit board

Material: FR4-S1141 Number of layers: 4 layers Process: Immersion Gold Minimum drilling: 0.3mm Minimum line width: 0.2mm Minimum line space: 0.2mm Features: Need to control the impedance, the area of immersion gold is super-conventional, and the plate needs raw materials 【MORE】

Industrial Control PCB

Material: FR4 Number of layers: 4 layers Process: Immersion Gold Minimum drilling: 0.2mm Minimum line width: 0.15mm Minimum line space: 0.15mm Features: matt green ink, strict appearance requirements 【MORE】
