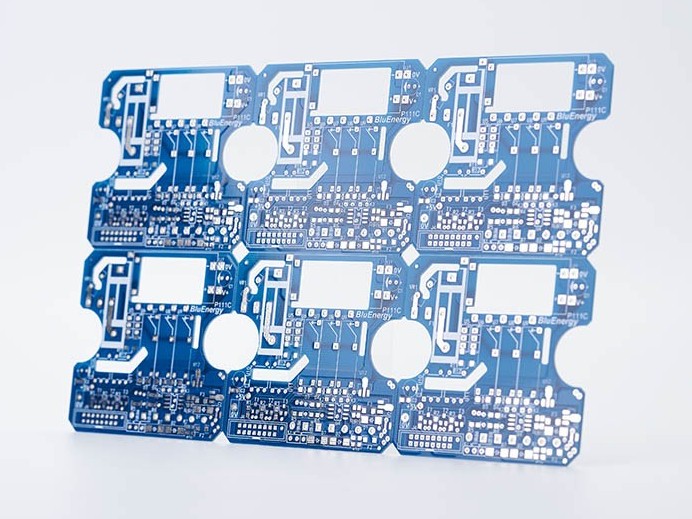

Double-sided blue oil board

Material: FR4 Board thickness: 1.6mm Number of layers: 2 layers Process: lead-free tin spray Minimum drilling: 0.3mm Minimum line width: 0.127mm Minimum line space: 0.127mm 【MORE】

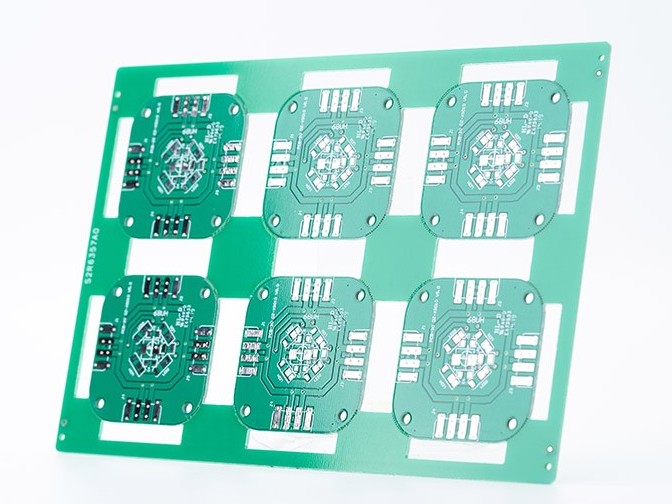

Double-sided spray tin plate

Material: FR4 Board thickness: 1.6mm Number of layers: 2 layers Process: Lead-free spray tin Minimum drilling: 0.3mm Minimum line width: 0.127mm Minimum line space: 0.127mm Features: green oil board, aperture and size 【MORE】

Thin PCB

Material: FR4 Board thickness: 0.3mm Number of layers: 2 layers Process: Immersion Gold Minimum drilling: 0.3mm Minimum line width: 0.127mm Minimum line space: 0.127mm Features: ultra-thin board, single-sided V cut, 【MORE】

White oil shaped board

Material: FR4 Number of layers: 2 layers Process: Lead-free spray tin Minimum drilling: 0.3mm Minimum line width: 0.127mm Minimum line space: 0.127mm Features: white oil board, irregular shape, no scratches, no scratches 【MORE】

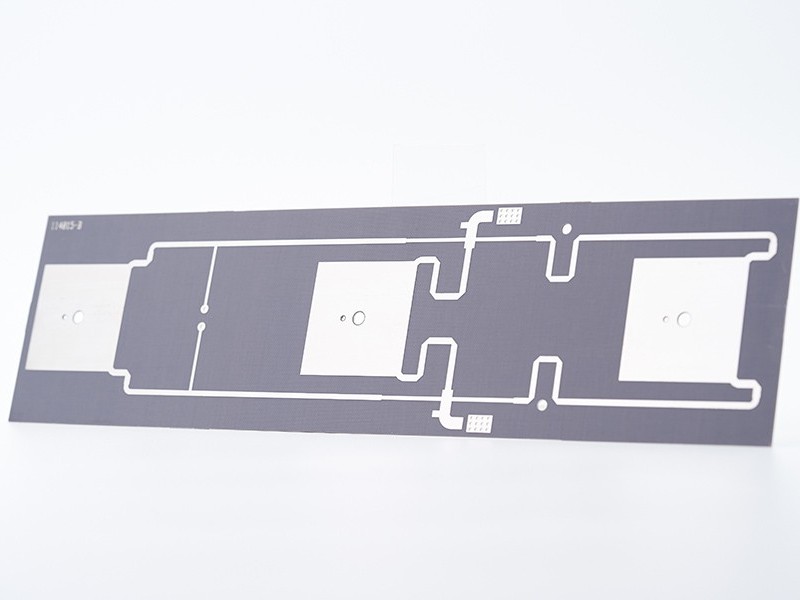

High frequency board

Material: FJ255A 30MIL Number of layers: 2 layers Process: Tin Shen Min drilling hole: 0.5mm Minimum line width: 0.5mm Minimum line space: 0.5mm Features: high-frequency board, no scratches, no scratches 【MORE】

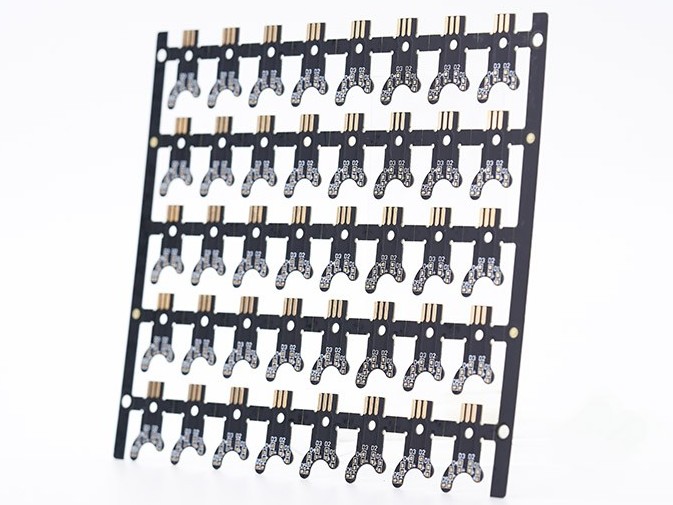

Carbon oil PCB

Material: FR4 Number of layers: single side Process: OSP+Carbon oil Minimum drilling hole: 0.3mm Minimum line width: 0.3mm Minimum line space: 0.3mm Features: halogen-free carbon oil board 【MORE】

Nickel Palladium Gold PCB

Material: FR4-S1000-2M Number of layers: 2 layers Process: Nickel Palladium Minimum drilling: 0.25mm Minimum line width: 0.127mm Minimum line spacing: 0.127mm Features: hole copper 25um, inspection under a microscope at 20 times does not allow the pad to be dirty 【MORE】

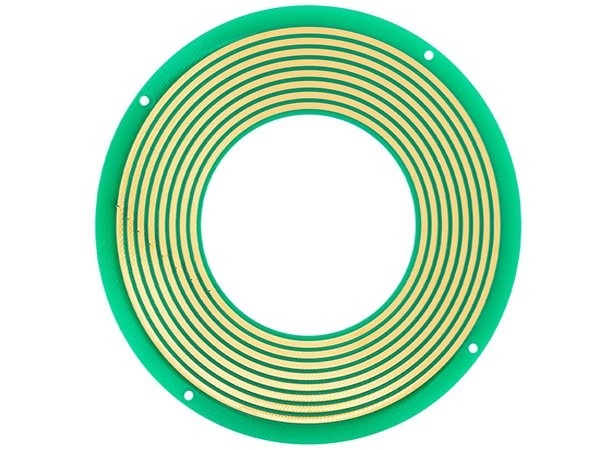

Electric thick gold PCB

Material: FR4-S1000-2 Number of layers: 2 layers Process: Gold-plated 30U" Minimum drilling: 0.25mm Minimum line width: 0.5mm Minimum line space: 0.5mm Feature: Electric thick gold 30U", need insulation 500MΩ@500VDC, withstand voltage 【MORE】

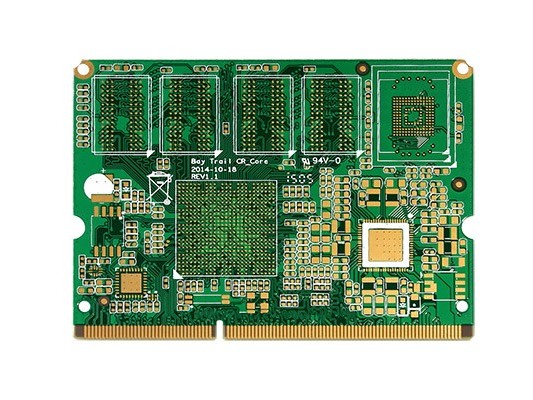

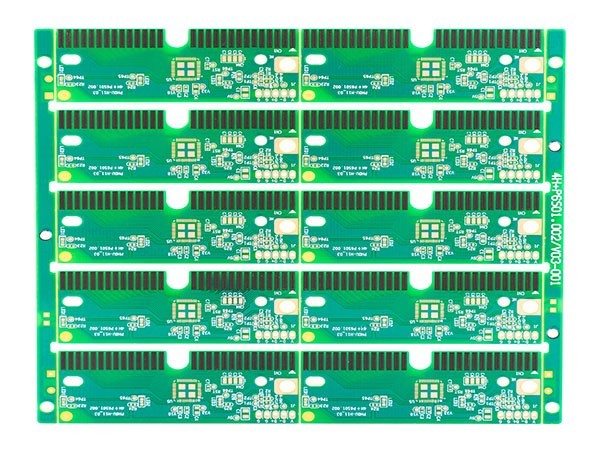

Gold finger pcb

Material: FR4 Number of layers: 6 layers Process: Immersion Gold Minimum drilling: 0.2mm Minimum line width: 0.1mm Minimum line space: 0.1mm Features: impedance board, gold finger electric thick gold, precise line width and line spacing 【MORE】
