Memory PCB

Material: FR4 Number of layers: 2 layers Process: Immersion Gold Minimum drilling hole: 0.25mm Minimum line width: 0.1mm Minimum line space: 0.1mm Features: hole copper 25um, gold fingers need beveled edges, and black oil bridges need to be retained 【MORE】

Rogers Circuit Board

Material: RO4350B Number of layers: 2 layers Process: Immersion Gold Minimum drilling: 0.3mm Minimum line width: 0.3mm Minimum line space: 0.3mm Features: sheet RO4350B 【MORE】

HDMI circuit board

Material: FR4 Number of layers: 6 layers Process: Immersion Gold Minimum drilling: 0.25mm Minimum line width: 0.1mm Minimum line space: 0.1mm Features: Impedance gold plate, size tolerance +/-0.1mm, USB card slot position tolerance is strict, via hole 【MORE】

Control board motherboard

Material: FR4 Number of layers: 6 layers Process: Immersion Gold Minimum drilling: 0.3mm Minimum line width: 0.127mm Minimum line space: 0.127mm Features: impedance board, high reliability 【MORE】

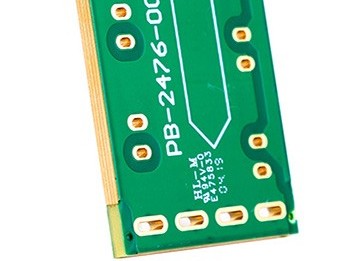

Gold Finger PCB

Material: FR4 Number of layers: 4 layers Process: Immersion Gold Minimum Drilling: 0.2mm Minimum line width: 0.1mm Minimum line space: 0.1mm Features: gold finger, impedance board, gold finger needs bevel 【MORE】

Multilayer Immersion Gold Circuit Board

Material: FR4 Number of layers: Four layers Process: Immersion gold Minimum drilling: 0.25mm Minimum line width: 0.127mm Minimum line space: 0.127mm Features: Four-layer impedance board, non-inductive scratching is not accepted, strict appearance requirements 【MORE】

Four-layer gold finger circuit board

Material: FR4 Number of layers: four layers Process: Immersion Gold Minimum drilling: 0.2mm Minimum line width: 0.1mm Minimum line spacing: 0.1mm Features: Four-layer impedance board, gold finger, card slot tolerance +/-0.05mm, no inductive scratching is not accepted 【MORE】

High precision impedance PCB

Material: FR4-TG170 Number of layers: 8 layers Process: Immersion Gold Minimum Drilling: 0.2mm Minimum line width: 0.08mm Minimum line space: 0.08mm Features: resin plug hole, 3mil BGA clamping line, impedance board, gold finger board 【MORE】

Thick copper PCB

Material: FR4 Number of layers: 12 layers Process: Immersion Gold Minimum drilling: 0.5mm Outer copper foil: 6OZ Inner copper foil: 3OZ Board thickness: 4.0mm 【MORE】
